CSD1300 Water Well Drilling Rig 1300M Depth 400HP

Name: CSD1300 Water Well Drilling Rig 1300M Depth 400HP
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CSD1300
Price: 12 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CSD1300
MOQ:	1 Set
Price:	USD12,000/ Set
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	10Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Certification:

Rotation Torque(Reverse/ Forward):

12000-24000NM

Power:

400HP

Net Weight:

24T

Drilling Method:

DTH& Mud Rotary

Lifting Force Of Hoist:

2.5+4T

Length Of Steel Rope:

40M

Feed Stroke:

6600MM

Shipping Dimension:

11600*2550*3650MM

Max. Drilling Depth:

1300M

Packaging Details:

Shipping Dimension: 11600*2550*3650mm

Supply Ability:

10Sets Per Month

Highlight:

400HP water well drilling rig

1300M depth drilling rig

CSD1300 water well rig

Product Description

CSD1300 Deep Mud And Air Down The Hole Water Well Drilling Rig

Attribute	Value
Rotation Torque(Reverse/ Forward)	12000-24000NM
Power	400HP
Net Weight	24T
Drilling Method	DTH& Mud Rotary
Lifting force of hoist	2.5+4T
Length of Steel Rope	40M
Feed Stroke	6600MM
Shipping Dimension	1160025503650MM
Max. Drilling Depth	1300M

Product Description

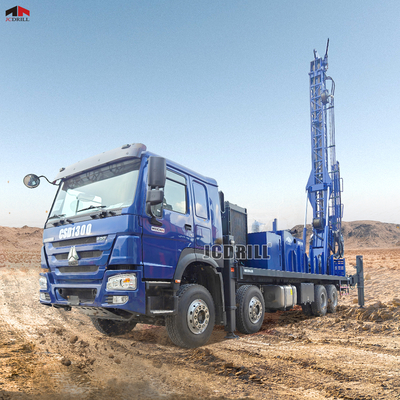

The CSD1300 is a high-performance, hydraulic-powered pneumatic drilling machine engineered for extreme depths, rugged formations, and maximum efficiency. Designed with precision and built to conquer, this truck-mounted deep water well drilling rig reaches depths up to 1300 meters with torque output up to 24,000 Nm, giving you unrivaled capability in DTH and mud rotary applications.

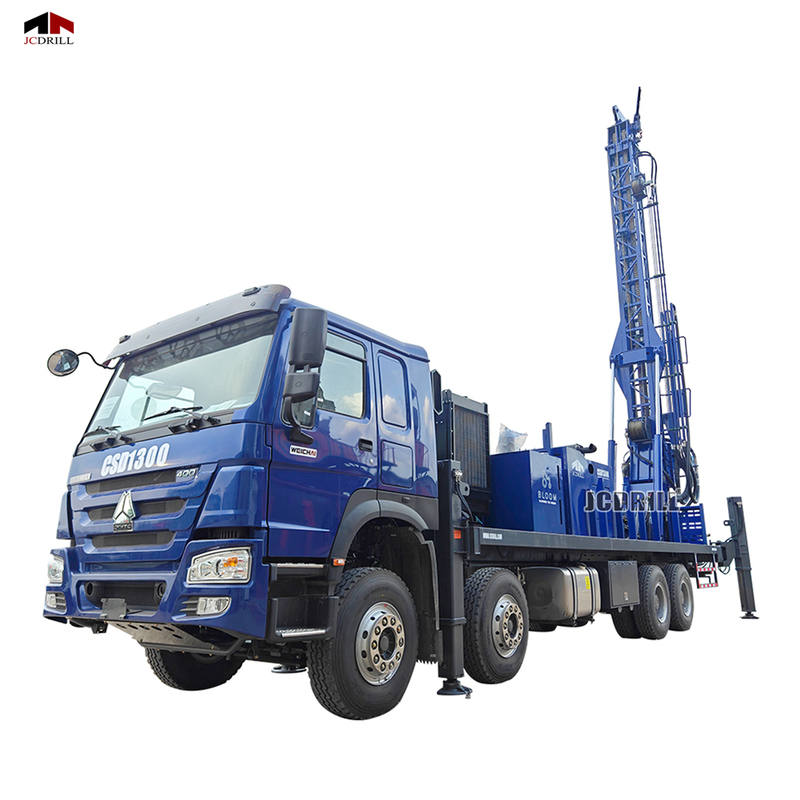

Featuring a Cummins 360HP diesel engine mounted on a robust 8x4 SINOTRUCK HOWO chassis, the CSD1300 is purpose-built for challenging terrains and long-haul durability. From remote villages to industrial construction zones, this rig transforms any site into a fully-equipped, self-contained drilling station - complete with generator setup, hydraulic-controlled tower, winches, and a BW1500/12 high-pressure mud pump.

Technical Parameters

Specification	Unit	CSD1300
Geology Drilled	All Kinds(DTH& Mud Rotary)
Operation System	Hydraulic
Hole Diameter	MM	105-900
Hole Depth	M	1300
Rotation Torque	NM	12000-24000
Rotation Speed	Rpm	80-140
Drill Pipe Diameter	MM	89/102/114/127
Drill Pipe Length	MM	6000
Feed Stroke	MM	6600
Winch Lifting Force of Hoist	Ton	2.5+4
Diesel Engine Type	CUMMINS
Rated Horse Power	HP	360
Speed	RPM	2200
Truck Manufacturer	SINOTRUCK HOWO
Rated Horse Power	HP	400
Discharge Standard	EU-2
Drive Type	8*4
Max. Speed	KM/h	102.9
Steering Wheel	Left/ Right(Optional)
Mud Pump Type	Diesel Engine
Model	BW1500/12
Displacement	L/MIN	1500
Net Weight	Ton	24
Shipping Dimension	MM	1160025503650

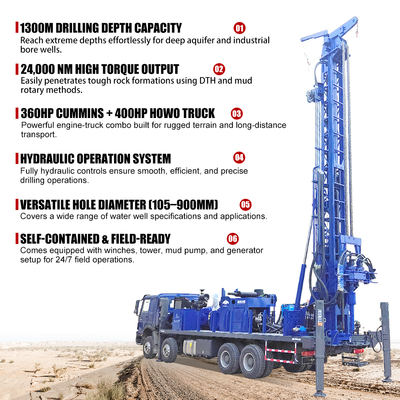

Key Features

1300m Maximum Depth - Power through deep aquifers and demanding geological layers

Hydraulic Drive System - Smooth, efficient, and fully controllable operations
High Rotation Torque (24,000 Nm) - Penetrates the hardest rock with ease

360HP Cummins Engine + 400HP HOWO Truck - Raw power meets road-ready reliability
Wide Hole Diameter (105-900mm) - Adaptable for diverse well specifications
Main + Tool Winches Included - 2.5T and 4T lifting for casings and tooling
Built-in Generator Capability - Perfect for night work and field welding
EU-2 Emissions Compliant - Eco-aware performance meets global standards

Applications

Agricultural & Irrigation Water Wells - Ensure reliable groundwater for farms and rural development
Construction & Geotechnical Exploration - Pre-foundation and soil investigation
Industrial Water Supply Projects - Large-scale borehole drilling with high flow demand
Remote Area Drilling - Self-contained mobile rig for hard-to-reach or off-grid areas
Municipal Water Infrastructure - High-capacity wells for town or city supply systems

Frequently Asked Questions

Q1: What geological formations can this rig handle?

A: The HydroForce CSD1300 is suitable for all formations, including hard rock, mudstone, and weathered layers via DTH and mud rotary drilling modes.

Q2: Can it be operated at night or in low-light conditions?

A: Yes! You can set up a generator for nighttime lighting or even field welding, making 24/7 operation possible.

Q3: Is the rig fully hydraulic?

A: Yes, the rig uses a hydraulic main drive, with hydraulic-controlled tower, landing legs, transfer case, and mud pump clutch system - making operation highly efficient.

Q4: What is the pulling force capacity?

A: The pulling capacity is 61 tons, while the push-down force is 6 tons, ideal for deep and complex well projects.

Q5: Is the rig easy to transport?

A: Mounted on a SINOTRUCK HOWO truck (8x4), it's fully mobile and highway-ready, ensuring hassle-free deployment to any site.

Q6: How big is the rig?

A: It has a shipping dimension of 11600×2550×3650 mm and weighs 24 tons.
