Product Details:
|
| Geology Drilled: | All Kinds | Drilling Type: | DTH & Mud Rotary |
|---|---|---|---|
| Drill System And Operation: | Hydraulic | Hole Diameter: | 90-325mm |
| Hole Depth: | 200m | Rotation Torque: | 4800Nm |
| Rotation Speed: | 0-102rpm | ||
| High Light: | 200 water well drilling rig machine,DTH water well drilling rig machine,Multifunctional water well drilling rig machine |
||

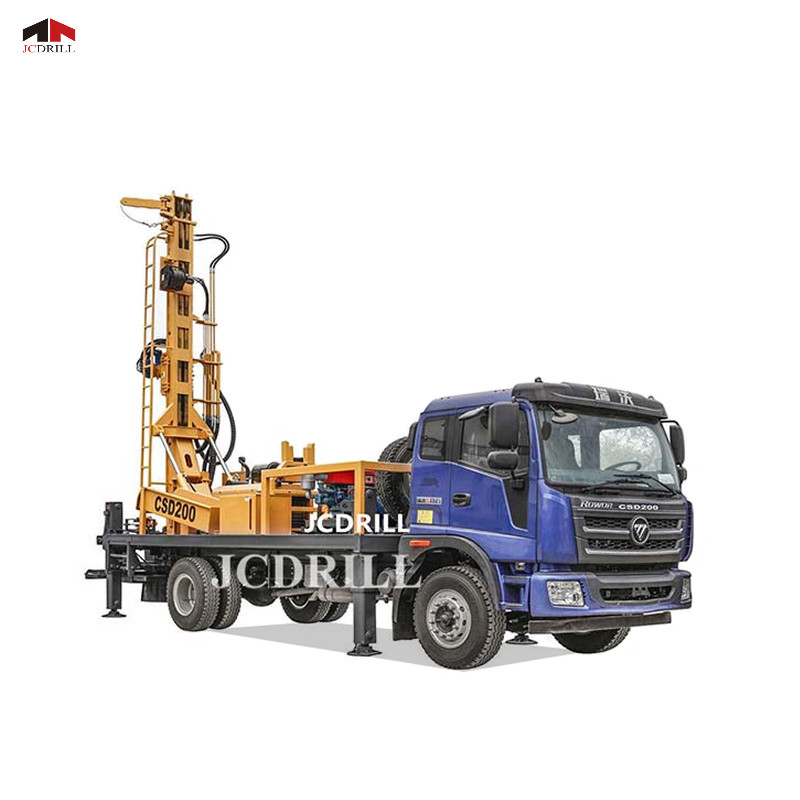

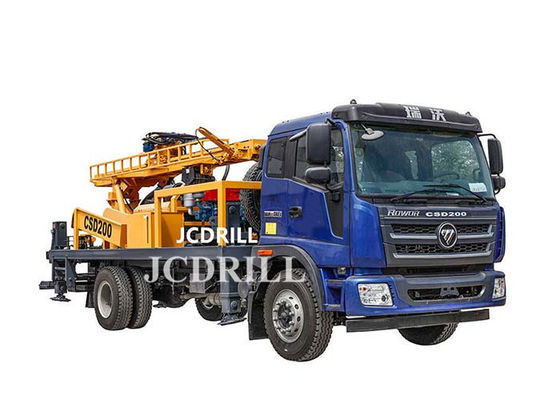

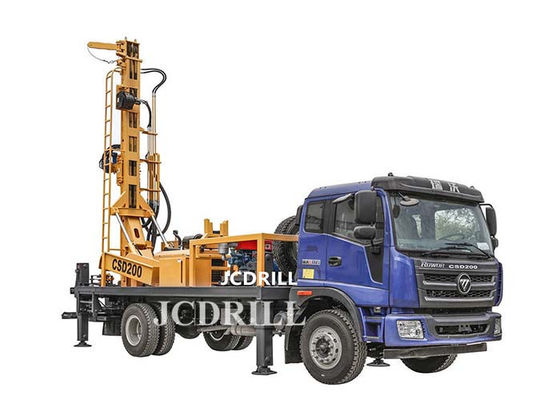

CSD200 Water Well Drilling Rigs for 200 Depth
CSD200 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90—Φ325 |
| 5 | Hole Depth | m | 200 |
| 6 | Rotation Torque | Nm | 4800 |
| 7 | Rotation Speed | rpm | 0-102 |
| 8 | Drill pipe diameter | mm | 76,89,102,114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Max. Lifting force | Ton | 12 |
| 11 | Max. Feed Speed | M/min | 18 |
| 12 | Feed Stroke | mm | 3400 |
| Winch | |||
| 13 | Lifting force of hoist | T | 0.8 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| Engine | |||
| 15 | Diesel Engine type | Yuchai | |
| 16 | Rated Horse power | Kw | 81 |
| 17 | Electrical System | V | 24 |
| Compressor required(Optional) | |||
| 18 | Compressor Type | Rotary Screw/Movable | |
| 19 | Pressure Required | Mpa | 1.2—3.0 |
| 20 | Air consumption | m³/min | 11—35 |
| Truck | |||
| 21 | Manufacturer | Foton Aoling | |
| 24 | Rated Horse power | HP | 168 |
| 25 | Discharge Standard | EU-5 | |
| 26 | Drive type | 4X2 | |
| 27 | Max.Speed | Km/h | 95 |
| 28 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 29 | Type | Hydrulic | |
| 30 | Model | BW450 | |
| 31 | Stroke | mm | 110 |
| 32 | Displacement | L/Min | 450 |
| 33 | Discharge pressure (Mpa) | Mpa | 5 |
| 34 | Suction tube diameter | mm | 89 |
| 35 | Discharge pipe diameter | mm | 51 |
| 36 | Liner Diameter | mm | 80 |
| Dimension | |||
| 37 | Net Weight | Kg | 10800 |
| 38 | Shipping Length | mm | 9100 |
| 39 | Shipping Width | mm | 2550 |
| 40 | Shipping Height | mm | 3400 |
