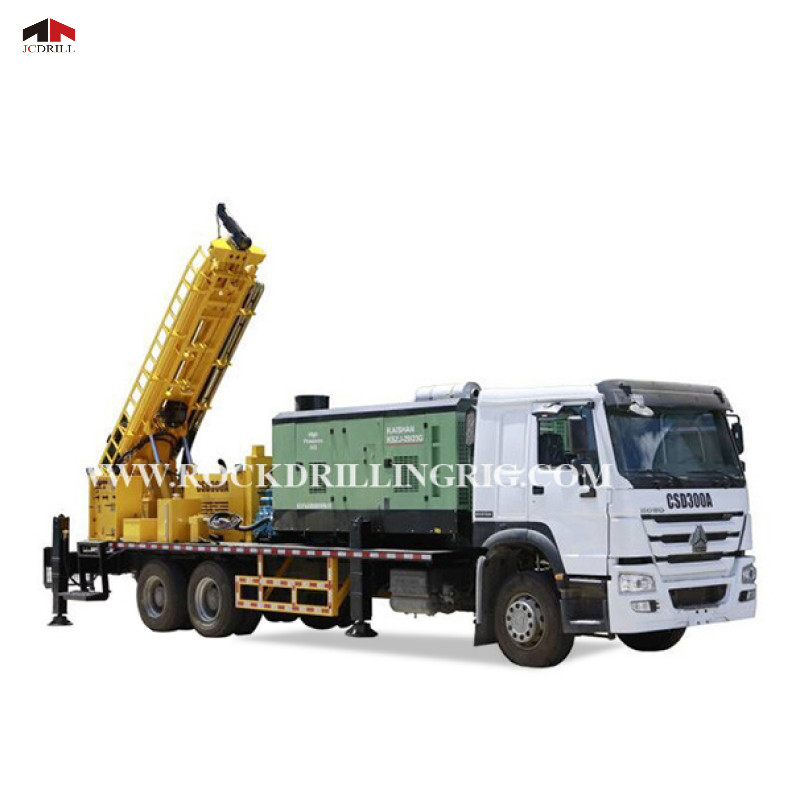

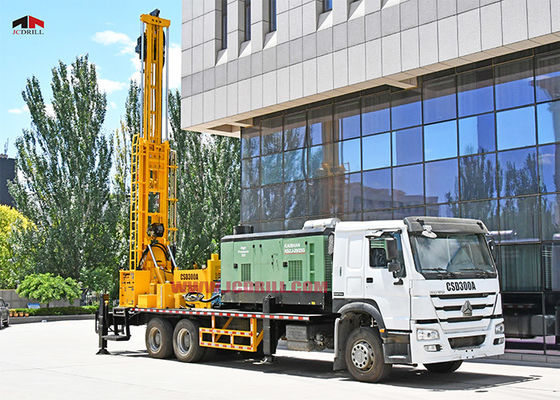

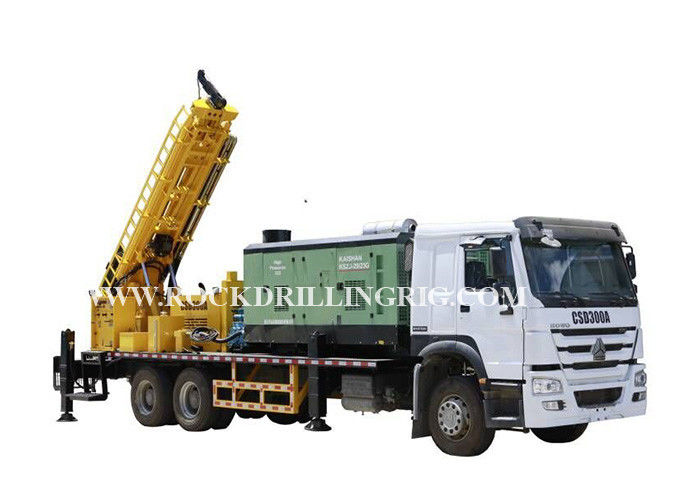

Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4

Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4
Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4 Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4

Large Image :  Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD300A 6X4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: Bulk Ship and 20GP container
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 set per year

Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4

Type: 6 X 4 Truck Water Well Drilling Rig With Air Compressor Drilling Depth: 300m
Drilling Diameter: 140-450mm Drilling Method: Mud Rotary And Air DTH
Warranty: One Year Drill Pipe Length: 3m /4.5m
Drill Pipe Diameter: 89 / 102 /114mm Power Type: Diesel
Usage: Water Well Product Name: Combined Truck Water Well Drilling Rig
Condition: New Power(w): 93KW
High Light:

dth water well drilling rig machine


dth hydraulic water well drilling rig


6 x 4 hydraulic water well drilling rig

China Truck Mounted Water Well Drilling Rig DTH drilling rig CSD300A



CSD300A is a new, efficient, multifunctional hydraulic truck mounted telescoping mast well drilling rig, mainly applicable to the drilling process of water wells, monitoring wells and geothermal wells, etc. Features are as belows:
1.When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional mud rotary drilling rigs.
2.The rig is able to handle casing size up to 6 meters.
3.In loose layer, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility is suiting all kinds of complex geological conditions.
4.Air compressor is mounted on the truck drilling machine, well received by marketing.


1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary
time and enhance the work efficiency.

3. The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK HOWO and the main drive system, the transfer case, gearbox,
double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW250/BW450(Optional) mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a Yuchai engine,92kw Yuchai or CUMMINS engine(optional) drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-102rpm stepless adjustment and the rotary torque is 4500-8500Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.

9.  Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.  The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. Air compressor is mounted on the drilling machine t

11. Competitive in price, low cost of maintain.

Truck Mounted Dth Hydraulic Water Well Drilling Rig Machine 6 X 4 0

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 3200 1st Gear
4500 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-100 2nd Gear
8 Drill pipe diameter mm 76/89/102/114
9 Drill pipe length mm 3000
10 Max. Lifting force N 10000
11 Max. Feed Speed m/min 18
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 93
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
22 Manufacturer   SINOTRUK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power KW 245
26 Discharge Standard   EU-3
27 Drive type   6*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left
Mud Pump
30 Type   Hydraulic
31 Model   BW450/BW250
32 Stroke mm 110
33 Displacement L/Min 450/250
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
46 Generator   Optional
46 Net Weight T 25
47 Shipping Length mm 12500
48 Shipping Width mm 2480
49 Shipping Height mm 3050
50 Working size(L*W*H) mm 12500*2480*7147

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
