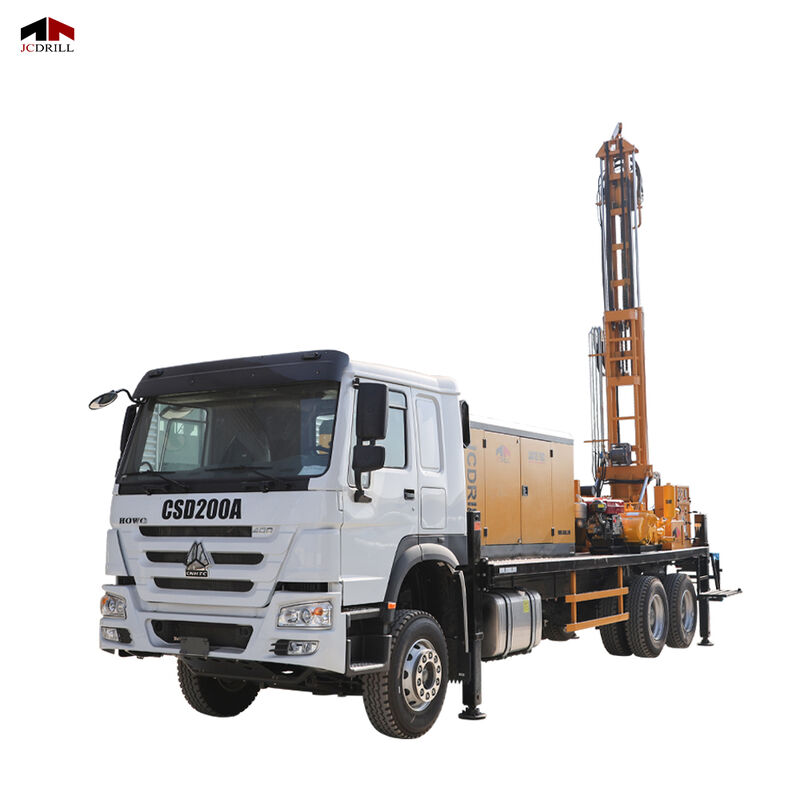

SINOTRUK HOWO Truck Mounted Air Compressor Integrated Hydraulic Water Well Drilling Rig

Name: SINOTRUK HOWO Truck Mounted Air Compressor Integrated Hydraulic Water Well Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CSD200A
Price: 120000.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CSD200A
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	10Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Certification:

Rotation Torque(Reverse/ Forward):

4800-6500NM

Power:

58kW

Net Weight:

20T

Drilling Method:

DTH& Mud Rotary

Shipping Dimension:

11700*2550*3640MM

Max. Drilling Depth:

200M

Drill Pipe Length:

3000/4500/6000mm

Drill Pipe Diameter:

89/102/114mm

Packaging Details:

Shipping Dimension: 11700*2550*3640mm

Supply Ability:

10Sets Per Month

Product Description

CSD200A Multi-Functional Truck Mounted Water Well Drilling Rig is a high-efficiency, full-hydraulic drilling solution designed for deep and complex geological conditions. Mounted on a SINOTRUK HOWO heavy-duty truck chassis, it combines mobility, power, and versatility in one compact system.

The rig is capable of drilling in soft formations using mud rotary drilling and hard rock formations using air DTH hammer drilling. Equipped with a powerful hydraulic rotary head with high torque, the CSD200A delivers fast penetration speed, stable operation, and excellent drilling performance.

With the JAC18 air compressor and BW450 mud pump integrated on the truck, the rig supports both air and mud circulation systems, enabling seamless switching between different drilling methods. It is widely used for water well drilling, geological exploration, geothermal wells, and foundation engineering projects worldwide.

Parameter:

SPC.	Unit	CSD200A
Geology Drilled	All Kinds (DTH & Mud Rotary)
Operation System	Hydraulic
Hole Diameter	MM	Φ140–480
Hole Depth	M	200
Rotation Torque	NM	4800–6500
Rotation Speed	RPM	60–125
Drill Pipe Diameter	MM	89 / 102 / 114
Drill Pipe Length	MM	3000 / 4500 / 6000
Max. Pull Back Capacity	T	12
Max. Push Down Capacity	T	5
Net Weight	T	20
Shipping Dimension	MM	11700 × 2550 × 3640
Engine
Diesel Engine Type	Yunnei
Rated Horse Power	kW	58
Compressor (On Board)
Type	Rotary Screw
Pressure	Bar / PSI	17 / 260
Air Consumption	m³/min / CFM	18 / 635
Truck
Manufacturer	Sinotruk HOWO
Drive Type	6×4
Mud Pump Model	BW250

Features:

Reliable Truck Platform
Mounted on SINOTRUK HOWO 6×4 special crane chassis
Strong load capacity, excellent road adaptability
Ideal for long-distance transport and remote job sites

Powerful Hydraulic Rotary Head
Stepless adjustable rotation speed: 0–125 rpm
High rotary torque: 4800–6500 Nm
Strong pulling force, suitable for deep hole drilling

Air & Mud Dual Drilling System
JAC18 air compressor integrated on the truck
BW450 mud pump for mud rotary drilling
Supports air DTH hammer, mud drilling, rotary and impact drilling

Easy & Efficient Operation
Centralized control console for all drilling operations
Fast lifting and pulling system reduces auxiliary time
High automation level, lower labor intensity

Strong Power & Stability
Powered by 58kW diesel engine
High-pressure plunger pump for stable and continuous output
Reliable performance under harsh working conditions

Applications:

Water well drilling (industrial & agricultural)
Geological exploration
Geothermal well drilling
Foundation and piling projects
National defense and infrastructure construction

FAQs:

Q1: What drilling methods does the CSD200A support?
A: Mud rotary drilling, air DTH hammer drilling, rotary drilling, and impact drilling.

Q2: What truck chassis is used?
A: SINOTRUK HOWO 6×4 heavy-duty truck chassis.

Q3: Are the air compressor and mud pump installed on the truck?
A: Yes. Both are fully integrated on the truck.

Q4: Is the rig suitable for deep water well drilling?
A: Yes, it is designed for deep and complex drilling conditions.

Q5: Is the machine easy to operate?
A: Yes. Centralized control ensures simple and efficient operation.
