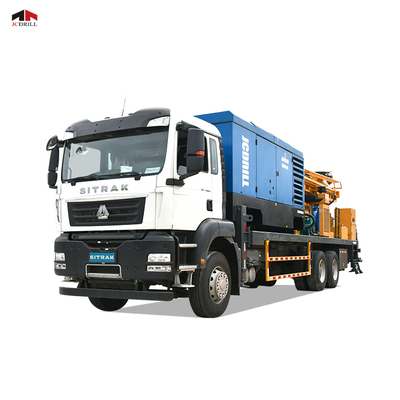

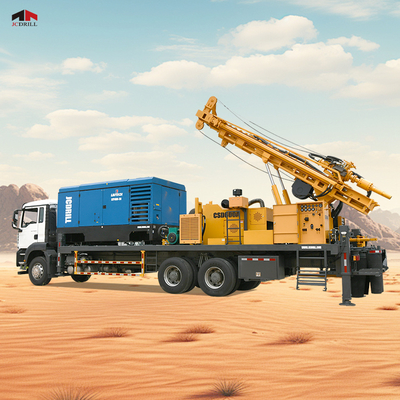

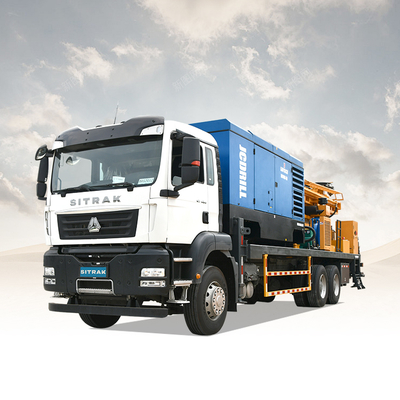

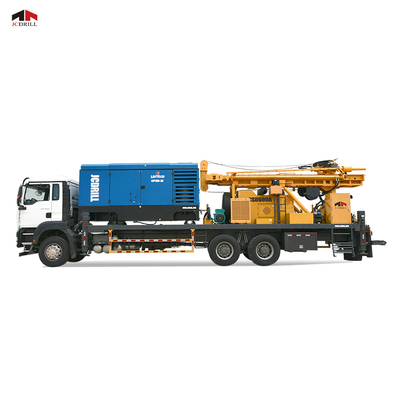

SINOTRUCK Mounted Deep Water Well Truck Chassis Drilling Rig With Air Compressor Integrated

Name: SINOTRUCK Mounted Deep Water Well Truck Chassis Drilling Rig With Air Compressor Integrated
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CSD600A 6 X 4
Price: 120000.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CSD600A 6 X 4
MOQ:	1 set
Price:	Negotation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 set per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Type:

6 X 4 Combined Truck Water Well Drilling Rig

Drilling Depth:

600m

Drilling Diameter:

140-450mm

Drilling Method:

Mud Rotary And Air DTH

Warranty:

12 Months

Drill Pipe Length:

4m /4.5m

Drill Pipe Diameter:

89 / 102 /114/127mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Certification:

ISO9001

Voltage:

Diesel Engine Driven

Engine:

CUMMINS 132KW

Power Type:

Diesel

Condition:

New

Packaging Details:

Bulk Ship and 20GP Container

Supply Ability:

2000 set per year

Highlight:

6x4 truck mounted water well drilling rig

600m depth water well drilling rig

140-450mm diameter drilling rig

Product Description

SINOTRUCK Mounted Deep Water Well Truck Chassis Drilling Rig With Air Compressor Integrated

Product Specifications

Attribute	Value
Type	6 x 4 Combined Truck Water Well Drilling Rig
Drilling Depth	600m
Drilling Diameter	140-450mm
Drilling Method	Mud Rotary and Air DTH
Warranty	12 Months
Drill Pipe Length	4m /4.5m
Drill Pipe diameter	89 / 102 /114/127mm
After-sales service	Engineers available to service machinery overseas
Certification	ISO9001
Voltage	Diesel Engine Driven
Engine	CUMMINS 132KW
Power type	Diesel
Condition	New

Product Overview

6 X 4 Truck Mounted Water Well Drilling Rig 600m Borehole Drilling Rig with DTH and Mud Drilling

Application

The CSD600A 6 x 4 combined truck mounted water well drilling rig is a heavy-duty, efficient, multi-function surface drill rig primarily used for:

Water well drilling
Agricultural irrigation wells
Geothermal air conditioning holes
Mountainous and rocky terrain water projects

Capable of drilling in various strata with diameters up to 480mm, this rig features advanced hydraulic technology with high torque hydraulic motor rotation and large-bore hydraulic cylinders.

Key Features

Dual drilling capability: Air DTH Hammer and mud rotary drilling
Centralized control console for efficient operation
SINOTRUK HOWO 6X4 truck chassis with integrated drive system
Hydraulic rotary drilling with directional circulation
Powered by 132kw CUMMINS diesel engine for stable performance
Rotary head with 0-110rpm stepless adjustment and 4500-11000Nm torque
Adjustable pulling force for deep hole drilling
Optional generator for welding or night work illumination
Main winch for efficient mud rock and weathering formation drilling
Fully hydraulic operation including landing legs and drilling tower
Integrated air compressor
Competitive pricing with low maintenance costs

Technical Specifications

Drilling System

Geology drilled	All kinds
Drilling Type	DTH & Mud Rotary
Drill system and operation	Hydraulic
Hole Diameter	Φ140--Φ450 mm
Hole Depth	600 m
Rotation Torque	4500 Nm (1st Gear) 11000 Nm (2nd Gear)
Rotation Speed	0-80 rpm (1st Gear) 0-100 rpm (2nd Gear)
Drill pipe diameter	76/89/102/114 mm
Drill pipe length	4000/4500 mm

Winch System

Lifting force of Main winch (Optional)	4 T
Lifting force of hoist	0.8 T
Length of steel wire rope (tool winch)	100 m
Lifting height of tool winch	8 m

Engine & Power

Diesel Engine type	CUMMINS
Rated Horse power	132 Kw
Electrical System	24 Volt

After-Sales Service

Our comprehensive after-sales service system adheres to ISO-9000 standards, providing:

Technical data and problem-solving solutions
Preventive maintenance measures
OEM spare parts with complete documentation
Installation instructions and warranty certificates

We offer "one equipment & one case" service that begins at order confirmation and continues throughout the equipment's working life.
