Fully Hydraulic Water Well Drilling Rig 200m Depth

Name: Fully Hydraulic Water Well Drilling Rig 200m Depth
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CSD200A
Price: 60 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CSD200A
MOQ:	1 Set
Price:	USD 60,000/ Set
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	20Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

Type:

Rotary Drilling Rig

Usage:

Water Well

Power Type:

Diesel

Condition:

New

Drilling Depth:

Max. 300m

Application:

Water Well Drilling Rig Mobile Drilling Rig, Hole Hammer Drill Rig, Drilling Well

Engine:

CUMMINS

Packaging Details:

Shipping Dimension: 11700*2550*3640mm

Supply Ability:

20Sets Per Month

Highlight:

hydraulic water well drilling rig

200m depth water well rig

4800Nm torque drilling rig

Product Description

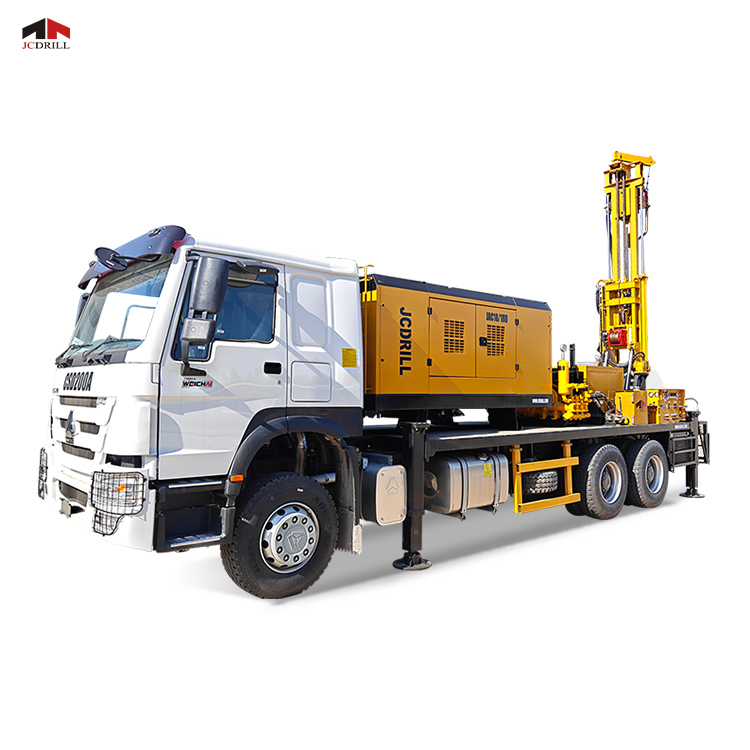

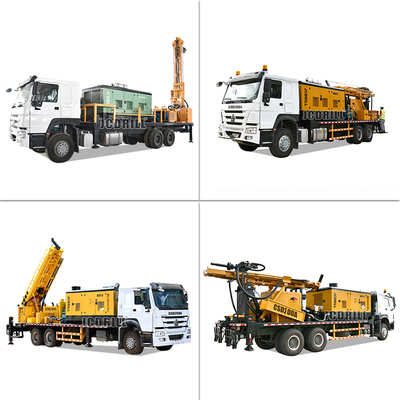

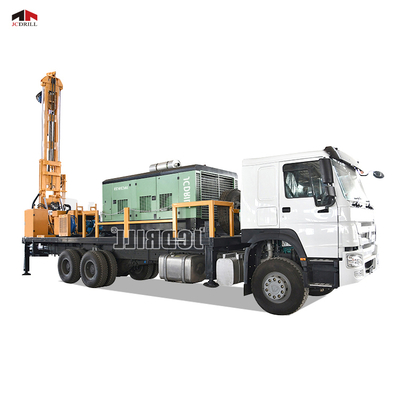

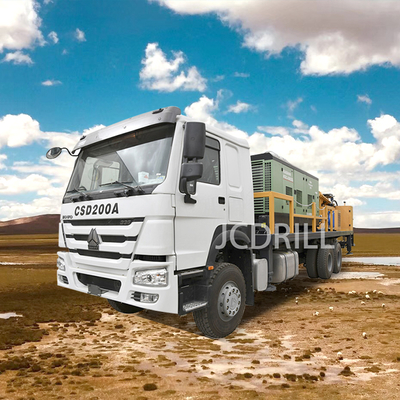

CSD200A Hydraulic Air DTH Mud Pump Integrated Dongfeng Truck Water Well Drilling Rig

Product Parameter

Parameter	Value
Type	Rotary Drilling Rig
Usage	Water Well
Power type	Diesel
Condition	New
Drilling depth	Max. 300m
Application	Water well drilling rig mobile drilling rig, Hole Hammer Drill Rig, Drilling well
Engine	CUMMINS

Product Description

The CSD200A Truck-Mounted Water Well Drilling Rig is designed for superior efficiency and versatility. Whether you're drilling for industrial, agricultural, or geological applications, this full-hydraulic rig ensures fast and reliable performance. With its high torque turntable, it powers through all types of formations, making it the go-to choice for deep water wells, geothermal projects, and foundation work.

Unlike traditional rotary drilling rigs, the CSD200A uses air DTH hammer technology for rock formations, significantly improving drilling speed and efficiency. In soft formations, mud drilling provides stable performance, ensuring smooth slag discharge for a cleaner and faster drilling process. Its hydraulic system adapts to complex geological conditions, making it a powerful solution for demanding projects.

Built for both domestic and international markets, the CSD200A delivers 10 times higher efficiency compared to conventional drilling methods. Its truck-mounted design ensures mobility, allowing operators to move easily between sites. Whether cutting, rotary, or impact drilling, this rig performs with precision, reducing downtime and increasing productivity.

Upgrade your drilling operations with the CSD200A Water Well Drilling Rig. Get unmatched power, efficiency, and adaptability--order now and drill deeper with confidence!

Technical Parameters

SPC.	Unit	CSD200A
Geology Drilled		All Kinds(DTH & Mud Rotary
Operation System		Hydraulic
Hole Diameter	mm	φ140-φ480
Hole Depth	m	200
Rotation Torque	Nm	4800-6500
Rotation Speed	Rpm	60-125
Drill Pipe Diameter	mm	89/102/114
Drill Pipe Length	mm	3000/4500/6000
Max. Pull Back Capacity	T	12
Max. Push Down Capacity	T	5
Net Weight	T	20
Shipping Dimension	mm	1170025503640
Winch
Lifting Force	T	1.5
Length of Steel Wire Rope(tool)	m	60
Engine
Diesel Engine Type		YUNNEI
Rated Horse Power	KW	58
Electrical System	Volt	24
Compressor(On Board)
Compressor Type		Rotary Screw/ Movable
Pressure Required	Bar/ Psi	18/260
Air Consumption	m³/min/CFM	18/635
Engine		Cummins
Truck
Manufacturer		Dongfeng
Model		YC6A240-33
Engine		WD615.93C
Rated Horse Power	Hp	240
Discharge Standard		EU-2
Drive Type		6*4
Steering Wheel		Left/ Right(Optional)
Model		BW250
Displacement	L/Min	250
Discharge Pressure(Mpa)	Mpa	2.5

Key Features

High Efficiency & Versatility: The CSD200A truck-mounted water well drilling rig is designed for multi-functional operations, suitable for water wells in industrial, agricultural, and geotechnical applications. It can drill efficiently in various formations using both mud rotary drilling and DTH hammer drilling for hard rock.

Full Hydraulic Operation: Equipped with a fully hydraulic system for smooth and precise control, ensuring high drilling efficiency and reduced operational effort. The centralized control console allows easy manipulation, improving work productivity.
Heavy-Duty Truck Chassis: Mounted on a 6x4 Dongfeng truck, ensuring stability and durability during transportation and drilling operations. The truck integrates essential components such as a transfer case, gearbox, double-winch unit, mud pump, and drilling tower, making it a compact yet powerful system.

Powerful Drilling Performance: Drilling Depth: Up to 200 meters. Hole Diameter: 140-480mm. Rotation Speed: 60-125 rpm (stepless adjustment). Rotation Torque: 4800-6500 Nm, providing strong drilling power for various geological conditions.

Flexible Customization Options: Truck Brand: Sinotruk, SHACMAN, Foton. Engine Type: Yuchai, Cummins. Air Compressor: Atlas, Sullair, Liutech. Drill Pipe Length: 3m, 4.5m, 6m. Optional Generator: Provides power for welding or night operations.

Applications

Water Well Drilling: Suitable for urban and rural water supply projects. Efficiently drills wells for agriculture, irrigation, and drinking water in remote areas. Can handle various soil types, from soft clay to hard rock formations.
Industrial & Agricultural Infrastructure: Used for drilling deep wells in industrial zones, farms, and plantations. Supports large-scale irrigation projects, providing water sources for crops. Facilitates groundwater extraction for factories, power plants, and industrial parks.
National Defense & Military Projects: Used in military bases and remote defense outposts for independent water supply. Supports strategic geological surveys for national infrastructure development.
Geological Exploration & Mining: Utilized for preliminary water source exploration in mining sites. Aids in mineral resource prospecting, providing insights into underground formations. Suitable for coalbed methane and geothermal well drilling.
Geothermal Energy & Environmental Studies: Assists in drilling geothermal wells for sustainable energy projects. Supports hydrogeological and environmental monitoring studies.
Disaster Relief & Emergency Water Supply: Deployable in earthquake, drought, and flood-affected areas to drill emergency water wells. Ensures quick and reliable water access for displaced communities.
Construction & Foundation Drilling: Can be used for pile foundation drilling in bridges, highways, and urban construction projects. Supports ground stabilization for high-rise buildings and infrastructure.

Frequently Asked Questions

What is the maximum drilling depth of the CSD200A? The CSD200A can drill up to 200 meters deep.
Can the CSD200A operate in rocky terrain? Yes, the rig uses an air DTH hammer to drill through hard rock formations efficiently.
How does the hydraulic system improve drilling efficiency? The full hydraulic system ensures precise control, reducing manual labor and improving speed.
What are the maintenance requirements for this rig? Regular oil changes, hydraulic system checks, and compressor maintenance are recommended.
Is the CSD200A suitable for deep water well drilling? Yes, it is designed for deep well drilling with advanced slag removal systems.
