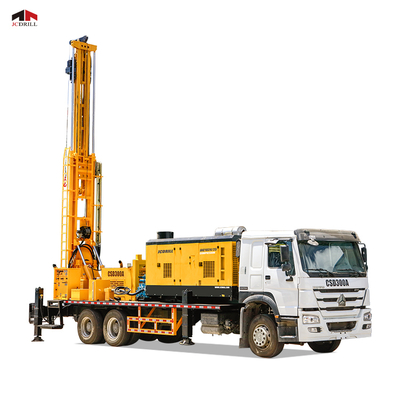

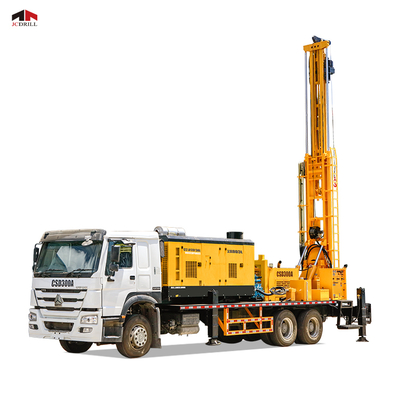

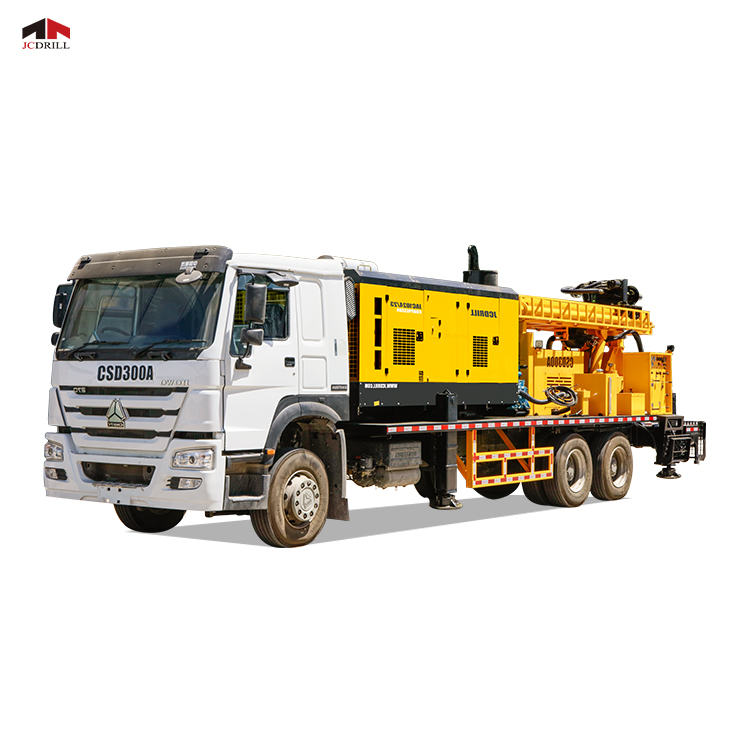

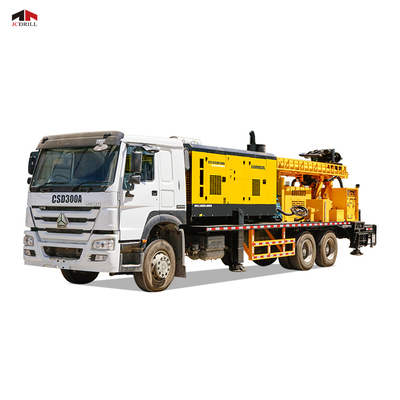

93KW Truck Mounted Water Well Drilling Rig 300m Depth

93KW Truck Mounted Water Well Drilling Rig 300m Depth

Brand Name:	JCDRILL
Model Number:	CSD300A 6X4
MOQ:	1 set
Price:	Negotation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 set per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Type:

6 X 4 Truck Water Well Drilling Rig With Air Compressor

Drilling Depth:

300m

Drilling Diameter:

140-450mm

Drilling Method:

Mud Rotary And Air DTH

Warranty:

One Year

Drill Pipe Length:

3m /4.5m

Drill Pipe Diameter:

89 / 102 /114mm

Power Type:

Diesel

Usage:

Water Well

Product Name:

Combined Truck Water Well Drilling Rig

Condition:

New

Power(w):

93KW

Packaging Details:

Bulk Ship and 20GP container

Supply Ability:

2000 set per year

Highlight:

300m depth water well drilling rig

93KW truck mounted drilling rig

heavy duty water well rig

Product Description

Well Hydraulic 93kw Truck Mounted Water Drilling Rig For Agriculture

Product Specifications

Attribute	Value
Type	6 x 4 Truck Water Well Drilling Rig with Air Compressor
Drilling Depth	300m
Drilling Diameter	140-450mm
Drilling Method	Mud Rotary and Air DTH
Warranty	One Year
Drill Pipe Length	3m /4.5m
Drill Pipe diameter	89 / 102 /114mm
Power type	Diesel
Usage	Water Well
Product name	Combined Truck Water Well Drilling Rig
Condition	New
Power(w)	93KW

Technical Specifications

Item	Parameter	Value
1	Geology drilled	All kinds
2	Drilling Type	DTH & Mud Rotary
3	Drill system and operation	Hydraulic
4	Hole Diameter	Φ140--Φ450 mm
5	Hole Depth	300 m
6	Rotation Torque	3200 Nm (1st Gear) 4500 Nm (2nd Gear)
7	Rotation Speed	0-80 rpm (1st Gear) 0-100 rpm (2nd Gear)
8	Drill pipe diameter	76/89/102/114 mm
9	Drill pipe length	3000 mm
10	Max. Lifting force	10000 N
11	Max. Feed Speed	18 m/min

Winch Specifications

Item	Parameter	Value
12	Lifting force of Main winch(Optional)	4 T
13	Lifting force of hoist	0.8 T
14	Length of steel wire rope(tool winch)	100 m
15	Lifting height of tool winch	8 m

Applications

CSD300A is a new, efficient, multifunctional hydraulic truck mounted telescoping mast well drilling rig, mainly applicable to:

Drilling process of water wells
Monitoring wells
Geothermal wells

Key Features

Dual drilling capability: air DTH Hammer drilling and mud drilling
Centralized control console for efficient operation
6X4 special crane chassis from SINOTRUK HOWO
Hydraulic rotary drilling rig with directional circulation
Powered by Yuchai engine (92kw) with stable performance
Rotary head with stepless speed adjustment (0-102rpm)
Regulable pulling force for deep hole drilling
Optional generator for welding or night work illumination
Main winch for high efficiency drilling
Hydraulic controlled four landing legs and drilling tower
Air compressor mounted on the drilling machine
Competitive pricing with low maintenance cost

After-Sales Service

Our comprehensive after-sales service system includes:

ISO-9000 compliant control system
Technical data and problem-solving solutions
OEM spare parts with installation instructions
Manufacturer's documentation and warranty certificate
Lifetime service commitment from order confirmation
