Crawler Mounted Hydraulic Pneumatic Water Well Mud Pump Borehole Rotary Drilling Rig Machine For Sale

>> Products Description

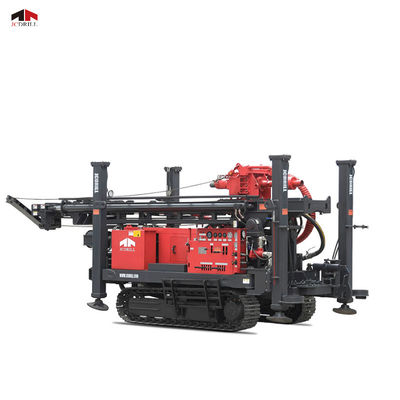

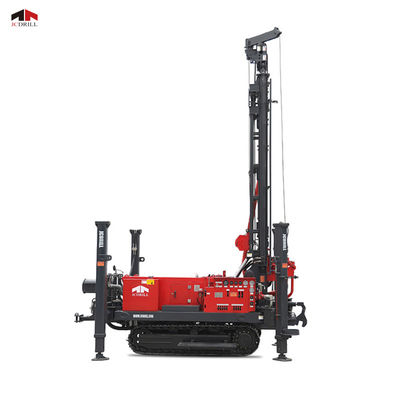

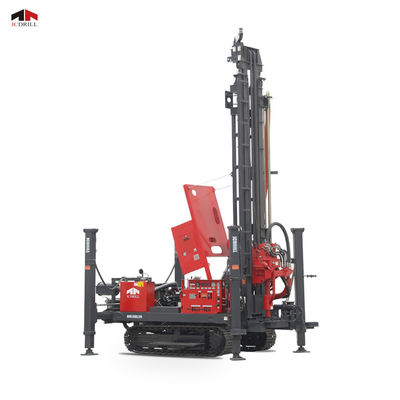

The CWD400T is a high-performance, fully hydraulic crawler-mounted water well drilling rig designed for multi-functional deep drilling tasks in complex and varied geological environments.
Its rugged track-mounted chassis and hydraulic-driven system deliver superior mobility, enhanced operational control, and unmatched adaptability to diverse terrains and drilling conditions. The CWD400T supports both mud rotary drilling for soft and unconsolidated formations and air DTH (Down-the-Hole) hammer drilling for hard rock.

>> Paremeter

>> Features

Dual Drilling Functionality – Air DTH and Mud Drilling
The CWD400T supports two drilling techniques:

Mud Drilling: Uses a BW450 mud pump and slurry for hole flushing in clay and sandy soils. Ideal for soft to medium formations.

DTH Hammer Drilling: Employs high-pressure air and a DTH hammer to penetrate hard rock layers.

Hydraulic System – Full Control and Efficiency
The drilling rig is completely hydraulically operated, offering:

Smooth, precise control of the drill system and all auxiliary movements

Independent control of feed, hoisting, and rotation systems

Centralized console for convenient, ergonomic operation

Hydraulic landing legs and tower lift for quick setup and stability

High-Performance Engine
Engine: YUCHAI 6-cylinder diesel engine

Rated Power: 92 kW

Cooling: Water-cooled system ensures long-term reliability and thermal stability

Drive Type: Full hydraulic transmission with transfer case and clutch system for optimal power distribution

Structural and Operational Advantages
Crawler Chassis: Ensures excellent off-road performance and adaptability to tough terrains such as mountains, deserts, and wetlands

Hydraulic Winch: Integrated for lifting casings and heavy tools

Optional Generator: Supports night operations or welding requirements

Guide Dumping, Boom Lift, and Boom Swing: Enhances operational flexibility and ease of positioning

Compact and Mobile Design
Despite its capacity and robust build, the CWD400T maintains a compact transportation dimension:

Transport Size: 5760 x 1850 x 2440 mm

Working Size: 3940 x 2890 x 9430 mm

Weight: 8.5 tons

This ensures it can be easily transported and deployed even in remote or logistically challenging regions.

>> Application

A. Water Well Drilling
Perfect for drilling village water wells, agricultural irrigation wells, and industrial supply wells in both urban and rural settings.

B. Geothermal Exploration
Ideal for drilling geothermal heat extraction wells in green energy projects, supporting residential, commercial, and municipal heating systems.

C. Civil Engineering Foundations
Used for piling and foundation holes in infrastructure projects such as bridges, buildings, wind farms, and transmission towers.

D. Geological and Mineral Exploration
Collects core samples and performs borehole testing for understanding subsurface structure and mineral deposits.

E. National Defense and Disaster Relief
Capable of quickly establishing deep wells in defense posts or emergency operations where water access is critical.

>> FAQ

Q1: What is the maximum drilling depth of the CWD400T?
A: The CWD400T can drill up to 400 meters in various geological formations.

Q2: What types of drilling methods does it support?
A: It supports both mud drilling for soft formations and air DTH hammer drilling for rock layers.

Q3: Can it operate in remote or rough terrains?
A: Yes, its crawler-mounted chassis and compact transportation dimensions make it suitable for rugged conditions.

Q4: What is the engine specification?
A: It is powered by a 6-cylinder, 92kW Yuchai diesel engine with water cooling.

Q5: Is it suitable for geothermal drilling?
A: Absolutely. The CWD400T is ideal for geothermal, construction foundation, and water well applications.

Q6: What is the torque and speed range of the rotary head?
A: The rotary torque ranges from 4000 to 8000 Nm, with rotation speeds from 70 to 140 rpm.

Q7: What auxiliary systems are integrated?
A: Includes hydraulic-controlled winches, mud pump, turntable, and drill tower, all managed via a central console.

Q8: What kind of maintenance does it require?
A: The rig is designed for low maintenance, with durable parts and an easy-access design for serviceability.

Q9: Can it be customized with additional equipment?
A: Yes. It supports integration with compressors, generators, casing tools, and more.

Q10: What is the transportation size?
A: The transportation dimension is 5760mm x 1850mm x 2440mm, making it easy to move by truck.
