Product Details:
|
| Model Number: | CWD600 | Drilling Depth: | 0-600m |
|---|---|---|---|
| Drilling Diameter: | 90-450mm | Drill Pipe Length: | 4.5m-6m |
| Usage: | Water Well Drilling | Drilling Methold: | DTH Drilling & Mud Drilling |
| Rotation Speed: | 0-100rpm | Engine Power: | 132kw |
| Drill Pipe: | 89/102/114mm | Mud Pump: | BW250/BW160 |
| Warranty: | 1year | Engine Brand: | Cummins |
| Gradeability: | 21° | Pull Back Capacity: | 32ton |
| High Light: | 600m hydraulic water well drilling rig,600m deep water well drilling rig,CE Hydraulic Water Well Drilling Rig |
||

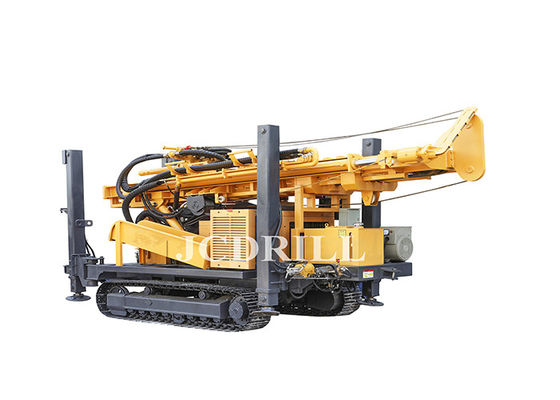

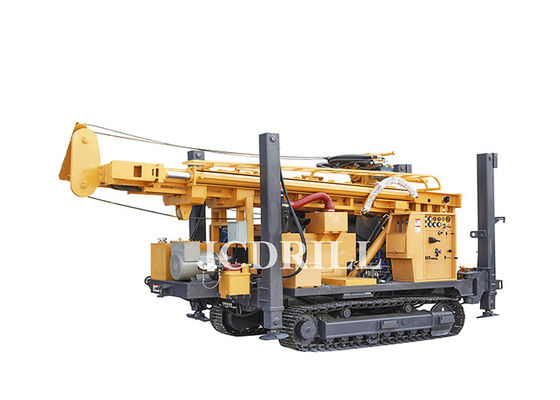

CWD600 Heavy Duty Deep Hydraulic Rock Water Well Drilling Machine
CWD600 is an efficient and versatile drilling and drilling equipment. The water well drilling machine adopts crawler chassis, which will not damage the road and the transition is convenient. It is mainly suitable for drilling different wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations.
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140—Φ450 |
| 5 | Hole Depth | m | 600 |
| 6 | Rotation Torque | Nm | 6500 1st Gear |
| 13000 2nd Ger | |||
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger | |||
| 8 | Drill pipe diameter | mm | 89/102/114 |
| 9 | Drill pipe length | mm | 4000/4500 |
| 10 | Axial pressure | T | 10 |
| Winch | |||
| 11 | Max. Lifting force | T | 32 |
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 8 |
| Engine | |||
| 16 | Diesel Engine type | CUMMINS | |
| 17 | Rated Horse power | Kw | 132 |
| 18 | Electrical System | 24 | Volt |
| Compressor required | |||
| 19 | Compressor Type | Rotary Screw/Movable | |
| 20 | Pressure Required | Mpa | 1.05—6.9 |
| 21 | Air consumption | m³/min | 16—96 |
| Mud Pump(Optional) | |||
| 30 | Type | Hydrulic | |
| 31 | Model | BW450 | |
| 32 | Stroke | mm | 110 |
| 33 | Displacement | L/Min | 450 |
| 34 | Discharge pressure (Mpa) | Mpa | 2-3 |
| 35 | Suction tube diameter | mm | 89 |
| 36 | Discharge pipe diameter | mm | 51 |
| 37 | Liner Diameter | mm | 80 |
| Dimension | |||
| 38 | Net Weight | T | 15 |
| 39 | Shipping Length | mm | 8500 |
| 40 | Shipping Width | mm | 2300 |
| 41 | Shipping Height | mm | 3300 |
| 42 | Ground Clearance | mm | 300 |
Application
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
