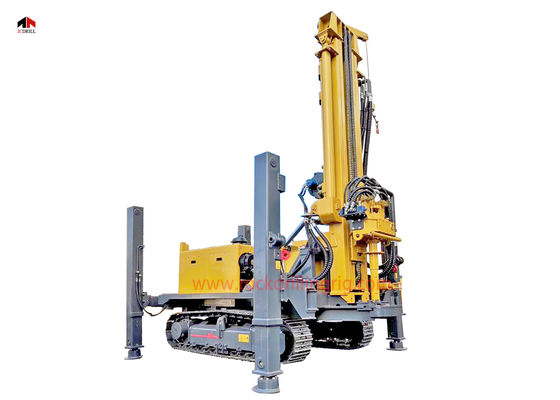

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine
Engineering Crawler Mounted 200m Water Well Drilling Rig Machine Engineering Crawler Mounted 200m Water Well Drilling Rig Machine Engineering Crawler Mounted 200m Water Well Drilling Rig Machine

Large Image :  Engineering Crawler Mounted 200m Water Well Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO
Model Number: CWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 15000usd-20000usd/set
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine

Description
Dimension(L*W*H): 6000*2200*2200mm Warranty: 1year
Water Hole Depth: 200m Rotation Torque: 4000Nm
Drill Rod Length: 3000mm Mud Pump: BW250
Power Type: Diesel Voltage: 24V
Weight: 7100kgs Core Components: Motor, Pump, Gear, Bearing, Engine, Gearbox
Water Hole Diameter: 150-254mm Drilling Rod: 76,89,102,114mm
Rotation Speed: 0-100rpm Engine: CMS
High Light:

Engineering Water Well Drilling Rig Machine

,

200m Water Well Drilling Rig Machine

,

4000Nm Water Well Drilling Rig

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine



Characteristics

1: The chassis is driven by highly-efficient pneumatic motor with powerful traction. Each track is driven independently by air motor with enclosed gear drive, the grade ability arrives 35° with a compressor, or 50° alone.

2: Hydraulic track oscillation is more suitable for positioning drilling machine during drilling..

3: The carriage with rollers provides for minimal wear to the drill guide.

4: Equipped with two hydraulic clamps is easy to load and unload drilling rods and improve efficiency.

5: The special compensation device makes a full production of drill rod threads.

6: The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.

7: Competitive in price,low cost of maintain.

Application

CWD200 crawler deep hole water well drilling rig is a new,highly-effective,energy-saving ansd multi-functional hydraulic drill and it is specialized in drilling hole for water well drilling,rock blasting,well,monitoring well, geothermal air conditioning hole, grouting hole of the hydropower cofferdam, grouting hole for dyke seepage control and grouting hole for base enforcement, surface mining,anchorage,national defense project and other drilling operations, in addition, the drilling equipment adopts the process of down-hole impact and breast wall drilling with casing following, which can effectively solve the technical problem of difficult hole-forming in the unconsolidated layer. The crawler mounted water well drilling rig is equipped with hydraulic motor rotation with a high power, propulsion and lifting of cylinder and down-hole impacted with high blast pressure, to realize high effectiveness of drilling footage and low energy consumption, the JKS200 borehole drilling rig can drilling by DTH air drilling rig and mud drilling.

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine 0
Specification
1 Rock Hardness F=6-20
2 Hole Diameter mm Φ150—Φ254
3 Hole Depth m 200
4 Max horizontaldrilling m 3.38
5 Rotation Torque Nm 4000
6 Rotation Speed rpm 0-100
7 Rotation Power KW 18.34
8 Max. pushing power KW 3.36
9 Max. Lifting force N 80000
10 Max. Feed Speed M/min 20
11 Max. Lifting Speed M/min 20
12 Max Dump of Guide ° 95°
13 Feed Stroke mm 3400
14 Manufacturer CUMMINS
15 Rated Horse power Kw 70
16 Electrical System 24 Volt
17 Model   BW200
18 Type   Horizontal
19 Cylinder quantity   2
20 Cylinder diameter mm 80:65
21 Travel (mm) mm 85
22 Reciprocating times min-1 145
23 Pressure Mpa 4.0;6.0
24 Displacement L/min 200;125
25 Power KW 11
26 Speed r/min 530
27 Pitch of belt pulley mm 385
28 Belt pulley mm B type,five solts
29 Power(by client's request)   295 type-diesel or motor
30 Suction pipe dia.(mm) mm Ф65
31 Scupper pipe dia. mm Ф37
32 Dimensions(L×W×H) mm 1050×630×820
33 Weigh kg 300
34 Compressor Type Rotary Screw/Movable
35 Compressor Pressure Required Mpa 1.2—2.4
36 Air consumption m³/min 11—32
37 Max. Travel Speed Km/h 2.5
38 Gradeability ° 15°
39 Net Weight kg 7100
40 Shipping Length mm 6000
41 Shipping Width mm 2100
42 Shipping Height mm 3200
43 Ground Clearance mm 300
44 Guide Extension mm 1400
45 Volume of Flow L/Min 200
46 Rated Pressure Mpa 1.6
Packing& Delivery

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine 1

Service

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine 3

Engineering Crawler Mounted 200m Water Well Drilling Rig Machine 4
