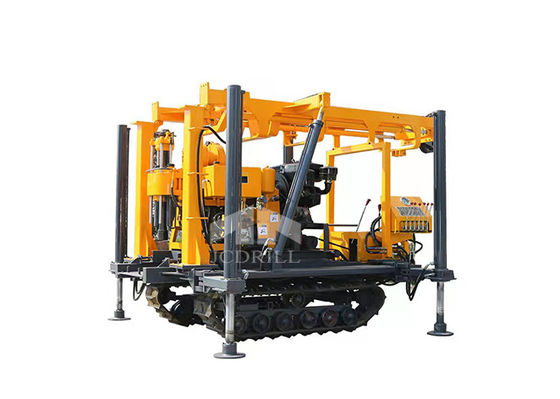

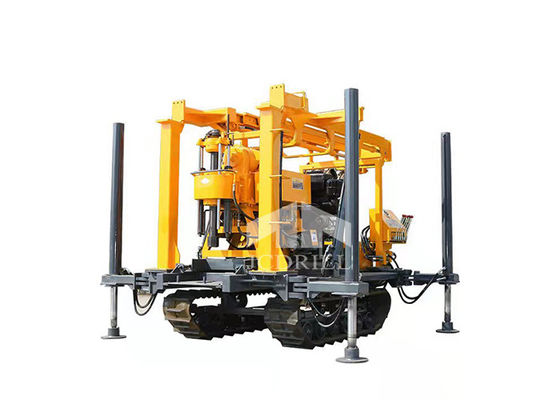

200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary

200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary
200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary

Large Image :  200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY200L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 3990kg
Warranty: 1year Hole Depth: 200m
Usage: Water Well Dimension(L*W*H): 4200*1980*2150mm
Hole Diameter: 75-325mm
High Light:

crawler portable hydraulic water well drilling rig

,

200m portable hydraulic water well drilling rig

,

200m crawler mounted drill rig

Crawler Mounted Water Well Drilling Rig Hydraulic Rotary Water Well Drilling Rig for sales



>> Introduction

XYY-L Series crawler mounted diamond core drilling rig is a kind of core drill rig driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 0

>> Characteristic
200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 1

200m Portable Hydraulic Water Well Drilling Rig Crawler Mounted Rotary 2

>> Specification

Main machine technical parameter JXY130L JXY180L JXY200L
Drilling depth(m) 130m 180m 200m
Drilling hole diameter 220 220 325
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90 90 90
Weight engine(kg) 2885 3900 3990
Machine Dimension(mm) 4200*1980*2150 4200*1980*2150 4200*1980*2150
Power
Matching engine power(KW) 13.2 13.2 15
Spindle
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Hoist
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Ton) 18 18 18
Effective height(m) 6.5 6.5 6.5
Mud Pump
Flow(L/MIN) 160 160 160
Max. pressure(Mpa) 1.3 1.3 1.3
Back and forth times/min 165 165 165
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32
Crawler Chassis 20° 20° 20°
Crawler Size 10Km/h 10Km/h 10Km/h
Climbing angle 1300 1300 1300
Moving Speed(Km/h) 18 18 18
Hydraulic Landing leg valid height 6.5 6.5 6.5
