Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation

Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation
Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation
Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation

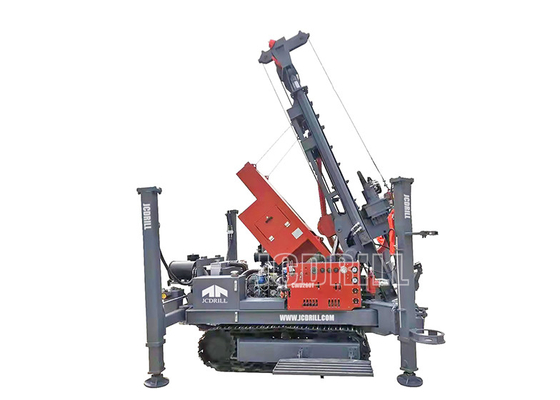

Large Image :  Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: CWD260T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD22000-26000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year

Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation

Description
Type: Rotary Drilling Rig Drilling Depth: 260M
Drilling Diameter: 90-350MM Power(w): 73Kw
Application: Water Well Drilling Rig Mobile Drilling Rig Condition: New
Dimension(l*w*h): 4100*1650*2220mm After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
Warranty: 1 Year Weight: 5400Kg
High Light:

260m crawler mounted drilling rig

,

water crawler mounted drilling rig

,

260m crawler mounted drill rig



260m Crawler mounted hydraulic rotation water well drilling machine



>> Introduction

CWD260T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD260T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD260T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

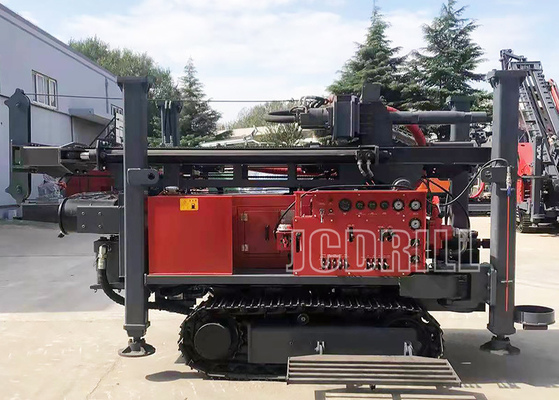

Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation 0

>> Specification

Specification Unit CWD260T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 260
Rotation Torque Nm 5000-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 14
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 73
Compressor required(Optional)
Pressure Required Mpa 15-30
Air consumption m³/min 1.5-2.5
Mud Pump(Optional/Separate or on board)
Model   BW450
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2
Dimension
Net Weight Kgs 5400
Transportation dimension mm 4100*1650*2220
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300

>> Package & Delivery

Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation 1

>> Certification

Water 260m Crawler Mounted Drilling Rig Hydraulic Rotation 2

>> FAQ

Q: Are you original manufacturer?

Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
