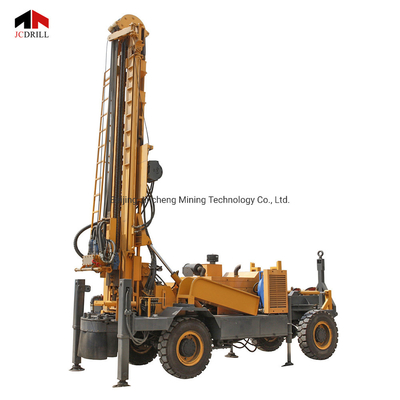

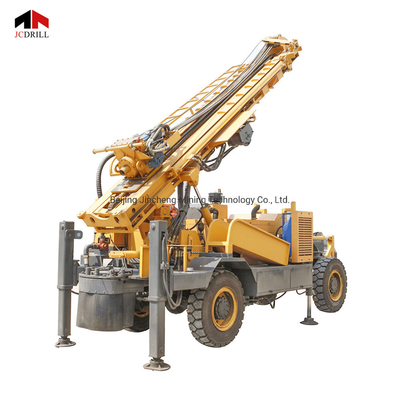

300m Deep Diesel Engine Dth Portable Well Drilling Rig

300m Deep Diesel Engine Dth Portable Well Drilling Rig
300m Deep Diesel Engine Dth Portable Well Drilling Rig 300m Deep Diesel Engine Dth Portable Well Drilling Rig 300m Deep Diesel Engine Dth Portable Well Drilling Rig

Large Image :  300m Deep Diesel Engine Dth Portable Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

300m Deep Diesel Engine Dth Portable Well Drilling Rig

Description
Model Number: TWD300 Water Well Drilling Rig Drilling Depth: 300m
Drilling Diameter: 450mm Drill Pipe Length: 3000mm 4500mm 6000mm
Usage: Drilling Water Well Drilling Methold: DTH Drilling MUD Drilling
Engine Power: 92KW Or Others Mud Pump: BW450
Warranty: 1year
High Light:

300m deep portable well drilling rig

,

diesel engine portable well drilling rig

,

dth portable well drilling machine

Deep Portable Diesel Engine DTH Water Well Drill Rig Machine





>> Introduction

>> TWD300 trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock
drilling,DTH Hammer is applied in rock drilling,slag is discharged by air pressure and the offstage efficiency is ten times than traditional
rotary drilling.
>> TWD300 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the
slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air



>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure
plunger pump and it is characterized by powerful dynamic and stable performance

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time
and enhance the work efficiency.

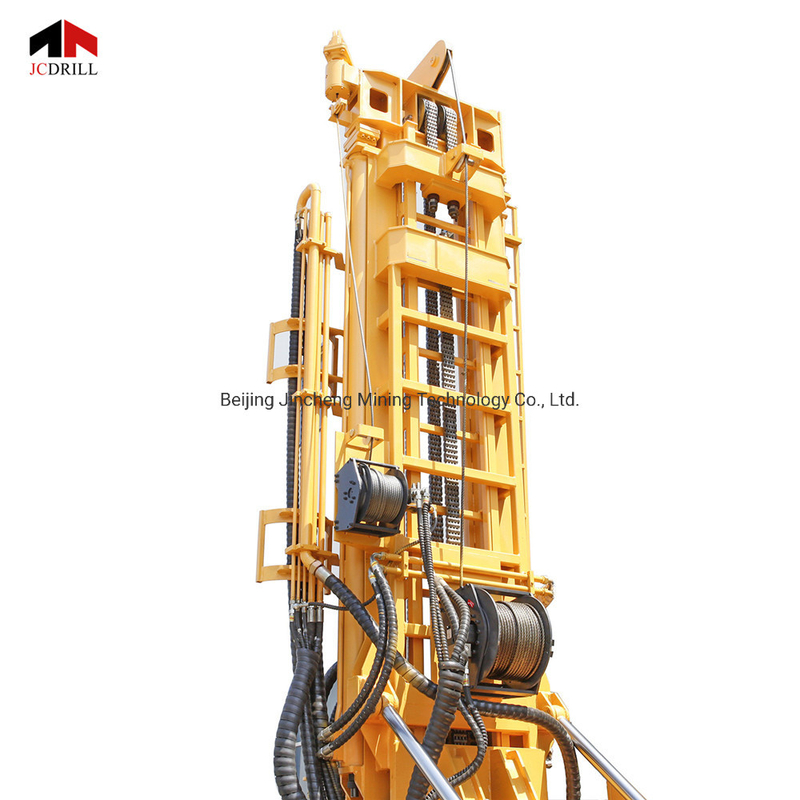

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set
up on the chassis.
>> .It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry
as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable
drilling bit.



>> Specification

General
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ105-Φ350
5 Hole Depth m 300
6 Rotation Torque Nm 7500
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Gear
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 3000
10 Most. Feed Speed M/min 18
11 Most. Lifting Speed M/min 5-20
12 Feed Stroke mm 3400
11 Most. Lifting force N 120000
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Lifting height of tool winch m 6
Engine
15 Diesel Engine type CMS
16 Rated Horse power Kw 92
17 Electrical System Volt 24
Compressor required
18 Compressor Type Rotary Screw/Movable
19 Pressure Required Mpa 1.2-3.5
20 Air consumption m³/min 16-40
Mud Pump(Optional)
21 Type   Hydraulic
22 Model   BW450
23 Stroke mm 100
24 Displacement L/Min 250
25 Discharge pressure (Mpa) Mpa 2.5
26 Suction tube diameter mm 85
27 Discharge pipe diameter mm 51
28 Foam pump   Optional
Dimension
29 Net Weight KG 6100
30 Shipping Length mm 5800
31 Shipping Width mm 2210
32 Shipping Height mm 2850
33 Ground Clearance mm 300
34 Volume of Flow mm 200

300m Deep Diesel Engine Dth Portable Well Drilling Rig 0

>> Package & Delivery
​​300m Deep Diesel Engine Dth Portable Well Drilling Rig 1

>> About us



JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.

We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> Our Service

300m Deep Diesel Engine Dth Portable Well Drilling Rig 4

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
