Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200

Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200
Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200 Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200

Large Image :  Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CSD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, , D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Pneumatic Hammer Or Mud 93kw Well Drilling Machine CSD200

Description
Model Number: CSD200 Dimension: 11000*2480
Driling Diameter: 90-300mm Power Type: Diesel
Drilling Depth: MAX.210m Weight: 15000kg
Power: 93kw
High Light:

pneumatic hammer well drilling machine

,

200m deep well drilling machine

,

pneumatic hammer borehole drilling machine

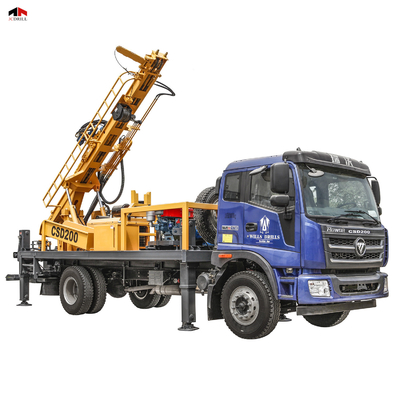

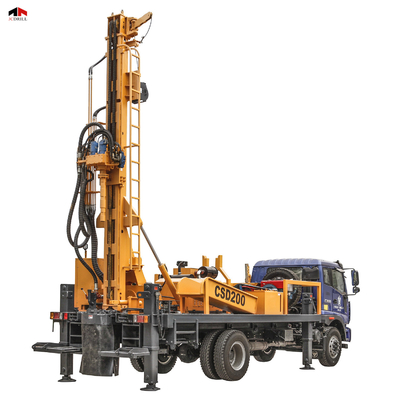

CSD200 Truck Type Water Well Drilling Rig

CSD200 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CSD200 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.


CSD200 4x4 truck water borehole drilling machine used for sale


Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ90—Φ325
5 Hole Depth m 200
6 Rotation Torque Nm 4800
7 Rotation Speed rpm 0-102
8 Drill pipe diameter mm 76,89,102,114
9 Drill pipe length mm 3000
10 Max. Lifting force Ton 12
11 Max. Feed Speed M/min 18
12 Feed Stroke mm 3400
Winch
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
Engine
15 Diesel Engine type Yuchai
16 Rated Horse power Kw 81
17 Electrical System V 24
Compressor required(Optional)
18 Compressor Type Rotary Screw/Movable
19 Pressure Required Mpa 1.2—3.0
20 Air consumption m³/min 11—35
Truck
21 Manufacturer   Foton Aoling
24 Rated Horse power HP 168
25 Discharge Standard   EU-5
26 Drive type   4X2
27 Max.Speed Km/h 95
28 Steering wheel   left/right(Optional)
Mud Pump
29 Type   Hydrulic
30 Model   BW450
31 Stroke mm 110
32 Displacement L/Min 450
33 Discharge pressure (Mpa) Mpa 5
34 Suction tube diameter mm 89
35 Discharge pipe diameter mm 51
36 Liner Diameter mm 80
Dimension
37 Net Weight Kg 10800
38 Shipping Length mm 9100
39 Shipping Width mm 2550
40 Shipping Height mm 3400

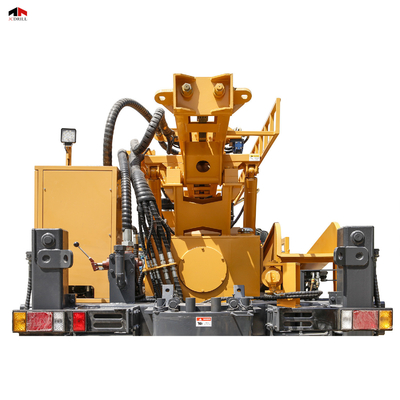

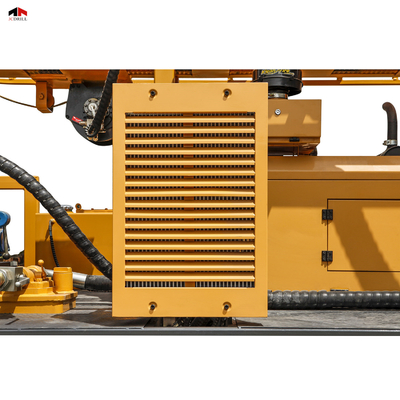

Product Show

CSD200 4x4 truck water borehole drilling machine used for sale CSD200 4x4 truck water borehole drilling machine used for sale
CSD200 4x4 truck water borehole drilling machine used for sale CSD200 4x4 truck water borehole drilling machine used for sale
CSD200 4x4 truck water borehole drilling machine used for sale CSD200 4x4 truck water borehole drilling machine used for sale


Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

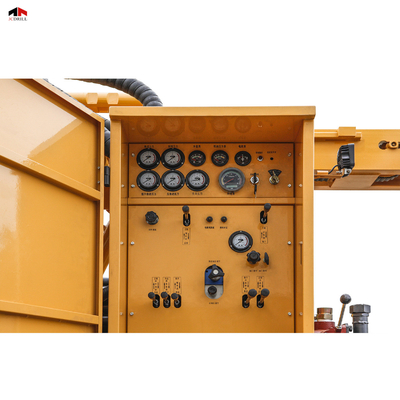

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

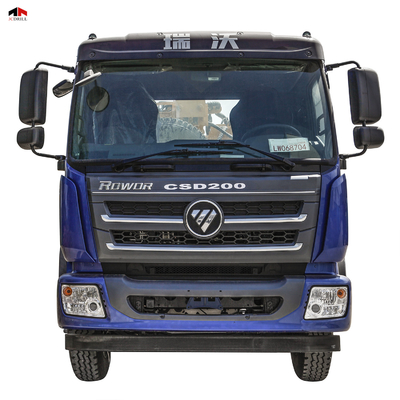

3. The truck chassis adopts the 4X2 or 4x4 special crane chassis of brand FOTON and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Yuchai engine,81kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6. The rotary head,rotation speed is 0-115rpm stepless adjustment and the rotary torque is 4800Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.

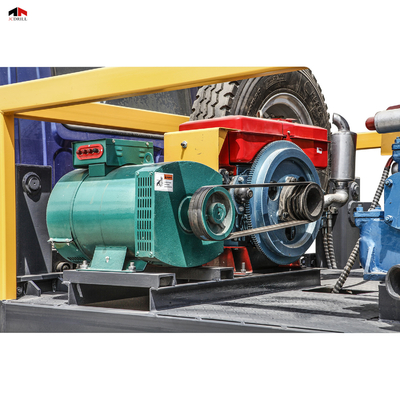

8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope length of 100m.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13. Competitive in price, low cost of maintain.



Shipping

CSD200 4x4 truck water borehole drilling machine used for sale


FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
