Product Details:
|
Type: | 6 X 4 Truck Water Well Drilling Rig With Air Compressor | Drilling Depth: | 300m |
---|---|---|---|
Drilling Diameter: | 140-450mm | Drilling Method: | Mud Rotary And Air DTH |
Warranty: | One Year | Drill Pipe Length: | 3m /4.5m |
Drill Pipe Diameter: | 89 / 102 /114mm | Power Type: | Diesel |
Usage: | Water Well | Product Name: | Combined Truck Water Well Drilling Rig |
Condition: | New | Power(w): | 93KW |
Highlight: | 300m truck mounted water well drilling rig,300m deep water drilling rigs,multifunctional truck mounted water well drilling rig |

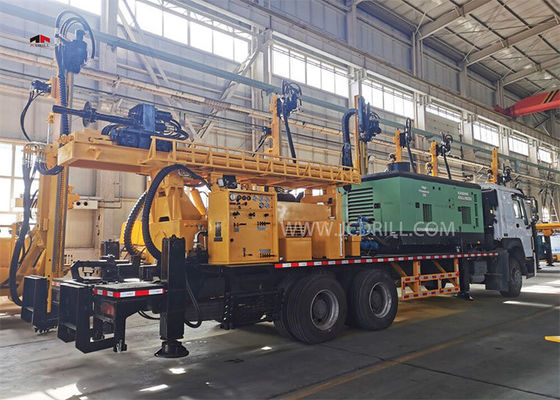

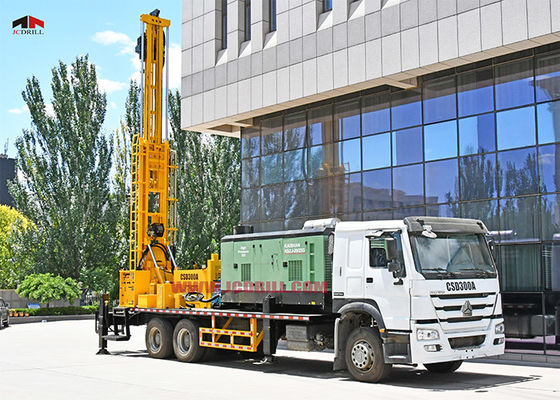

New design deep truck mounted water well drilling rig used in water project
Application
CSD300A is a new, efficient, multifunctional hydraulic truck mounted telescoping mast well drilling rig, mainly applicable to the drilling process of water wells, monitoring wells and geothermal wells, etc. Features are as belows:
1.When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional mud rotary drilling rigs.
2.The rig is able to handle casing size up to 6 meters.
3.In loose layer, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility is suiting all kinds of complex geological conditions.
4.Air compressor is mounted on the truck drilling machine, well received by marketing.
Specification
1 | Geology drilled | All kinds | |
2 | Drilling Type | DTH & Mud Rotary | |
3 | Drill system and operation | Hydraulic | |
4 | Hole Diameter | mm | Φ140—Φ450 |
5 | Hole Depth | m | 300 |
6 | Rotation Torque | Nm | 3200 1st Gear |
4500 2nd Gear | |||
7 | Rotation Speed | rpm | 0-80 1st Gear |
0-100 2nd Gear | |||
8 | Drill pipe diameter | mm | 76/89/102/114 |
9 | Drill pipe length | mm | 3000 |
10 | Max. Lifting force | N | 10000 |
11 | Max. Feed Speed | m/min | 18 |
Winch | |||
12 | Lifting force of Main winch(Optional) | T | 4 |
13 | Lifting force of hoist | T | 0.8 |
14 | Length of steel wire rope(tool winch) | m | 100 |
15 | Lifting height of tool winch | m | 8 |
Engine | |||
16 | Diesel Engine type | YUCHAI | |
17 | Rated Horse power | Kw | 93 |
18 | Electrical System | Volt | 24 |
Compressor required | |||
19 | Compressor Type | Rotary Screw/Movable | |
20 | Pressure Required | Mpa | 1.2—3 |
21 | Air consumption | m³/min | 11—35 |
Truck | |||
22 | Manufacturer | SINOTRUK HOWO | |
23 | Model | ZZ1257M5847C | |
24 | Engine | WD615.93C | |
25 | Rated Horse power | KW | 245 |
26 | Discharge Standard | EU-3 | |
27 | Drive type | 6*4 | |
28 | Max.Speed | Km/h | 102.9 |
29 | Steering wheel | left | |
Mud Pump | |||
30 | Type | Hydraulic | |
31 | Model | BW450/BW250 | |
32 | Stroke | mm | 110 |
33 | Displacement | L/Min | 450/250 |
34 | Discharge pressure (Mpa) | Mpa | 2-3 |
35 | Suction tube diameter | mm | 89 |
36 | Discharge pipe diameter | mm | 51 |
37 | Liner Diameter | mm | 80 |
Hydraulic Welder | |||
38 | Mnufacturer | Dynaset | |
39 | Welding current | A | 60-250 |
40 | Hydraulic Min.oilflow | L/min | 42 |
41 | Nom/Max Pressure | Bar | 190/210 |
42 | Voltage | V | 110/220VDC |
43 | Power | Kw | 102 |
44 | L*W*H | mm | 390*190*230 |
45 | Foam pump | Optional | |
Generator | |||
46 | Generator | Optional | |
Dimension | |||
46 | Net Weight | T | 25 |
47 | Shipping Length | mm | 12500 |
48 | Shipping Width | mm | 2480 |
49 | Shipping Height | mm | 3050 |
50 | Working size(L*W*H) | mm | 12500*2480*7147 |
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
