Product Details:
|
| Geology Drilled: | All Kinds | Drill System: | Hydraulic |
|---|---|---|---|
| Hole Diameter: | 140-450mm | Hole Depth: | 200m |
| Drill Pipe Diameter: | 89/102/114 | Drill Pipe Length: | 3000/4500mm |
| Max. Pull Down Capacity: | 85KN | Max. Pull Back Capacity: | 16T |
| High Light: | Hydraulic Truck Mounted Water Well Drilling Rig,200m Truck Mounted Water Well Drilling Rig,Truck Mounted Water Well Drilling Rig Hydraulic |
||

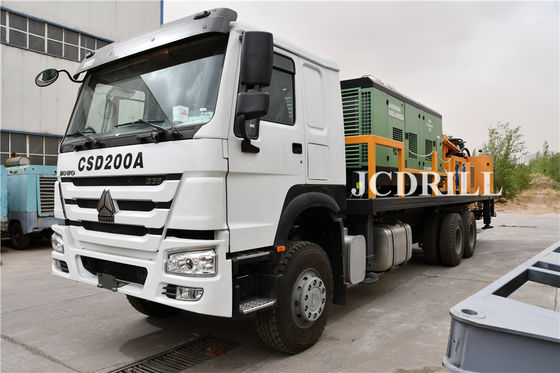

CSD200A Hydraulic Water Well Drilling Truck for Drilling
CSD200A truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD200A deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140—Φ450 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 3050-6100 |
| 7 | Rotation Speed | rpm | 60-120 |
| 8 | Drill pipe diameter | mm | 89/102/114 |
| 9 | Drill pipe length | mm | 3000/4500 |
| 10 | Max.Pull down capacity | T | 85KN |
| 11 | Max.Pull back capacity | T | 16 |
| Winch | |||
| 12 | Lifting force of Main winch(Optional) | T | 5 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 7.5 |
| Engine | |||
| 16 | Diesel Engine type | YUCHAI | |
| 17 | Rated Horse power | Kw | 70 |
| 18 | Electrical System | 24 | Volt |
| Compressor | |||
| 19 | Brand | KAISHAN | LGZJ18/17 |
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 17 |
| 22 | Air consumption | m³/min | 18 |
| Truck | |||
| 23 | Manufacturer | DONGFENG | |
| 24 | Model | EQ1208G7 | |
| 25 | Engine | WD615.47 | |
| 26 | Rated Horse power | kw | 273 |
| 27 | Discharge Standard | EU-2 | |
| 28 | Drive type | 6*4 | |
| 29 | Max.Speed | Km/h | 93 |
| 30 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 31 | Type | Hydrulic | |
| 32 | Model | BW250 | |
| 33 | Stroke | mm | 110 |
| 34 | Displacement | L/Min | 250 |
| 35 | Discharge pressure (Mpa) | Mpa | 4 |
| Dimension | |||
| 36 | Net Weight | T | 19.8 |
| 37 | Shipping Length | mm | 11500 |
| 38 | Shipping Width | mm | 2480 |
| 39 | Shipping Height | mm | 3550 |
| 40 | Working size(L*W*H) | mm | 11000*2480*6350 |

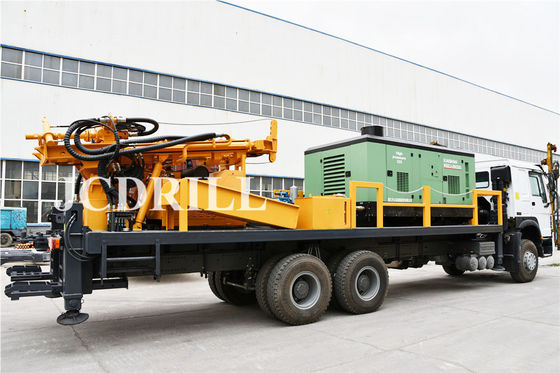

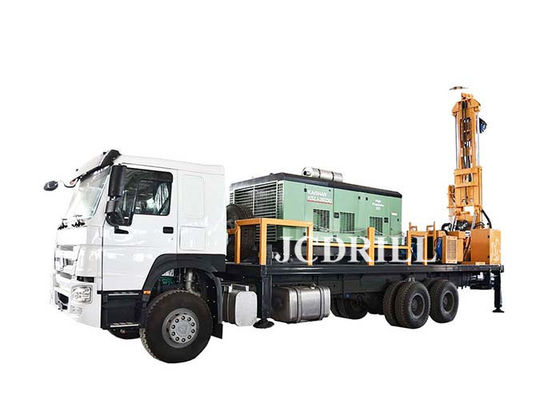

Showing
Characteristics
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X4 special crane chassis of brand DONGFENG and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
