Product Details:
|
| Geology Drilled: | All Kinds | Drilling Type: | DTH & Mud Rotary |
|---|---|---|---|
| Drill Operation: | Hydraulic | Feed Stroke: | 3400mm |
| Lifting Force Of Hoist: | 0.8T | Length Of Steel Wire Rope: | 100m |
| High Light: | 200m Deep borehole drilling truck,Borehole Water Well Drilling Truck,200m Water Well Drilling Truck |
||

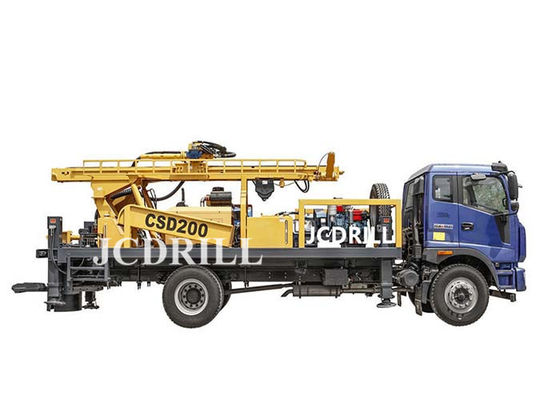

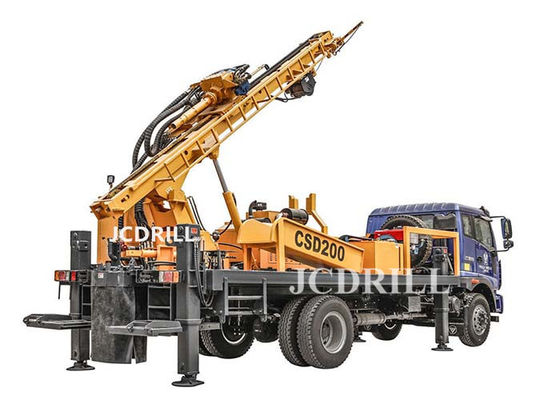

200m Deep Drilling Machine CSD200 from JCDRILL
CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90—Φ325 |
| 5 | Hole Depth | m | 200 |
| 6 | Rotation Torque | Nm | 4800 |
| 7 | Rotation Speed | rpm | 0-102 |
| 8 | Drill pipe diameter | mm | 76,89,102,114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Max. Lifting force | Ton | 12 |
| 11 | Max. Feed Speed | M/min | 18 |
| 12 | Feed Stroke | mm | 3400 |
| Winch | |||
| 13 | Lifting force of hoist | T | 0.8 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| Engine | |||
| 15 | Diesel Engine type | Yuchai | |
| 16 | Rated Horse power | Kw | 81 |
| 17 | Electrical System | V | 24 |
| Compressor required(Optional) | |||
| 18 | Compressor Type | Rotary Screw/Movable | |
| 19 | Pressure Required | Mpa | 1.2—3.0 |
| 20 | Air consumption | m³/min | 11—35 |
| Truck | |||
| 21 | Manufacturer | Foton Aoling | |
| 24 | Rated Horse power | HP | 168 |
| 25 | Discharge Standard | EU-5 | |
| 26 | Drive type | 4X2 | |
| 27 | Max.Speed | Km/h | 95 |
| 28 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 29 | Type | Hydrulic | |
| 30 | Model | BW450 | |
| 31 | Stroke | mm | 110 |
| 32 | Displacement | L/Min | 450 |
| 33 | Discharge pressure (Mpa) | Mpa | 5 |
| 34 | Suction tube diameter | mm | 89 |
| 35 | Discharge pipe diameter | mm | 51 |
| 36 | Liner Diameter | mm | 80 |
| Dimension | |||
| 37 | Net Weight | Kg | 10800 |
| 38 | Shipping Length | mm | 9100 |
| 39 | Shipping Width | mm | 2550 |
| 40 | Shipping Height | mm | 3400 |
Shipping
