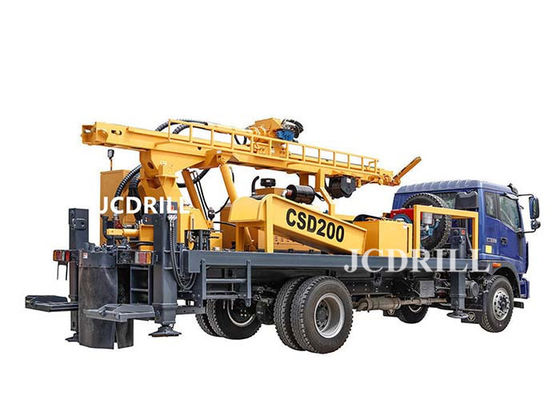

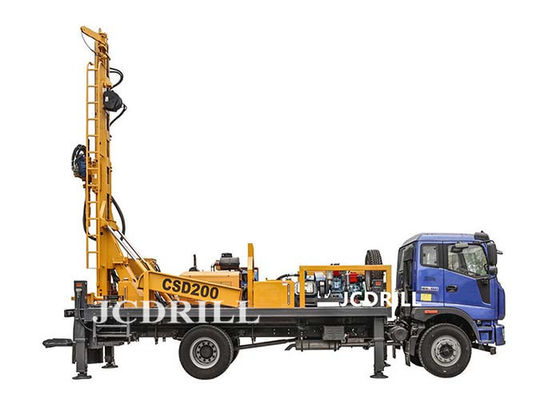

Full Hydraulic 200 meters Water Well Drilling Machine
CSD200 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Specification
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90—Φ325 |
| 5 | Hole Depth | m | 200 |
| 6 | Rotation Torque | Nm | 4800 |
| 7 | Rotation Speed | rpm | 0-102 |
| 8 | Drill pipe diameter | mm | 76,89,102,114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Max. Lifting force | Ton | 12 |
| 11 | Max. Feed Speed | M/min | 18 |
| 12 | Feed Stroke | mm | 3400 |
| Winch | |||
| 13 | Lifting force of hoist | T | 0.8 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| Engine | |||
| 15 | Diesel Engine type | Yuchai | |
| 16 | Rated Horse power | Kw | 81 |
| 17 | Electrical System | V | 24 |
| Compressor required(Optional) | |||
| 18 | Compressor Type | Rotary Screw/Movable | |
| 19 | Pressure Required | Mpa | 1.2—3.0 |
| 20 | Air consumption | m³/min | 11—35 |
| Truck | |||
| 21 | Manufacturer | Foton Aoling | |
| 24 | Rated Horse power | HP | 168 |
| 25 | Discharge Standard | EU-5 | |
| 26 | Drive type | 4X2 | |
| 27 | Max.Speed | Km/h | 95 |
| 28 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 29 | Type | Hydrulic | |
| 30 | Model | BW450 | |
| 31 | Stroke | mm | 110 |
| 32 | Displacement | L/Min | 450 |
| 33 | Discharge pressure (Mpa) | Mpa | 5 |
| 34 | Suction tube diameter | mm | 89 |
| 35 | Discharge pipe diameter | mm | 51 |
| 36 | Liner Diameter | mm | 80 |
| Dimension | |||
| 37 | Net Weight | Kg | 10800 |
| 38 | Shipping Length | mm | 9100 |
| 39 | Shipping Width | mm | 2550 |
| 40 | Shipping Height | mm | 3400 |
Pictures
Characteristics
1.The drilling rig can use air DTH Hammer drilling and mud drilling. 2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 4X2 or 4x4 special crane chassis of brand FOTON and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a Yuchai engine,81kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,rotation speed is 0-115rpm stepless adjustment and the rotary torque is 4800Nm. 7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope length of 100m.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13.Competitive in price, low cost of maintain.
