Product Details:
|
| Name: | CSD300 | Drill System And Operation: | Hydraulic |
|---|---|---|---|
| Hole Diameter: | Φ140—Φ450 | Hole Depth: | 300m |
| Rotation Torque: | 4800-6500Nm | Rotation Speed: | 60-120rpm |
| Drill Pipe Diameter: | 89/114mm | Drill Pipe Length: | 4000/4500mm |
| Max.Push Down Capacity: | 5T | Max.Pull Up Capacity: | 16T |
| Highlight: | 400M Portable Well Drilling Rig,4800nm Portable Well Drilling Rig,400M water well rig |
||
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140-Φ450 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 4800-6500 |
| 7 | Rotation Speed | rpm | 60-120 |
| 8 | Drill pipe diameter | mm | 89/114 |
| 9 | Drill pipe length | mm | 4000/4500 |
| 10 | Max.Push down capacity | T | 5 |
| 11 | Max.Pull up capacity | T | 16 |
| Winch | |||
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 8 |
| Engine | |||
| 16 | Diesel Engine type | YUCHAI | |
| 17 | Rated Horse power | Kw | 70 |
| 18 | Electrical System | Volt | 24 |
| Compressor required | |||
| 19 | Compressor Type | Rotary Screw/Movable | |
| 20 | Pressure Required | Mpa | 1.05-4.5 |
| 21 | Air consumption | m³/min | 16-60 |
| Truck | |||
| 22 | Manufacturer | SINOTRUCK HOWO | |
| 23 | Model | ZZ1257M5847C | |
| 24 | Engine | WD615.93C | |
| 25 | Rated Horse power | Hp | 290 |
| 26 | Discharge Standard | EU-2 | |
| 27 | Drive type | 6*4 | |
| 28 | Max.Speed | Km/h | 102.9 |
| 29 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 30 | Power Type | Diesel engine | |
| 31 | Model | BW450 | |
| 32 | Stroke | mm | 110 |
| 33 | Displacement | L/Min | 450 |
| 34 | Discharge pressure (Mpa) | Mpa | 5 |
| Dimension | |||
| 35 | Net Weight | T | 20 |
| 36 | Shipping Length | mm | 11200 |
| 37 | Shipping Width | mm | 2500 |
| 38 | Shipping Height | mm | 3200 |
| 39 | Working size(L*W*H) | mm | 11000*2480*7147 |
Product Details

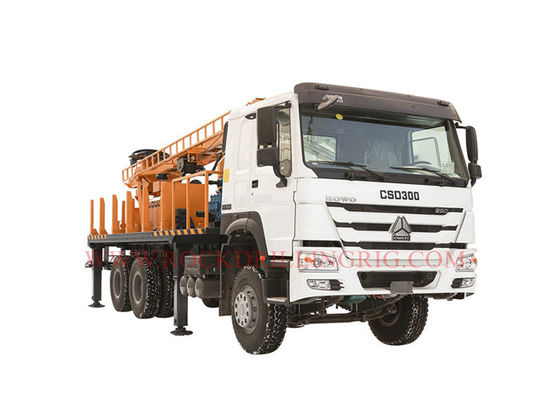

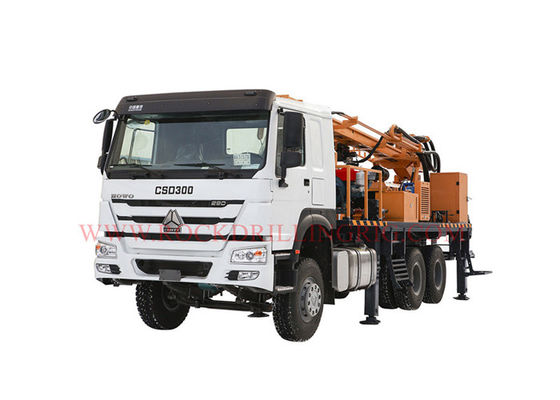

Truck mounted well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
Pictures
Packing & Delivery
