Product Details:
|
| Name: | CSD300 | Drill System And Operation: | Hydraulic |
|---|---|---|---|
| Hole Diameter: | Φ140—Φ450 | Hole Depth: | 300m |
| Rotation Torque: | 4800-6500Nm | Rotation Speed: | 60-120rpm |
| Drill Pipe Diameter: | 89/114mm | Drill Pipe Length: | 4000/4500mm |
| Max.Push Down Capacity: | 5T | Max.Pull Up Capacity: | 16T |
| High Light: | Csd300 portable water drilling rig,300M portable water drilling rig,Csd 300 water drilling rig |
||
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & Mud Rotary | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ140-Φ450 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 4800-6500 |
| 7 | Rotation Speed | rpm | 60-120 |
| 8 | Drill pipe diameter | mm | 89/114 |
| 9 | Drill pipe length | mm | 4000/4500 |
| 10 | Max.Push down capacity | T | 5 |
| 11 | Max.Pull up capacity | T | 16 |
| Winch | |||
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Length of steel wire rope(tool winch) | m | 100 |
| 15 | Lifting height of tool winch | m | 8 |
| Engine | |||
| 16 | Diesel Engine type | YUCHAI | |
| 17 | Rated Horse power | Kw | 70 |
| 18 | Electrical System | Volt | 24 |
| Compressor required | |||
| 19 | Compressor Type | Rotary Screw/Movable | |
| 20 | Pressure Required | Mpa | 1.05-4.5 |
| 21 | Air consumption | m³/min | 16-60 |
| Truck | |||
| 22 | Manufacturer | SINOTRUCK HOWO | |
| 23 | Model | ZZ1257M5847C | |
| 24 | Engine | WD615.93C | |
| 25 | Rated Horse power | Hp | 290 |
| 26 | Discharge Standard | EU-2 | |
| 27 | Drive type | 6*4 | |
| 28 | Max.Speed | Km/h | 102.9 |
| 29 | Steering wheel | left/right(Optional) | |
| Mud Pump | |||
| 30 | Power Type | Diesel engine | |
| 31 | Model | BW450 | |
| 32 | Stroke | mm | 110 |
| 33 | Displacement | L/Min | 450 |
| 34 | Discharge pressure (Mpa) | Mpa | 5 |
| Dimension | |||
| 35 | Net Weight | T | 20 |
| 36 | Shipping Length | mm | 11200 |
| 37 | Shipping Width | mm | 2500 |
| 38 | Shipping Height | mm | 3200 |
| 39 | Working size(L*W*H) | mm | 11000*2480*7147 |

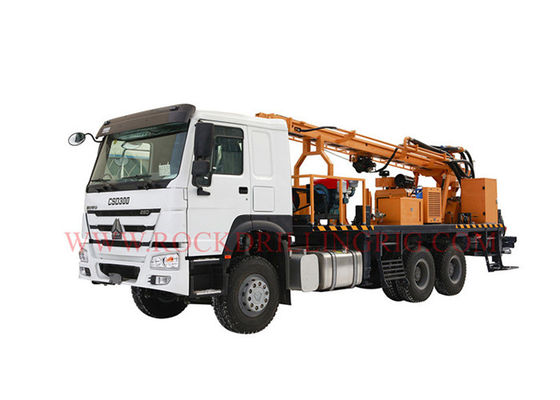

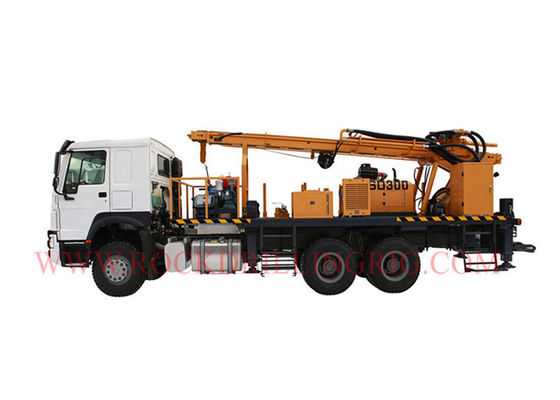

Pictures
