|Model:||CSD200A||Drilling Type:||DTH & Mud Rotary|
|Drill System And Operation:||Hydraulic||Hole Diameter:||Φ140—Φ450mm|
|Hole Depth:||200m||Rotation Torque:||3050-6100Nm|
|Rotation Speed:||60-120rpm||Drill Pipe Diameter:||89/102/114|
|Drill Pipe Length:||3000/4500mm||Max.Pull Down Capacity:||85KN|
|Max.Pull Back Capacity:||16T|
200m water well drilling rig machine,
CSD200A Drilling Rig Machine,
CSD200A Water Well Drilling Rig Machine

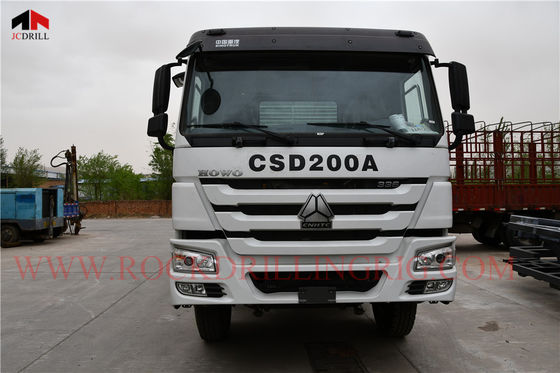

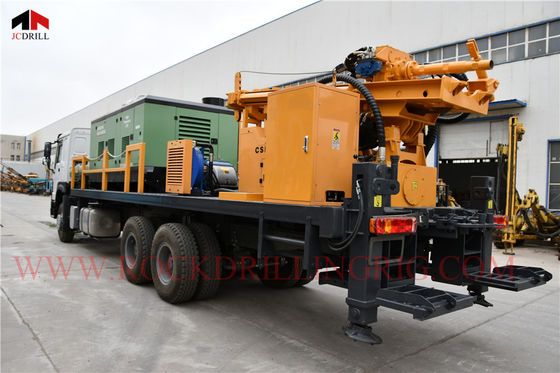

CSD200A Truck Mounted Water Well Drilling Rig
1. This model water well drilling rig is flexible.
2. Small models, easy access in and out.
3. To ensure adequate torque and lift force under the premise of simple and reliable design, can be widely applied to the civilian market.
|1||Geology drilled||All kinds|
|2||Drilling Type||DTH & Mud Rotary|
|3||Drill system and operation||Hydraulic|
|8||Drill pipe diameter||mm||89/114|
|9||Drill pipe length||mm||4000/4500|
|10||Max.Push down capacity||T||5|
|11||Max.Pull up capacity||T||16|
|12||Lifting force of Main winch(Optional)||T||4|
|13||Lifting force of hoist||T||1.5|
|14||Length of steel wire rope(tool winch)||m||100|
|15||Lifting height of tool winch||m||8|
|16||Diesel Engine type||YUCHAI|
|17||Rated Horse power||Kw||70|
|19||Compressor Type||Rotary Screw/Movable|
|25||Rated Horse power||Hp||290|
|30||Power Type||Diesel engine|
|34||Discharge pressure (Mpa)||Mpa||5|
Packing & Delivery
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
