102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig

102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig
102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig 102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig

Large Image :  102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO, CE
Model Number: CSD200A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig

Description
Model: CSD200A Drilling Type: DTH & Mud Rotary
Drill System And Operation: Hydraulic Hole Diameter: Φ140—Φ450mm
Hole Depth: 200m Rotation Torque: 3050-6100Nm
Rotation Speed: 60-120rpm Drill Pipe Diameter: 89/102/114
Drill Pipe Length: 3000/4500mm Max.Pull Down Capacity: 85KN
Max.Pull Back Capacity: 16T
High Light:

JCDRILL CSD200A

,

102mm Water Well Drilling Rig

,

YUCHAI Water Well Drilling Rig

CSD200A Truck Mounted Water Well Drilling Rig,



Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140-Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 4800-6500
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 4000/4500
10 Max.Push down capacity T 5
11 Max.Pull up capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 70
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05-4.5
21 Air consumption m³/min 16-60
Truck
22 Manufacturer   SINOTRUCK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power Hp 290
26 Discharge Standard   EU-2
27 Drive type   6*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left/right(Optional)

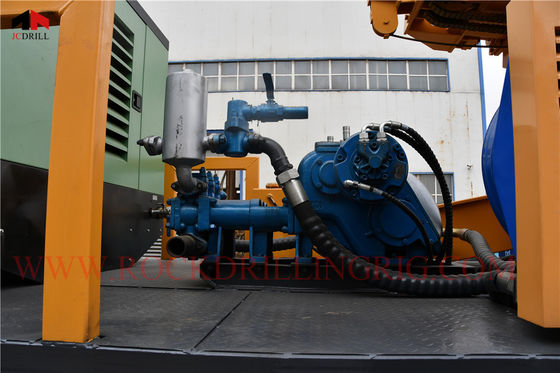

Mud Pump
30 Power Type   Diesel engine
31 Model   BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 5
Dimension
35 Net Weight T 20
36 Shipping Length mm 11200
37 Shipping Width mm 2500
38 Shipping Height mm 3200
39 Working size(L*W*H) mm 11000*2480*7147

Pictures

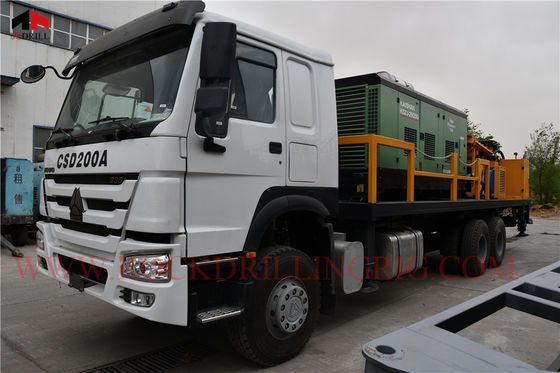

102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig 0

102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig 1

102mm JCDRILL CSD200A YUCHAI Water Well Drilling Rig 2
