YUCHAI Engine 200 Meters DTH Water Drilling Machine

YUCHAI Engine 200 Meters DTH Water Drilling Machine
YUCHAI Engine 200 Meters DTH Water Drilling Machine YUCHAI Engine 200 Meters DTH Water Drilling Machine

Large Image :  YUCHAI Engine 200 Meters DTH Water Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO, CE
Model Number: CSD200A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

YUCHAI Engine 200 Meters DTH Water Drilling Machine

Description
Model: CSD200A Drilling Type: DTH & Mud Rotary
Drill System And Operation: Hydraulic Hole Diameter: Φ140—Φ450mm
Hole Depth: 200m Rotation Torque: 3050-6100Nm
Rotation Speed: 60-120rpm Drill Pipe Diameter: 89/102/114
Drill Pipe Length: 3000/4500mm Max.Pull Down Capacity: 85KN
Max.Pull Back Capacity: 16T
High Light:

DTH water drilling machine

,

200 Meters water drilling machine

,

YUCHAI Engine Water Drilling Machine

CSD200A Truck Mounted Water Well Drilling Rig



Introduce

1. This model water well drilling rig is light-weight and flexible.

2. Small models, easy access in and out.

3. To ensure adequate torque and lift force under the premise of simple and reliable design, can be widely applied to the civilian market.

Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140-Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 4800-6500
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 4000/4500
10 Max.Push down capacity T 5
11 Max.Pull up capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 70
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05-4.5
21 Air consumption m³/min 16-60
Truck
22 Manufacturer   SINOTRUCK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power Hp 290
26 Discharge Standard   EU-2
27 Drive type   6*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left/right(Optional)
Mud Pump
30 Power Type   Diesel engine
31 Model   BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 5
Dimension
35 Net Weight T 20
36 Shipping Length mm 11200
37 Shipping Width mm 2500
38 Shipping Height mm 3200
39 Working size(L*W*H) mm 11000*2480*7147

Pictures

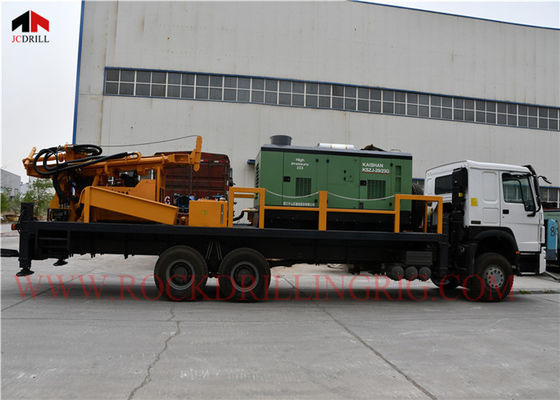

YUCHAI Engine 200 Meters DTH Water Drilling Machine 0

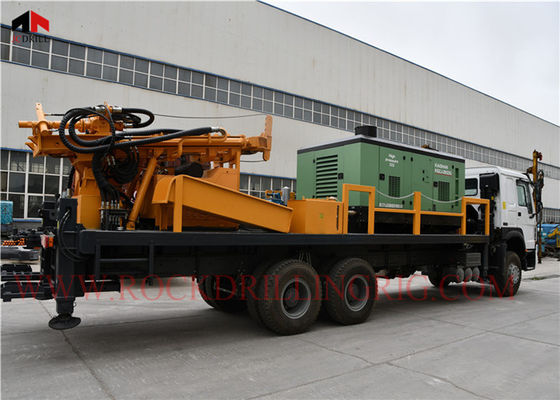

YUCHAI Engine 200 Meters DTH Water Drilling Machine 1

YUCHAI Engine 200 Meters DTH Water Drilling Machine 2

Packing & Delivery

YUCHAI Engine 200 Meters DTH Water Drilling Machine 3

FAQ

Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
