Hydraulic Rotary Drilling Rig

Hydraulic Rotary Drilling Rig
Hydraulic Rotary Drilling Rig Hydraulic Rotary Drilling Rig

Large Image :  Hydraulic Rotary Drilling Rig

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY400T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

Hydraulic Rotary Drilling Rig

Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 1950kg
Warranty: 1year Hole Depth: 400m
Usage: Water Well Dimension(L*W*H): 4300*1600*2800mm
Hole Diameter: 75-400mm Type: Rotary Drilling Rig,Core Drilling Rig
High Light:

Hydraulic Rotary Drilling Rig


400m Water Well Drilling Rig

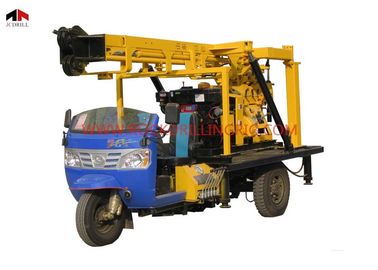

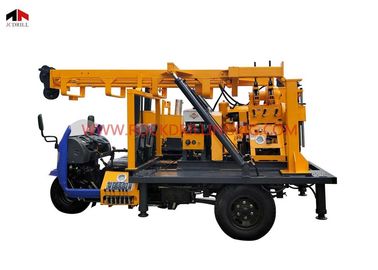

JXY400T Tricycle Mounted Water Well Drilling Rig Hydraulic Rotary Drilling Rig


JCDRILL Water Well Drill Rig

JXY400T muntipurpose three wheel vehicle mounted hydraulic spindle core bore drilling machine is designed for Geological survey and prospecting, exploration roads and high-rise building foundation, as well as a variety of concrete structure inspection holes, rivers and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.


JXY400T is a multi-function hydraulic vehicle mounted rotary spindel drilling rig. It adopts three-wheel chassis 7YP-1475D1, the drive systems, hoist and mud pump are mounted on this chassis, reasonably compacted layout, easy to operate.

It configures BW-250 mud pump, high pressure, big flow, which can ensure drilling depth and diameter.
The rig has shifting device, it can move on the vehicle, convenient to operate while drilling.
The hydraulic folding mast is safe and convenient to operate.


The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.


Hydraulic Rotary Drilling Rig 0

Description JXY400T
Drilling depth 30-400m
Drilling diameter 300-75mm
Max.Hole Diameter 500mm
Drilling Angel 90-75°
Mast height 7000mm
Mast effective height 6500mm
Kelly/active pipe 59*53mm
Weight 50kgs
Structure Ball bearing
Spindle rotating speed 50-1150r/min
Spindle stroke 6000mm
Soline Max.Torque 3500N.m
Max.Hoisting Capacity 4000kg
Tight rope cubic caliber 14mm
hoisting speed 17,35,75,151r/s
Wireline diameter 12.5mm
Main hoisting line capacity 30m
Power Unit
Model 15kw/2200rpm
Rated power 17.8KW
Mud pump
Rated flow 160/200L/min
Rated pressure 1.3/4Mpa
Driving power 5.15kw
main machine weight 190kg
Demension 1110*725*965mm
Drill Pipe
Drill pipe length 4.2m
Drill pipe diameter 42/50/60mm
Model 7YP-1475D1
Drive mode Rear-wheel drive
Power Model ZS1115E2
emission standard GB18322-2002,GB19756-2005(Ⅱ)
Rated power 16.2kw
Rotating speed 2200rpm
Stabilizing Jack
2 front jacks and 2 rear jacks.
Type Hydraulic
Stroke 350 mm
Overall length 4300 mm
Overall width 1600 mm
Overall height 2800 mm


Hydraulic Rotary Drilling Rig 1


Hydraulic Rotary Drilling Rig 2


Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them


A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
