|Type:||6 X 4 SINOTRUK HOWO Truck Water Well Drilling Rig||Drilling Depth:||1200m|
|Drilling Diameter:||140-450mm||Drilling Method:||Mud Rotary And Air DTH|
|Drill Pipe Length:||6m /4.5m||Drill Pipe Diameter:||102 /114/127mm|
|Truck Chassis:||8 X 4 SINOTRUK HOWO||Warranty:||One Year|
|Power Type:||Diesel||Usage:||Water Well Drilling Rig|
|Weight:||30T||Color:||As Customer's Requirement|
DTH Water Well Drilling Rig,
1200m Water Well Drilling Rig

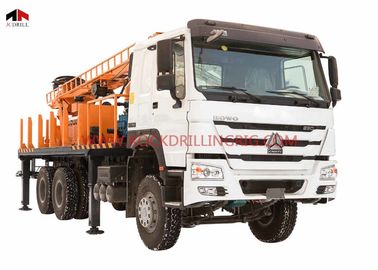

1200 Meters Deep Water Well Drilling Rig Mounted on 6 x 4 SINOTRUK HOWO Truck
CSD1200 6 X 4 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulicwater well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainlyused for water well in industry and agriculture, national defense building foundation, geological exploration,geothermic well and other foundation working, it is popular at home and abroad.
CSD1200 6 X 4 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation andair DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressureand the offstage efficiency is ten times than traditional rotary drilling.
CSD1200 6 X 4 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidatedlayer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted andslag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicatedgeological conditions.
1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6 X 4 special crane chassis of brand Sinotruck Howo and the main drive system,the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW1500/12 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and110rpm stepless adjustment and the rotary torqueis 9600-24500Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on theweathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydrauliccontrolled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, guide dumping.
13. Competitive in price, low cost of maintain.
|1||Geology drilled||All kinds|
|2||Drilling Type||DTH & Mud Rotary|
|3||Drill system and operation||Hydraulic|
|6||Rotation Torque||Nm||9600 1st Gear|
|24500 2nd Gear|
|7||Rotation Speed||rpm||0-80 1st Gear|
|0-110 2nd Gear|
|8||Drill pipe diameter||mm||76/89/102/114|
|9||Drill pipe length||mm||6000/4500|
|10||Max. Lifting force||N||12000|
|11||Max. Feed Speed||m/min||18|
|12||Lifting force of Main winch(Optional)||T||4|
|13||Lifting force of hoist||T||2.5|
|14||Length of steel wire rope(tool winch)||m||100|
|15||Lifting height of tool winch||m||8|
|16||Diesel Engine type||CUMMINS|
|17||Rated Horse power||Kw||132|
|19||Compressor Type||Rotary Screw/Movable|
|25||Rated Horse power||HP||336|
|27||Drive type||6 * 4|
|29||Steering wheel||left /right (optional)|
|34||Discharge pressure (Mpa)||Mpa||2-5|
|35||Suction tube diameter||mm||89|
|36||Discharge pipe diameter||mm||51|
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
