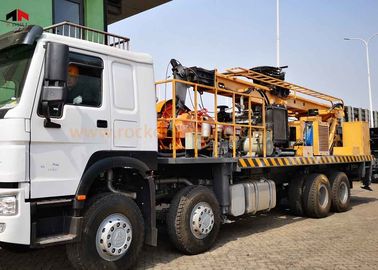

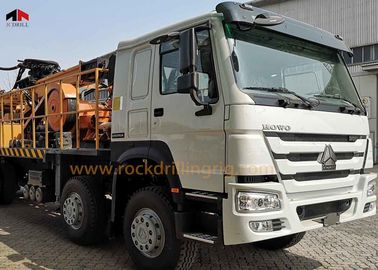

Air DTH Truck Mounted 1500m Water Well Drilling Machine

Air DTH Truck Mounted 1500m Water Well Drilling Machine
Air DTH Truck Mounted 1500m Water Well Drilling Machine Air DTH Truck Mounted 1500m Water Well Drilling Machine

Large Image :  Air DTH Truck Mounted 1500m Water Well Drilling Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD1500 8X4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: Bulk Ship
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 set per year

Air DTH Truck Mounted 1500m Water Well Drilling Machine

Description
Type: 8 X 4 Heavy Duty Truck Water Well Drilling Rig Drilling Depth: 1500m
Drilling Diameter: 140-450mm Drilling Method: Mud Rotary And Air DTH
Drill Pipe Length: 6m /4.5m Drill Pipe Diameter: 102 /114/127mm
Truck Chassis: 8 X 4 SINOTRUK HOWO Engine: CUMMINS
Warranty: One Year Power Type: Diesel
Truck Color: White Usage: Water Well Drilling Rig
Weight: 30T
High Light:

1500m water well drilling machine

,

Truck Mounted Borehole Drilling Rig

1500 Meters Deep Water Well Drilling Rig Powerful Truck Mounted Borehole Drilling Machine



Application

CSD1500 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulicwater well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainlyused for water well in industry and agriculture, national defense building foundation, geological exploration,geothermic well and other foundation working, it is popular at home and abroad.


CSD1500 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation andair DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressureand the offstage efficiency is ten times than traditional rotary drilling.



CSD1500 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidatedlayer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted andslag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicatedgeological conditions.

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling. 2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system,
the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the
chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW1500/12 mud pump
which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable
drilling bit.

5. The power of drilling rig comes from a CMS engine,132kw CMS engine drives the large displacement
high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and110rpm stepless adjustment and the rotary torque
is 9600-24500Nm.

7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.

9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on theweathering formation.

10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydrauliccontrolled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T,rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, guide dumping.

13. Competitive in price, low cost of maintain.

Air DTH Truck Mounted 1500m Water Well Drilling Machine 0

Specification
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 00
6 Rotation Torque Nm 9600 1st Gear
24500 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-110 2nd Gear
8 Drill pipe diameter mm 76/89/102/114
9 Drill pipe length mm 6000/4500
10 Max. Lifting force N 12000
11 Max. Feed Speed m/min 18
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 2.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type CUMMINS
17 Rated Horse power Kw 132
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
Truck
22 Manufacturer   SINOTRUK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power KW 245
26 Discharge Standard   EU-3
27 Drive type   8 * 4
28 Max.Speed Km/h 102.9
29 Steering wheel   left /right (optional)
Mud Pump
30 Type   Hydraulic
31 Model   BW850
32 Stroke mm 110
33 Displacement L/Min 850
34 Discharge pressure (Mpa) Mpa 2-5
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
Generator
46 Generator   Optional
Dimension
46 Net Weight T 30
47 Shipping Length mm 12500
48 Shipping Width mm 2480
49 Shipping Height mm 3650
50 Working size(L*W*H) mm 12500*2480*7147
Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.





Contact Details
Beijing Jincheng Mining Technology Co., Ltd.

Contact Person: Ms. Sekura Yu

Tel: +8613811398425

Fax: 86-10-57159802

Send your inquiry directly to us (0 / 3000)
