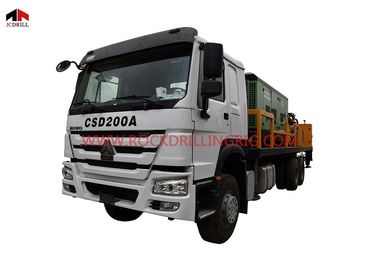

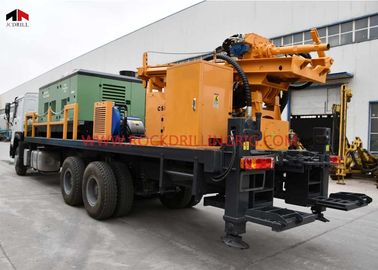

Truck Mounted Hydraulic 200m Water Well Drilling Rig

Truck Mounted Hydraulic 200m Water Well Drilling Rig
Truck Mounted Hydraulic 200m Water Well Drilling Rig Truck Mounted Hydraulic 200m Water Well Drilling Rig

Large Image :  Truck Mounted Hydraulic 200m Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD200A 6 X 4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Bulk Ship and 20GP Container
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 set per year

Truck Mounted Hydraulic 200m Water Well Drilling Rig

Type: 6 X 4 Truck Water Well Drilling Rig With Air Compressor Drilling Depth: 200m
Drilling Diameter: 90-325mm Drilling Method: Mud Rotary And Air DTH
Usage: Water Well Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power Type: Diesel
Condition: New Color: As Customers Requirement
High Light:

200m Water Well Drilling Truck


Truck Mounted Borehole Drilling Rig

200m Combined Truck Mounted Water Well Drilling Rig Borehole Drilling Machine with Air Compressor



CSD200A 6 x 4 is a new type of efficient and versatile truck mounted water well drilling rig with air compressor being mounted on. It is mainly applicable to the drilling process of water wells, monitoring wells and geothermal wells, etc. Hot saling and well received by marketing.

CSD200A 6 X 4 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CSD200A 6 X 4 200 meters depth water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.


1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250/BW450(Optional) mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a Yuchai engine,93kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-100rpm stepless adjustment and the rotary torque is 4500-6000Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.

9.  Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. Air compressor is inbuilt on the truck drilling machine.

12. Competitive in price, low cost of maintain.

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ90—Φ325
5 Hole Depth m 300
6 Rotation Torque Nm 4500 1st Gear
6000 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-100 2nd Gear
8 Drill pipe diameter mm 89/102/114
9 Drill pipe length mm 3000
10 Max. Lifting force N 8000
11 Max. Feed Speed m/min 18
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 93
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
22 Manufacturer   SINOTRUK HOWO
23 Model   ZZ1257M5841W
24 Engine   WD615.62
25 Rated Horse power kw 196
26 Discharge Standard   EU-3
27 Drive type   6*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left/right (optional)
Mud Pump
30 Type   Hydraulic
31 Model   BW450/BW250
32 Stroke mm 110
33 Displacement L/Min 450/250
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
46 Generator   Optional
46 Net Weight T 18
47 Shipping Length mm 12500
48 Shipping Width mm 2500
49 Shipping Height mm 3500
50 Working size(L*W*H) mm 12500*2500*7147
Packing& Delivery
Truck Mounted Hydraulic 200m Water Well Drilling Rig 0


Rotary Mobile Borehole Drilling Machine , Truck Mounted Water Well Drilling Equipment

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
