Product Details:
|
Name: | 8 X 4 Truck Mounted Water Well Drilling Rig | Truck: | 8 X 4 SINOTRUK HOWO |
---|---|---|---|
Drilling Depth: | 1000m | Drilling Diameter: | 140-650mm |
Drilling Method: | Mud Rotary And Air DTH | Drill Pipe Length: | 4m / 4.5 / 6m |
Drill Pipe Diameter: | 102 /114/127mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Engine: | CUMMINS | Power Type: | Diesel |
Color: | Yellow ,White | Weight: | 28 T |
Condition: | New | ||
Highlight: | 1000m Hydraulic Drilling Rig,DTH Hydraulic Drilling Rig |

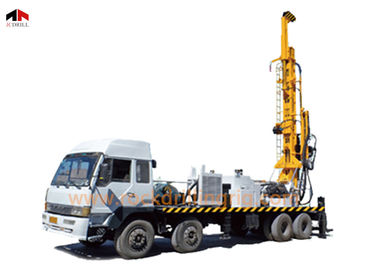

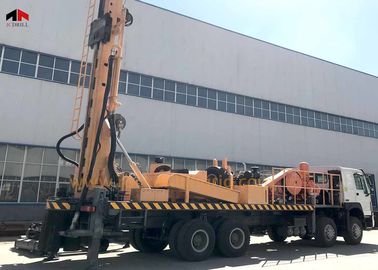

28 T Weight Water Well Drilling Rig, 8 x 4 SINOTRUK HOWO Truck Mounted 1000m Hydraulic Drilling Rig
Application
CSD1000 8 x 4 SINOTRUK HOWO truck mounted water well drilling rig, is efficient and multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures.
CSD1000 8 x 4 is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating.
CSD1000 8 x 4 can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements, is currently the strongest drilling rig in China!
Characteristics
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary
time and enhance the work efficiency.
3. The truck chassis adopts the 8X4 special crane chassis of brand SINOTRUK HOWO and the main drive system, the transfer case, gearbox,
double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW850 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a CUMMINS engine,132kw CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-110rpm stepless adjustment and the rotary torque is 9600-24500Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. Competitive in price, low cost of maintain.
1 | Geology drilled | All kinds | |
2 | Drilling Type | DTH & Mud Rotary | |
3 | Drill system and operation | Hydraulic | |
4 | Hole Diameter | mm | Φ140—Φ650 |
5 | Hole Depth | m | 1000 |
6 | Rotation Torque | Nm | 9600 1st Gear |
24500 2nd Gear | |||
7 | Rotation Speed | rpm | 0-80 1st Gear |
0-110 2nd Gear | |||
8 | Drill pipe diameter | mm | 76/89/102/114 |
9 | Drill pipe length | mm | 4000/4500 |
10 | Max. Lifting force | N | 10000 |
11 | Max. Feed Speed | m/min | 18 |
Winch | |||
12 | Lifting force of Main winch(Optional) | T | 4 |
13 | Lifting force of hoist | T | 0.8 |
14 | Length of steel wire rope(tool winch) | m | 100 |
15 | Lifting height of tool winch | m | 8 |
Engine | |||
16 | Diesel Engine type | CUMMINS | |
17 | Rated Horse power | Kw | 179 |
18 | Electrical System | Volt | 24 |
Compressor required | |||
19 | Compressor Type | Rotary Screw/Movable | |
20 | Pressure Required | Mpa | 1.2—3 |
21 | Air consumption | m³/min | 11—35 |
Truck | |||
22 | Manufacturer | SINOTRUK HOWO | |
23 | Model | ZZ1257M5847C | |
24 | Engine | WD615.93C | |
25 | Rated Horse power | KW | 245 |
26 | Discharge Standard | EU-3 | |
27 | Drive type | 8 * 4 | |
28 | Max.Speed | Km/h | 102.9 |
29 | Steering wheel | left /right (optional) | |
Mud Pump | |||
30 | Type | Hydraulic | |
31 | Model | BW850 | |
32 | Stroke | mm | 110 |
33 | Displacement | L/Min | 850 |
34 | Discharge pressure (Mpa) | Mpa | 2-5 |
35 | Suction tube diameter | mm | 89 |
36 | Discharge pipe diameter | mm | 51 |
37 | Liner Diameter | mm | 80 |
Hydraulic Welder | |||
38 | Mnufacturer | Dynaset | |
39 | Welding current | A | 60-250 |
40 | Hydraulic Min.oilflow | L/min | 42 |
41 | Nom/Max Pressure | Bar | 190/210 |
42 | Voltage | V | 110/220VDC |
43 | Power | Kw | 102 |
44 | L*W*H | mm | 390*190*230 |
45 | Foam pump | Optional | |
Generator | |||
46 | Generator | Optional | |
Dimension | |||
46 | Net Weight | T | 28 |
47 | Shipping Length | mm | 10500 |
48 | Shipping Width | mm | 2480 |
49 | Shipping Height | mm | 3650 |
50 | Working size(L*W*H) | mm | 11000*2480*7147 |
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
