22 Tons Hydraulic Water Well Borehole Drilling Rig

22 Tons Hydraulic Water Well Borehole Drilling Rig

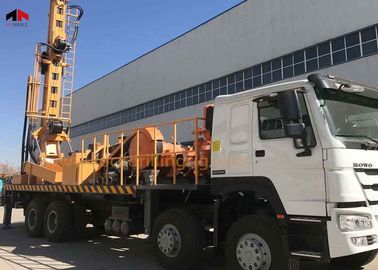

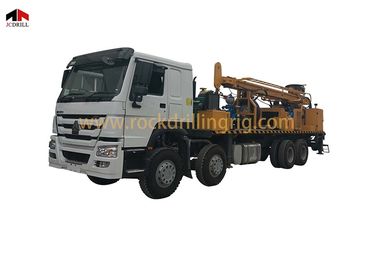

22 Tons Hydraulic Water Well Borehole Drilling Rig 22 Tons Hydraulic Water Well Borehole Drilling Rig

Large Image :  22 Tons Hydraulic Water Well Borehole Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001
Model Number: CSD600 8X4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotation
Packaging Details: Bulk Ship
Delivery Time: 60 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 set per year

22 Tons Hydraulic Water Well Borehole Drilling Rig

Description
Type: 8 X 4 Truck Water Well Drilling Rig Drilling Depth: 600m
Drilling Diameter: 140-450mm Drilling Method: Mud Rotary And Air DTH
Warranty: One Year Drill Pipe Length: 3m /4.5m
Drill Pipe Diameter: 89 /102 /114mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
Engine: CUMMINS Truck Chassis: 8x4 SINOTRUK HOWO
Geology Drilled: All Kind Weight: 22 Tons
High Light:

Water Well Borehole Drilling Rig

,

Hydraulic Borehole Drilling Rig

8 X 4 Truck Mounted Water Well Drilling Rig, 600 m Water Well Borehole Drilling Rig



Application

CSD600 8 x 4 SINOTRUK HOWO truck mounted water well drilling rig, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.
The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

Characteristics

1. The drilling rig can use air DTH Hammer drilling and mud drilling.

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary
time and enhance the work efficiency.

3. The truck chassis adopts the 8X4 special crane chassis of brand SINOTRUK HOWO and the main drive system, the transfer case, gearbox,
double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4. It's a hydraulic rotary drilling rig with directional circulation. It is equipped with BW850 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5. The power of drilling rig comes from a CUMMINS engine,132kw CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,rotation speed is 0-110rpm stepless adjustment and the rotary torque is 4500-11000Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.

9.  Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.

11. Competitive in price, low cost of maintain.

22 Tons Hydraulic Water Well Borehole Drilling Rig 0

Specification
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140—Φ450
5 Hole Depth m 600
6 Rotation Torque Nm 4500 1st Gear
11000 2nd Gear
7 Rotation Speed rpm 0-80 1st Gear
0-100 2nd Gear
8 Drill pipe diameter mm 76/89/102/114
9 Drill pipe length mm 4000/4500
10 Max. Lifting force N 10000
11 Max. Feed Speed m/min 18
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 0.8
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type CUMMINS
17 Rated Horse power Kw 132
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.2—3
21 Air consumption m³/min 11—35
Truck
22 Manufacturer   SINOTRUK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power KW 245
26 Discharge Standard   EU-3
27 Drive type                       8*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left /right (optional)
Mud Pump
30 Type   Hydraulic
31 Model   BW850
32 Stroke mm 110
33 Displacement L/Min 850
34 Discharge pressure (Mpa) Mpa 2-3
35 Suction tube diameter mm 89
36 Discharge pipe diameter mm 51
37 Liner Diameter mm 80
Hydraulic Welder
38 Mnufacturer   Dynaset
39 Welding current A 60-250
40 Hydraulic Min.oilflow L/min 42
41 Nom/Max Pressure Bar 190/210
42 Voltage V 110/220VDC
43 Power Kw 102
44 L*W*H mm 390*190*230
45 Foam pump   Optional
Generator
46 Generator   Optional
Dimension
46 Net Weight T 22
47 Shipping Length mm 10500
48 Shipping Width mm 2480
49 Shipping Height mm 3050
50 Working size(L*W*H) mm 11000*2480*7147
Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
