|Type:||Agricultural Hydroponics||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support|
|Usage:||Water Well||Power Type:||Diesel|
|Certification:||ISO9001||Voltage:||Diesel Engine Driven|
|Product Name:||Water Well Drilling Rig||Power(w):||190KW|
|Drilling Depth:||200m||Application:||Water Well Drilling Rig Mobile Drilling Rig|
|Drilling Diameter:||150 - 505mm||Engine:||YUCHAI,diesel Engine|
|Name:||Truck Mounted Water Well Drilling Rig||Color:||Yellow|
water well drilling equipment,
water well drilling machine

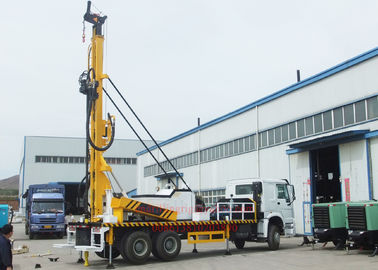

DTH Truck Mounted Water Well Drilling Rig Machine 200m Full Hydraulic Type
CSD200 6 x 4 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD200 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It’s a hydraulicrotary drilling rig with directional circulation. It is equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a YUCHAI engine,93kw YUCHAI engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 4800-6500Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. Competitive in price, low cost of maintain.
|1||Geology drilled||All kinds|
|2||Drilling Type||DTH & Mud Rotary|
|3||Drill system and operation||Hydraulic|
|6||Rotation Torque||Nm||4800 1st Gear|
|6500 2nd Gear|
|7||Rotation Speed||rpm||0-80 1st Gear|
|0-160 2nd Gear|
|8||Drill pipe diameter||mm||89/102/114|
|9||Drill pipe length||mm||3000/4500|
|11||Max. Lifting force||T||18|
|12||Lifting force of Main winch(Optional)||T||4|
|13||Lifting force of hoist||T||1.5|
|14||Length of steel wire rope(tool winch)||m||100|
|15||Lifting height of tool winch||m||8|
|16||Diesel Engine type||YUCHAI|
|17||Rated Horse power||Kw||93|
|19||Compressor Type||Rotary Screw/Movable|
|25||Rated Horse power||kw||196|
|34||Discharge pressure (Mpa)||Mpa||2-3|
|35||Suction tube diameter||mm||89|
|36||Discharge pipe diameter||mm||51|
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
