300m Water Well Drilling Rig

300m Water Well Drilling Rig
300m Water Well Drilling Rig 300m Water Well Drilling Rig 300m Water Well Drilling Rig 300m Water Well Drilling Rig 300m Water Well Drilling Rig

Large Image :  300m Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: CWD400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard Export Packing
Delivery Time: One Week
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Year

300m Water Well Drilling Rig

Condition: New Power Type: Diesel Engine
Drilling Depth: 300m Drilling Diameter: 105-450mm
Rotation Torque: 4800N.M Rotation Speed: 0-115RPM
Drill Pipe Dia: 89/102/114mm Drill Pipe Length: 3000mm
Lifting Force: 12ton Diesel Engine: 70KW
Dimension: 5800x2210x2850mm Weight: 8 T
Color: Customized Drilling Method: DTH&Mud Drilling
High Light:

300m water well drilling rig


115RPM water well drilling rig


70KW water well drilling rig

Industrial Water Well Drilling Rig Crawler Mounted Dth Hydraulic Machine
CWD300 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CWD300 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Yuchai engine,80KW drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and 160rpm stepless adjustment and the rotary torque is 6900Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
12. Competitive in price, low cost of maintain.

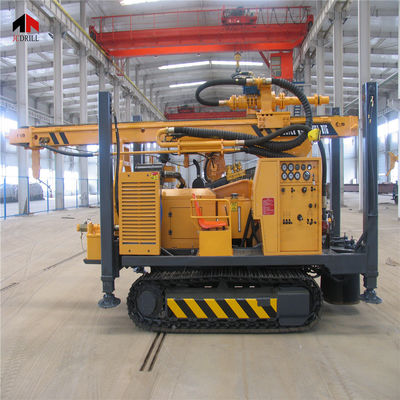

300m Water Well Drilling Rig 0

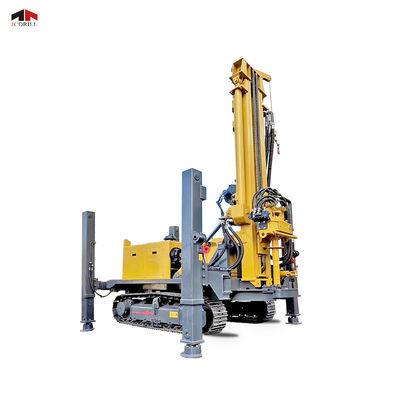

300m Water Well Drilling Rig 1

1.Overall parameters
Drilling depth 100-1000 m
Maximum open hole caliber 140-450 mm
Diameter of drill rod 89/102/114 mm
Drilling Type DTH & Mud Rotary
Drilling angle 90~75
Rotation Speed 0-120 RPM
Lifting Force 5-25 T
Weight 9-20 T
Dimension 5800*2210*2850 mm
2.Diesel Engine
Brand Yuchai/Cummins
Power 80-140KW
Net Weight 5 T
Shipping Length 3800mm
Shipping Width 1700mm
Shipping Height 2350mm
Ground Clearance 300mm

 Packing Delivery
300m Water Well Drilling Rig 2
