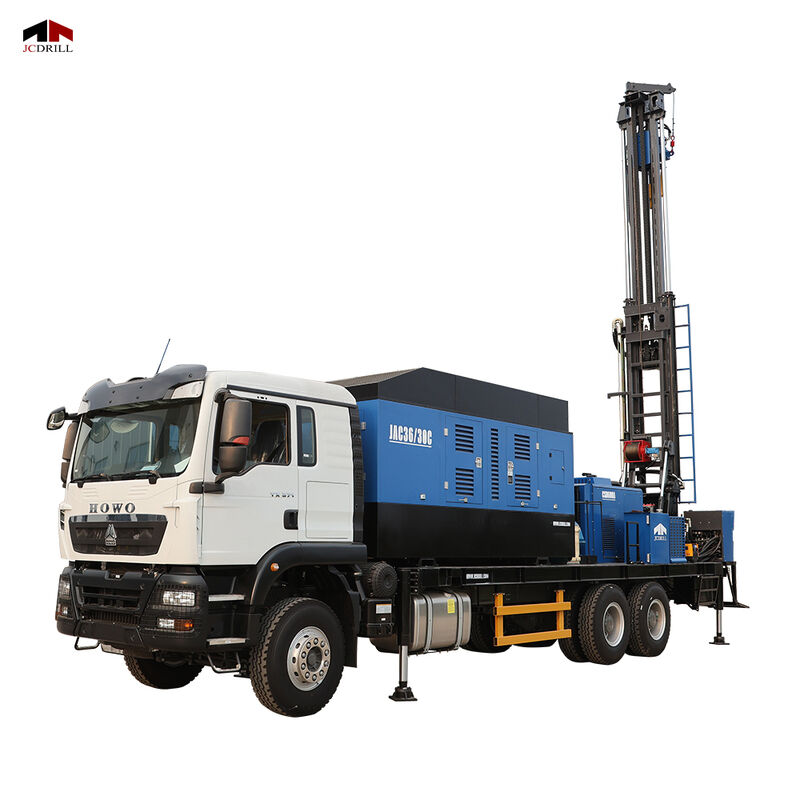

CSD600A HOWO Truck Mounted Integrated Water Well Drilling Rig

Name: CSD600A HOWO Truck Mounted Integrated Water Well Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CSD600A
Price: 120000 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CSD600A
MOQ:	1 set
Price:	Negotation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 set per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Type:

6 X 4 Combined Truck Water Well Drilling Rig

Drilling Depth:

600m

Drilling Diameter:

140-450mm

Drilling Method:

Mud Rotary And Air DTH

Warranty:

12 Months

Drill Pipe Length:

4m /4.5m

Drill Pipe Diameter:

89 / 102 /114/127mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Certification:

ISO9001

Voltage:

Diesel Engine Driven

Engine:

CUMMINS 132KW

Power Type:

Diesel

Condition:

New

Packaging Details:

Bulk Ship and 20GP Container

Supply Ability:

2000 set per year

Highlight:

HOWO truck mounted drilling rig

integrated water well drilling rig

CSD600A water well drilling rig

Product Description

CSD600A HOWO Truck Mounted Integrated Water Well Drilling Rig

The CSD600A is a multi-functional full hydraulic truck mounted water well drilling rig designed for water well drilling, geological exploration, geothermal well projects, and foundation works. It supports both mud rotary drilling and DTH hammer drilling, offering strong torque, stable power, and efficient performance in soft soil, sand, clay, and rock formations.

Technical Specifications

Specification	CSD600A
Geology Drilled	All kinds DTH and Mud Rotary
Operation System	Hydraulic
Hole Diameter	90 to 500 mm
Hole Depth	600 m
Rotation Torque	7500 to 15000 N.m
Rotation Speed	80 to 125 rpm
Drill Pipe Diameter	89, 102, 114, 127 mm
Drill Pipe Length	4500 or 6000 mm
Max Pull Up Capacity	38 ton
Max Push Down Capacity	6 ton
Feed Stroke	3700 mm
Lifting Force of Hoist	2.5 ton
Steel Rope Length	40 m
Diesel Engine Type	Cummins
Rated Power	132 kW
Speed	2200 rpm
Manufacturer	Sinotruk HOWO
Rated Horsepower	400 HP
Drive Type	6x4 or 8x4
Steering Wheel	Left or Right Optional
Flow Rate	40 m³/min
Pressure	30 bar
Driven Type	Diesel Engine
Displacement	450 or 850 L/min
Discharge Pressure	2 or 5 MPa
Net Weight	22.5 ton
Shipping Dimension	11800 x 2550 x 3650 mm

Key Features

Dual Drilling Methods

Supports both mud drilling and air DTH hammer drilling, allowing adaptation to different ground conditions with one machine.

Strong Drilling Capacity

Maximum drilling depth of 600 m and hole diameter range from 90 mm to 500 mm for deep and wide borehole applications.

High Torque Rotary System

Rotary head delivers 7500 to 15000 N.m torque with stepless speed adjustment from 80 to 125 rpm.

Truck Mounted Integrated Structure

Mounted on Sinotruk HOWO 6x4 or 8x4 chassis with integrated components for improved mobility.

Reliable Hydraulic Power

Hydraulically controlled main drive, landing legs, drilling tower, transfer case, and mud pump clutch system.

Applications

Water well drilling, industrial water supply projects, agricultural irrigation wells, geological exploration, geothermal well drilling, national defense and infrastructure foundation works, construction foundation drilling, and deep borehole drilling in soft soil, sand, clay, and rock formations.

Frequently Asked Questions

What drilling methods does the CSD600A support?

It supports both mud rotary drilling and air DTH hammer drilling.

What is the maximum drilling depth of the CSD600A?

The maximum drilling depth is 600 m.

What is the hole diameter range?

The hole diameter range is 90 mm to 500 mm.

What chassis does the rig use?

It uses a Sinotruk HOWO truck chassis, available in 6x4 or 8x4 drive type.

What engine powers the rig?

The rig is powered by a Cummins diesel engine rated at 132 kW.

What drill pipe sizes are supported?

The rig supports drill pipe diameters of 89 mm, 102 mm, 114 mm, and 127 mm, with lengths of 4500 mm or 6000 mm.

Can the rig work in hard rock formations?

Yes. When equipped with suitable tools, it can work in rock formations using air DTH hammer drilling.

Is a mud pump available?

Yes. It can be equipped with BW450 or BW850 mud pump configurations.
