| Type: | Rotary Drilling Rig | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Dimension: | 6000*2100*2000 Mm | Drilling Diameter: | 90-115 Mm |
| Weight: | 4500 KG | Drilling Depth: | Max.25m |
| Air Consumption: | 10-17m³/min | Diesel Power: | 77hp/59kw |
| Drill Pipe: | Φ64x3000mm / 76X3000mm | Model Number: | KG410 |
| Rotation Speed: | 0-120r/min | Rotation Torque: | 1800N·m |
| Rock Rigidity: | F=8-12 | ||
| Highlight: | rock dth drilling machine,Downhole rock drilling rig,Mining Blasting Hole rock drilling rig |
||

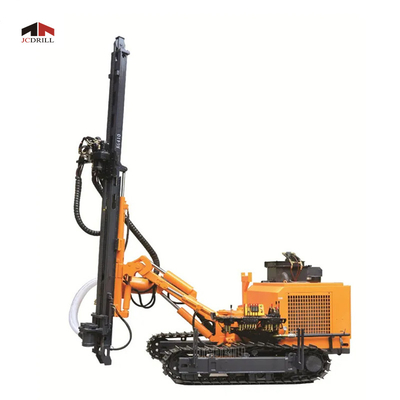

Downhole Drilling Rig For Mining Blasting Hole Integrated DTH Mounted Diesel Open Use Drilling Rig
Application
The KG410/KG410H down the hole drill rig mine drilling rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
The KG410H down the hole mine drilling rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Characteristics
DTH Mining Drilling Rig
1. Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.
2. Crawler chassis mounted, convenient and fast to move and position.
3. Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.
4. Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.
5. Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.
6. Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed
7. Power head has wide speed range, which can meet the requirement of various formation and different drilling process.
|
Model
|
KG410
|
KG410H
|
|
Weight
|
4700kg
|
4700kg
|
|
Size of drill machine
|
6000X2100X2000mm
|
6000x2350x2000mm
|
|
Rock rigidity
|
f=8-12
|
|
|
Diameter of hole
|
Φ90-115mm
|
|
|
Depth of economical drilling
|
25m
|
|
|
Rotation speed
|
0-120r/min
|
|
|
Rotation torque
|
1800N·m
|
|
|
Lift power
|
40000N
|
|
|
Feed way
|
oil cylinder-chain
|
|
|
Feed distance
|
3980mm
|
|
|
Walk speed
|
0-2.5Km/h
|
|
|
Grade ability
|
30°
|
|
|
Ground clearance
|
280mm
|
|
|
Pitch angle of beam
|
Blow 135°,up50°, total 185°
|
|
|
Swing angle of beam
|
Left100°,right45°,total 145°
|
|
|
Pitch angle of drill arm
|
Blow 50°,up25°, total 75°
|
|
|
Swing angle of drill arm
|
Left44°,right45°,total 89°
|
|
|
Compensation length of beam
|
900mm
|
|
|
Power
|
YC4DKC4G2-80 (58KW/2200r/min)
|
|
|
Drill pipe
|
Φ64x3000mm / 76X3000mm
|
|
|
Air consumption
|
10-17m³/min
|
|
|
Max height of horizontal hole
|
2840mm
|
|
|
Min height of horizontal hole
|
350mm
|
|
|
Min height of horizontal hole
|
350mm
|
|
>> Our Service
|
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special requirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using. |
>> About JCDRILL
|
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
|
>> Certification
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
