JCM200 Multifunctional RC DTH Hydraulic Crawler Drilling Rig

Name: JCM200 Multifunctional RC DTH Hydraulic Crawler Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JCM200
Price: 17,506.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	JCM200
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	20Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Certification:

Rated Power:

247 KW/ 330Hp

Hole Diameter:

Φ105～Φ273

Hole Depth:

45 M

Hydraulic System Pressure:

22 MPa

Rotation Speed:

65--130 Rpm

Rotation Torque:

65--130 R/min

Feed Stroke:

6.6 Mm

Clamping Force:

20 T

Weight:

21500 Kgs

Packaging Details:

Shipping Dimension: 1150×2850×3800mm

Supply Ability:

20Sets Per Month

Highlight:

RC hydraulic crawler drilling rig

multifunctional rock drilling rig

DTH crawler rig with warranty

Product Description

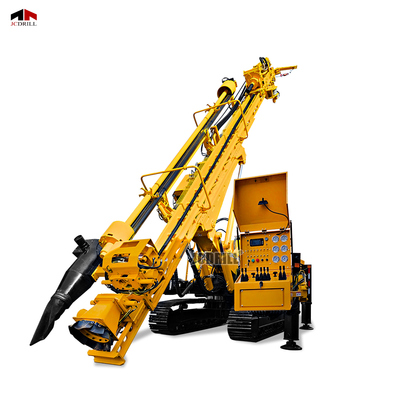

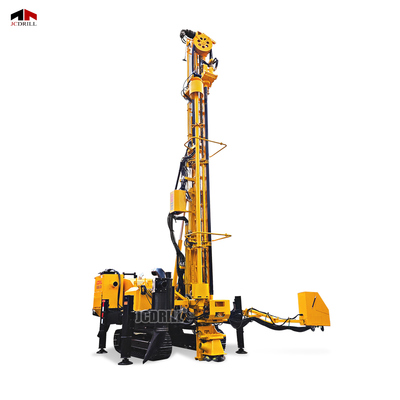

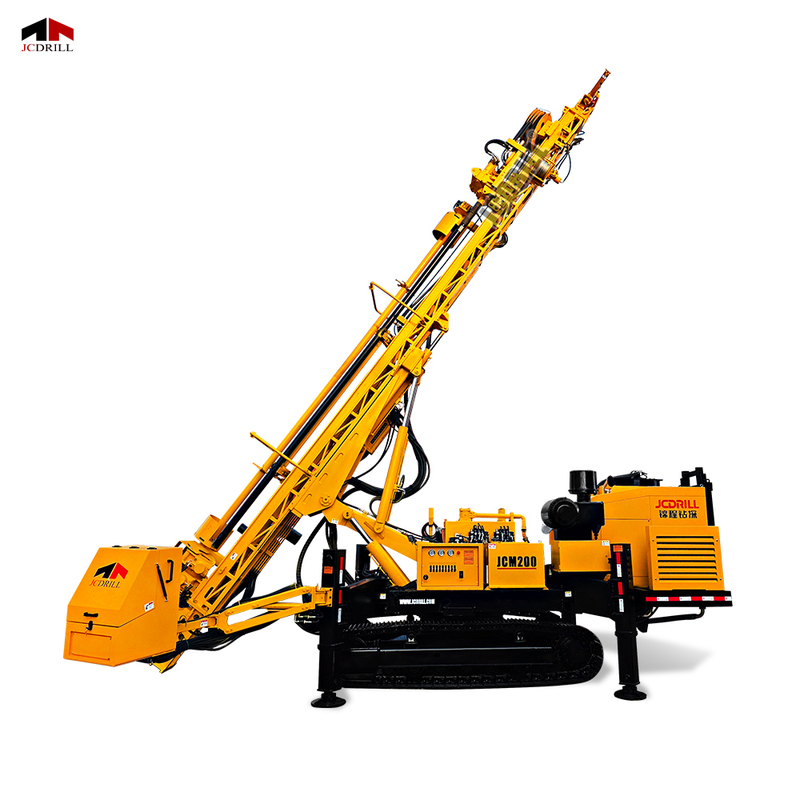

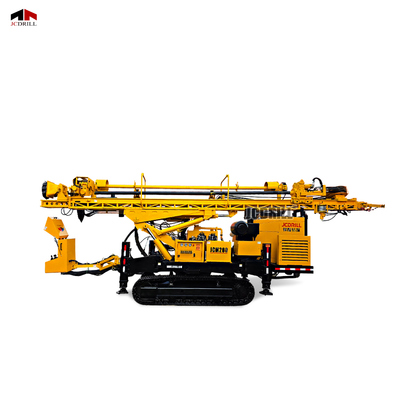

JCM200 Multifunctional RC DTH Hydraulic Crawler Drilling Rig

Product Description

The JCM200 multifunctional hydraulic crawler drilling rig is a powerful and versatile drilling solution designed for demanding geotechnical, mining, and construction applications. It supports DTH drilling, anchor drilling, auger drilling, rock drilling, exploration drilling, and blasting hole operations.

Equipped with an automatic rod changing system, integrated mud pump, and dust collection unit, the JCM200 drilling rig significantly improves drilling efficiency while reducing labor intensity and auxiliary time on site.

Powered by a 247 kW Weichai WP10-330-247 diesel engine, this hydraulic drilling machine delivers strong torque, stable penetration, and fuel-efficient performance. The crawler chassis with 360° rotation and high-leg supports ensures excellent mobility across urban, mountainous, and uneven terrains.

The JCM200 is widely used for geological surveys, slope stabilization, deep foundation anchoring, geothermal wells, water wells, and mining blast hole drilling—offering true multifunctional capability in a single rig.

Technical Specifications of JCM200 Drilling Rig

Drilling Performance
Drilling Diameter (DTH)	mm	Φ105–Φ273
Maximum Drilling Depth	m	45
Drilling Angle	°	45–90
Feed System
Feed Stroke	m	8
Feed Force	kN	40
Lifting Force	kN	80
Rotating Torque	N·m	10,000
Rotation Speed	r/min	65–130
Power System
Engine Brand		Weichai
Engine Power	kW	247
Weight & Dimensions
Transportation Size	mm	1150 × 2850 × 3800
Working Size	mm	6800 × 2850 × 11500
Machine Weight	Ton	21.5

Key Features of JCM200 Crawler Drilling Rig

Multifunctional drilling design for DTH, anchor, auger, and exploration drilling
Automatic rod changer system for improved safety and productivity
Integrated mud pump and dust collector to reduce auxiliary equipment
Full hydraulic control with adjustable torque and feed force
Weichai diesel engine ensures reliable and fuel-efficient power
Crawler chassis with 360° rotation for excellent maneuverability

Applications

DTH and hard rock drilling projects
Anchor drilling for slopes and deep foundations
Auger drilling for soil stabilization
Geological and mineral exploration drilling
Mining and quarry blasting hole drilling
Geothermal and water well drilling

Frequently Asked Questions

What drilling methods does the JCM200 support?

The JCM200 supports DTH drilling, anchor drilling, auger drilling, exploration drilling, and blasting hole drilling.

Is the JCM200 suitable for hard rock drilling?

Yes. With high torque output and a hydraulic DTH system, it delivers excellent penetration in hard rock formations.

What engine is used in the JCM200 drilling rig?

The rig is powered by a 247 kW Weichai WP10-330-247 diesel engine.
