Product Details:
|
| Machine Type: | Crawler Mounted | Application: | Mining,Quarry,DTH Drilling |
|---|---|---|---|
| Drilling Diameter: | 105-152mm | Drilling Hardness: | F=6-20 |
| Rotary Speed: | 0-100rpm | Lifting Force: | 25 KN |
| Climing Capacity: | ≤30° | Dimension: | 6800*2200*2850mm |
| Weight: | 6500 Kg | Drilling Depth: | 25m |
| High Light: | rock drilling equipment,dth drilling rig,reverse circulation drilling machine |
||

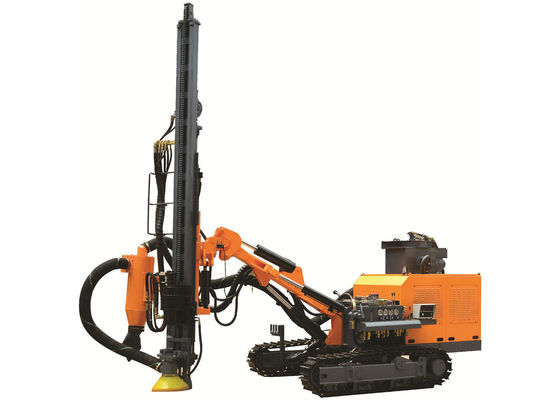

25m Depth Down The Hole Geotechnical Hydraulic Drilling Rig For Rock Blasting drilling
Application
The KG520 down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions.The drill rig is equipped with the two independent systems,namely diesel engine and motoe,capable of separate operations pressure and climbing capacity.
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
The KG520 down the hole drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable
Characteristics
The rotary torque and revolving speed are raised;the propusion motor and chain are used to raise the
lifting force and reliability.The dust collector is enlarged to produce a better effect on dust collection.The
thickened profile folder is used for the housing,thus improving its level of intensity and rigidity;and the additional
ring makes handing and lifting convenient
Specifiction
| KG520 drilling rig | |
| Model | KG520/KG520H |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ105-152mm |
| Depth of economical drilling | 25m |
| Rotation speed | 0-100r/min |
| Rotation torque | 3500N·m |
| Lift power | 25KN |
| Feed way | Motor-roller chain |
| Feed distance | 4150 mm |
| Walk speed | 0-2.5Km/h |
| Gradeability | ≤30° |
| Ground clearance | 900mm |
| Weight | 6500kg |
| Size of drill machine | 6800x2200x2850 |
| Sliding carriage pitch angle | Blow 135°,up50°, total 185° |
| Sliding carriage swing angle | Left100°,right45°,total 145° |
| Sliding carriage suppling length | 900mm |
| Power | 4DKC4G3-100(70KW/2200r/min) |
| Drill pipe | Φ76x3000mm/ 89*3000mm |
| Air consumption | 15-22m³/min |
| Max height of horizontal hole | 2850mm |
| Min height of horizontal hole | 900mm |
