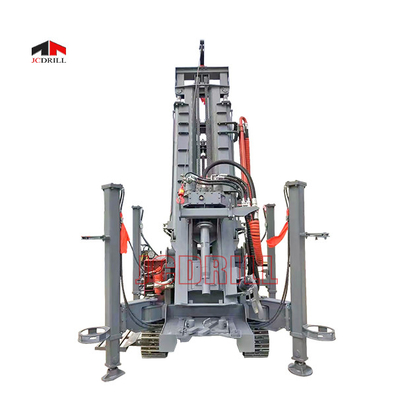

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary
Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary
Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary

Large Image :  Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD300T Water Well Drilling Rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 20GP
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary

Description
Hole Diameter: 90-350mm Hole Depth: 300m
Engine: Diesel Engine Drill Pipe Diameter: 76/89/102mm Drill Pipe
Drill Pipe Length: 3000mm/4500mm/6000mm Drilling Type: DTH & Mud Rotary Drilling
Compressor Type: Rotary Screw/Movable Air Compressor Mud Pump: BW450 Mud Pump
Name: CWD300T Track Borehole Water Well Drilling Machine Drill System: Borehole Water Well Drilling Rig
High Light:

borehole deep water well drilling rig

,

90mm deep water well drilling rig

,

steel crawler mounted borehole drilling machine

Deep Borehole Steel Crawler Mounted Mud Rotary Water Well Drilling Rig



>> Introduction


CWD300T crawler mounted drilling rig can drill in all kinds formations by mud drilling in doft formation and air DTH hammer in rock drilling,DTH hammer is applied in rock drilling,slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.


>> Characteristic


CWD300T carawler mounted drilling rig is rotary full hydraulic controlled water well drilling rigs and it is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The portable drilling rigs are not only designed for water, they can also be used in all conditions based on pore-forming purpose.

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.



>> Specification

Specification Unit CWD300T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 300
Rotation Torque Nm 5000-6500
Rotation Speed rpm 70-140
Drill pipe diameter mm 76/89/102
Drill pipe length mm 6000
Max. Feed Speed M/min 60
Max. Lifting Speed M/min 30
Feed Stroke mm 6600
Max. Pull back Capacity T 16
Lifting force of Winch T 1.5
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUNNEI
Rated Horse power Kw 80
Compressor required(Optional)
Pressure Required Mpa 15-30
Air consumption m³/min 1.5-2.5
Mud Pump(Optional/Separate or on board)
Model   BW450
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2
Dimension
Net Weight Kgs 7000
Transportation dimension mm 5650*1700*2260
Work Dimension mm 3550*2660*9350
Ground Clearance mm 305



Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary 0

>> Package & Delivery

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary 1

>> Our Service

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.



>> Overseas Service&Project

Borehole Deep Water Well Drilling Rig Steel Crawler Mounted Mud Rotary 3

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
