Product Details:
|
| Hole Diameter: | 90-350mm | Hole Depth: | 300m |
|---|---|---|---|
| Engine: | Diesel Engine | Drill Pipe Diameter: | 76/89/102mm Drill Pipe |
| Drill Pipe Length: | 3000mm/4500mm/6000mm | Drilling Type: | DTH & Mud Rotary Drilling |
| Compressor Type: | Rotary Screw/Movable Air Compressor | Mud Pump: | BW450 Mud Pump |
| Name: | CWD300T Track Borehole Water Well Drilling Machine | Drill System: | Hydraulic Water Well Drilling Rig |
| High Light: | 350mm borehole drilling machine,track water well borehole drilling machine,350mm water drilling machine |
||

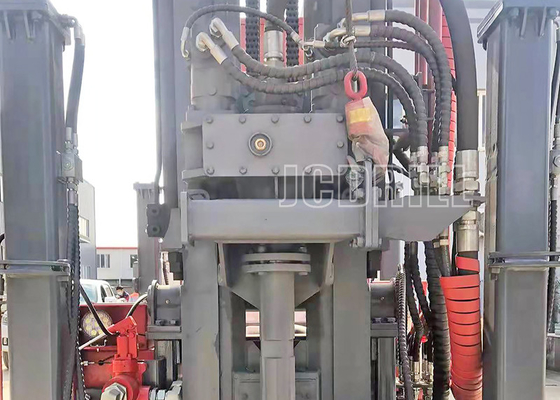

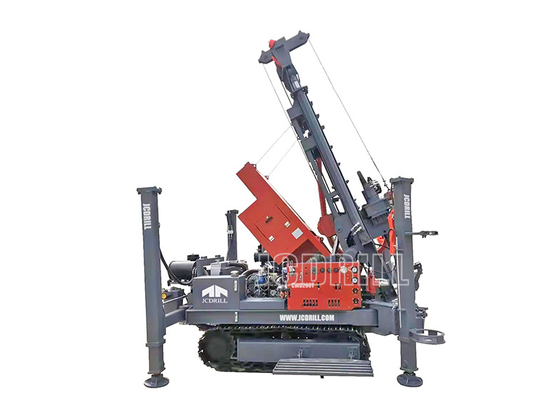

Track Borehole Water Well Drilling Machine CWD300T
>> Introduction
CWD300T crawler mounted drilling rig can drill in all kinds formations by mud drilling in doft formation and air DTH hammer in rock drilling,DTH hammer is applied in rock drilling,slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
>> Characteristic
>> The drilling rig can use air DTH hammer drilling and mud drilling.
>> Centrailzed control console is suitable for each manipulation and control.Rapid pullng and lifting reduce the auciliary time and enhance the work efficiency.
>> The main drive system,the transfer case,gearbox,double-winch units,mud pump,turntable,drilling tower,feed system are set up on the chassis.
>> It is a hydraulic rotary drilling rig with directional circulation.It can be equipped with BW450 mud pump which adapts the slurry as the sashing fluid and can drill on clay,sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a Yuchai engine ,80kw Yunnei engine drives the large displacement high pressure plunger pump and it is charactertized by powerful dynamic and stable performance.
>> Specification
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
>> Package & Delivery
>> Our Service
|
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
|
>> Overseas Service&Project
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
| A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. | A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. | A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP. |
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
| A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. | A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
