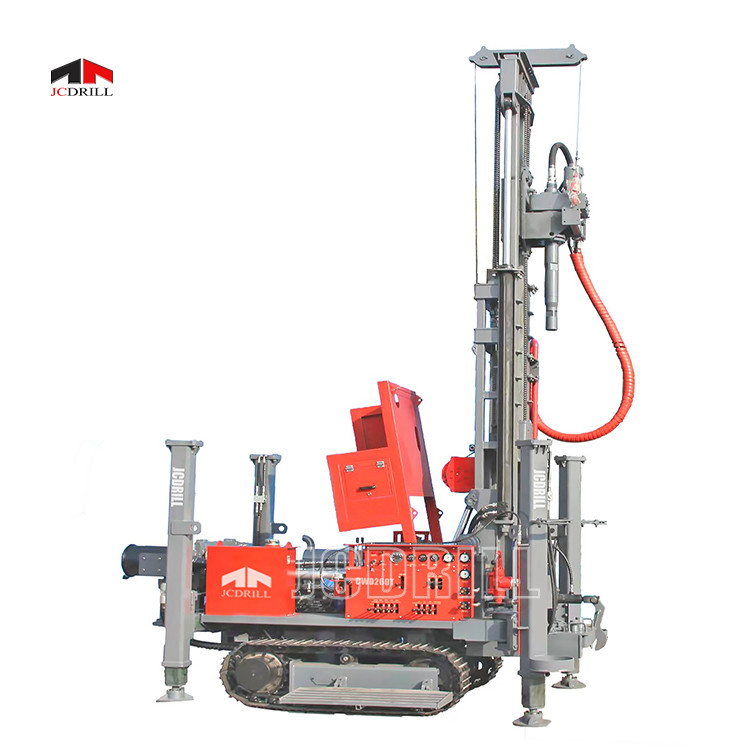

Crawler Mounted Rotary Water Well Drill Rig CWD200T

Crawler Mounted Rotary Water Well Drill Rig  CWD200T
Crawler Mounted Rotary Water Well Drill Rig  CWD200T
Crawler Mounted Rotary Water Well Drill Rig  CWD200T Crawler Mounted Rotary Water Well Drill Rig  CWD200T

Large Image :  Crawler Mounted Rotary Water Well Drill Rig CWD200T

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD200T rotary water well drill rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 20GP
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

Crawler Mounted Rotary Water Well Drill Rig CWD200T

Description
Hole Diameter: 90-350mm Hole Depth: 2000m
Torque: 5500Nm Rotation Speed: 60-115rpm
Drill Pipe Diameter: 76/89/102mm Drill Pipe Length: 3000mm
Geology Drilled: Air DTH And Mud Rotary Drilling Drilling Type: DTH & Mud Rotary Dril Rig
Compressor Type: Rotary Screw/Movable Air Compressor Engine Type: YUCHAI Diesel Engine
Mud Pump: BW250 Mud Pump Name: CWD200T Water Well Drill Rig

Crawler Mounted Rotary Water Well Drill Rig CWD200T



>> Introduction

Crawler Mounted Rotary Water Well Drill Rig CWD200T can drill in all kinds of formations by mud drilling in soft formation and air DTH hammer in rock drilling.DTH hammer is applied in rock drilling ,slag is discharged by air pressure and the offstage efficiency is ten times than traditonal rotary drilling.

>> Characteristic

1) The rotary head ,have two gear,rotation speed is 60-115rpm stepless adjustment ans the rotary torque is 5000-6500Nm.
2) The pulling force can be regulated and controlled ,which adapt the machine to deep hole drilling.
3) It can set up a generator which is convenient to weld or illuminate for work at night.
4) Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
5) The main drive od rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled.Transfer case and mud pump clutch system are also hydraulic operated.
6) The tools winch is used for auxiliary lifting and casin.
7) The hydraulic auxiliary functions are easy and efficient for guide extension,boom swing,boom life,guide dumping.
8) Competitive in price ,low cost of maintain.

>> Specification

Specification Unit CWD200T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 200
Rotation Torque Nm 5500
Rotation Speed rpm 60-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 12
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUNNEI
Rated Horse power Kw 58
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate or on board)
Model   BW250
Displacement L/Min 4
Dimension
Net Weight Kgs 5300
Transportation dimension mm 4070*1550*2070
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300



Crawler Mounted Rotary Water Well Drill Rig  CWD200T 0

>> Package & Delivery

Crawler Mounted Rotary Water Well Drill Rig  CWD200T 1

>> Our Service

Crawler Mounted Rotary Water Well Drill Rig  CWD200T 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.



>> Overseas Service&Project

Crawler Mounted Rotary Water Well Drill Rig  CWD200T 3

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
