200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole

200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole
200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole
200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole

Large Image :  200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD200T water well drilling rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 20GP
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole

Description
Hole Diameter: 90-350mm Hole Depth: 200m
Torque: 5500Nm Rotation Speed: 60-115rpm
Drill Pipe Diameter: 76/89/102mm Drill Pipe Length: 3000mm
Geology Drilled: Air DTH And Mud Rotary Drilling Drilling Type: DTH & Mud Rotary Drilling Rig
Compressor Type: Rotary Screw/Movable Air Compressor Engine Type: YUCHAI Diesel Engine
Mud Pump: BW250 Mud Pump Name: CWD200T Water Well Drilling Rig
High Light:

200m water well drilling rig

,

diesel engine water well drilling rig

,

track mounted bore well rigs

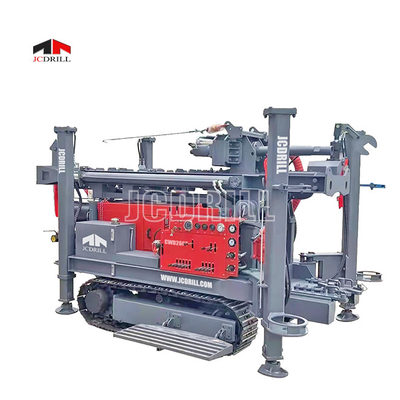

Steel Track Mounted Borehole Water Well Drilling Rig CWD200T



>> Introduction

CWD200T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> Characteristic

1) Engine: adopts the famous Yuchai brand turbocharged version engine.
2) Crawler Driving Gear: the designed motor.
with a speed reduction gearbox prolongs the service life.
3) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.

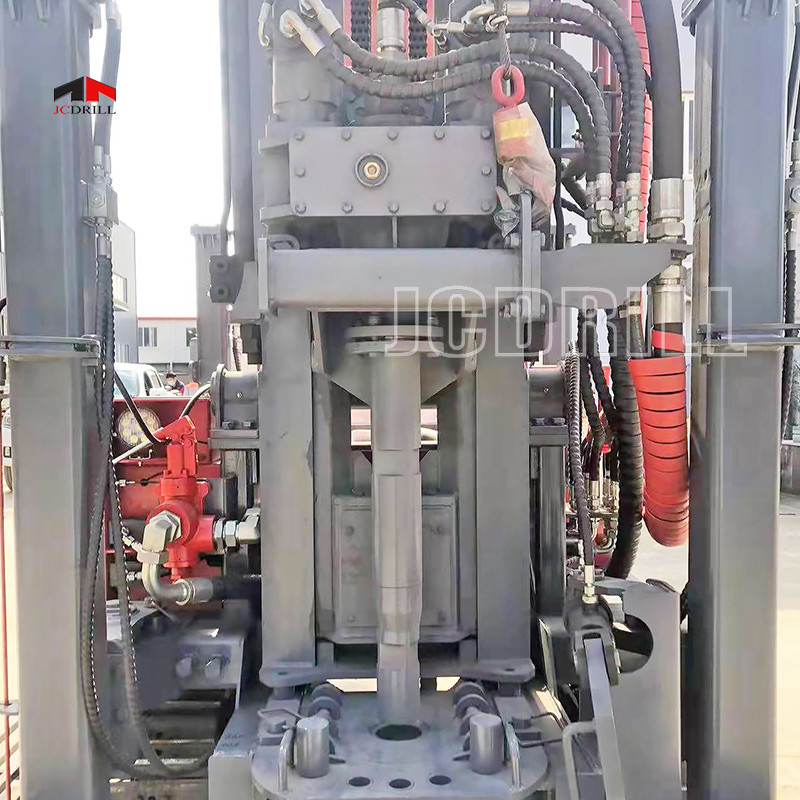

4) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs.
5) Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement.
6) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity.
7) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work.
8) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.

>> Specification

Specification Unit CWD200T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 200
Rotation Torque Nm 5500
Rotation Speed rpm 60-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 12
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUNNEI
Rated Horse power Kw 58
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate or on board)
Model   BW250
Displacement L/Min 4
Dimension
Net Weight Kgs 5300
Transportation dimension mm 4070*1550*2070
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300



200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 0

>> Package & Delivery

200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 1

>> Our Service

200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.



>> Overseas Service&Project

200m Diesel Engine Water Well Drilling Rig Steel Track Mounted Borehole 3

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
