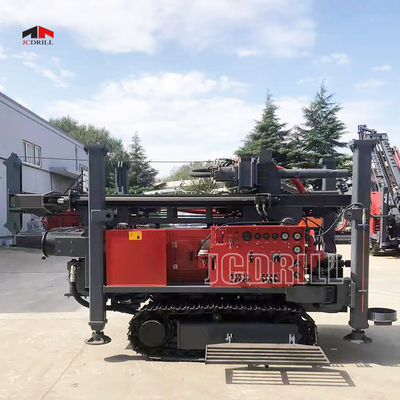

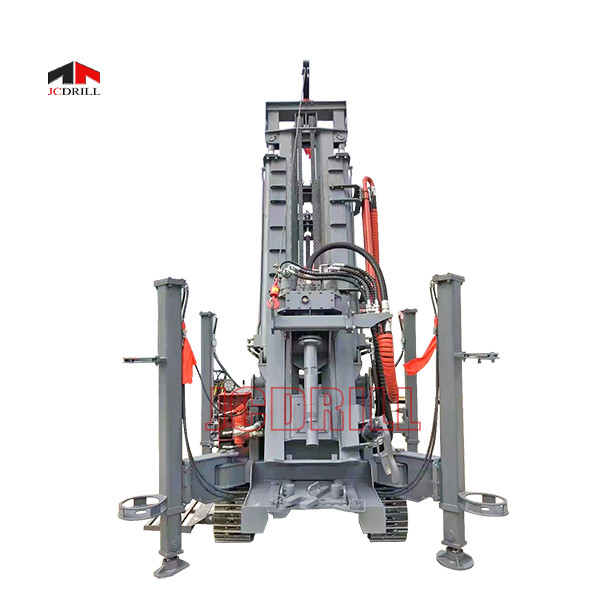

260m Depth Borehole 90mm Crawler Drilling Rig

260m Depth Borehole 90mm Crawler Drilling Rig
260m Depth Borehole 90mm Crawler Drilling Rig
260m Depth Borehole 90mm Crawler Drilling Rig 260m Depth Borehole 90mm Crawler Drilling Rig 260m Depth Borehole 90mm Crawler Drilling Rig

Large Image :  260m Depth Borehole 90mm Crawler Drilling Rig

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD260T
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

260m Depth Borehole 90mm Crawler Drilling Rig

Description
Model Number: CWD260T Driling Diameter: 90-350mm
Dimension: 4100*1650*2220mm Drilling Depth: Max.260m
Weight: 5400KG Name: 260m Depth Crawler Water Well Drilling Rig CWD400
High Light:

260m depth borehole drilling rig

,

borehole crawler drilling rig

,

260m depth crawler drilling rig

260m Depth Borehole  Crawler Drilling Rig Water Well drilling rig suitable for both air and water drilling



>> Introduction

CWD260T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD260T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD260T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

260m Depth Borehole 90mm Crawler Drilling Rig 0

260m Depth Borehole 90mm Crawler Drilling Rig 1

>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 70-140 stepless adjustment and the rotary torque is 4000-8000Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> Competitive in price, low cost of maintain.
260m Depth Borehole 90mm Crawler Drilling Rig 2

>> Specification

Specification Unit CWD260T
Geology drilled   All kind
Drilling Type   DTH&Mud
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ350
Hole Depth m 260
Rotation Torque Nm 5000-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max.Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 1.2
Engine
Diesel Engine type 4Cylinder,water cooling
Brand YUCHAI
Rated Horse power Kw 73
Compressor required
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional)
Type Hydraulic
Model BW450
Stroke mm 100
Displacement L/min 450
Discharge pressure(Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump Optional
Dimension
Net Weight Kgs 5400
Transportation dimension mm 4100*1650*2220
Work dimension mm 3260*2380*6190
Ground Clearance mm 300

>> Package & Delivery

260m Depth Borehole 90mm Crawler Drilling Rig 3

>> Overseas Service&Project

260m Depth Borehole 90mm Crawler Drilling Rig 4

260m Depth Borehole 90mm Crawler Drilling Rig 5


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.









>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
