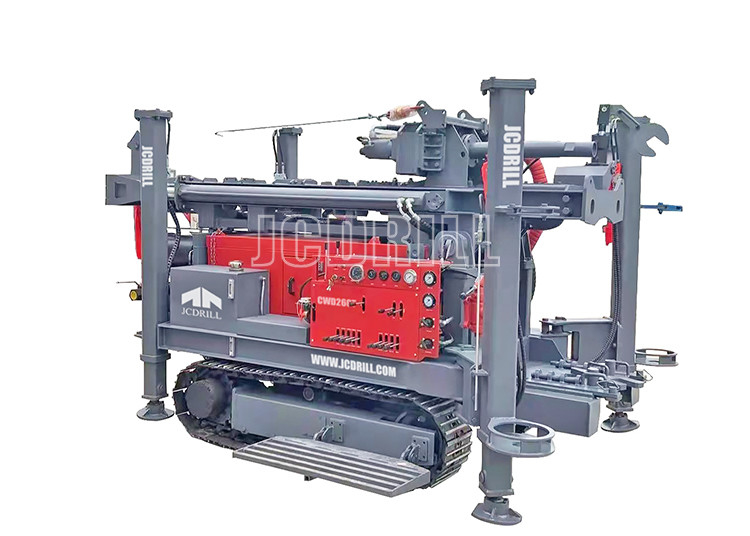

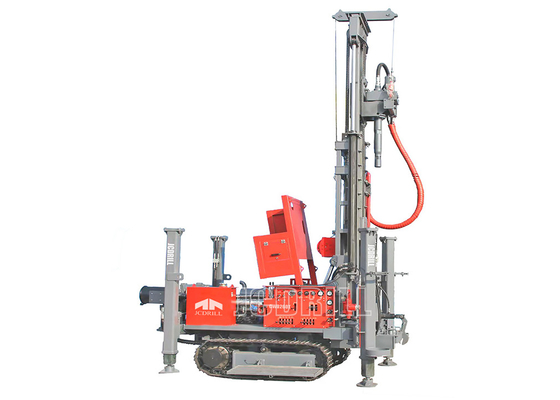

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer
Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer
Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer

Large Image :  Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: CWD260T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD22000-26000
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per year

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer

Description
Product Name: Water Well Drilling Rig Application: Drilling Well
Engine: Diesel Engine Drilling Depth: 260M
Drilling Diameter: 90-350MM Certification: ISO9001
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training
Dimension(l*w*h): 4100*1650*2220MM Color: Red
High Light:

diesel engine borehole drilling machine

,

mud rotary borehole drilling machine

,

dth air hammer water drilling machine



Diesel engine mud rotary and dth air hammer drilling water well drilling machine



>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulic rotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a Yuchai engine,73kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

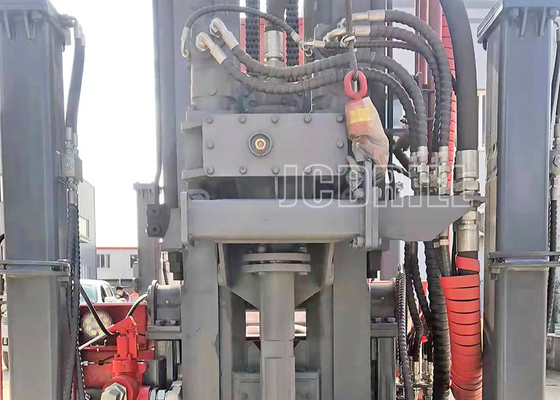

>> The rotary head,have two gear,rotation speed is 45-115rpm stepless adjustment and the rotary torque is 5000-6500Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> Competitive in price, low cost of maintain.

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer 0

>> Specification

Specification Unit CWD260T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 260
Rotation Torque Nm 5000-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 14
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 73
Compressor required(Optional)
Pressure Required Mpa 15-30
Air consumption m³/min 1.5-2.5
Mud Pump(Optional/Separate or on board)
Model   BW450
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2
Dimension
Net Weight Kgs 5400
Transportation dimension mm 4100*1650*2220
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300

>> Our Service

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer 1

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.





>> Overseas Service&Project

Diesel Engine Borehole Drilling Machine Mud Rotary And Dth Air Hammer 2

>> FAQ

Q: Are you original manufacturer?

Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
