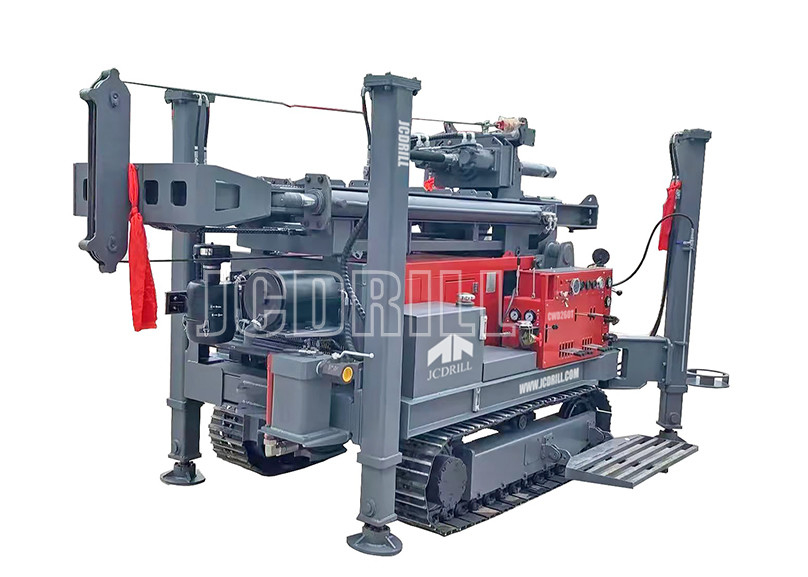

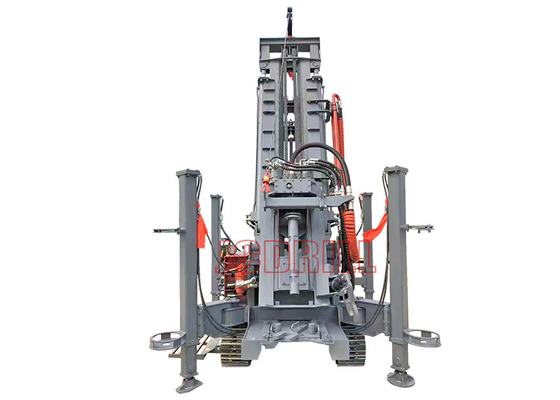

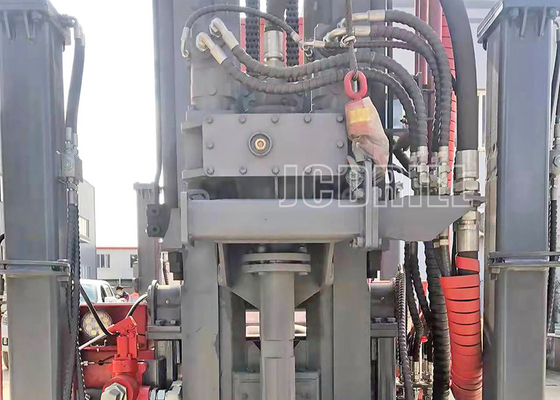

Rotary 260m Deep Dth Water Well Drilling Rig Machine

Rotary 260m Deep Dth Water Well Drilling Rig Machine
Rotary 260m Deep Dth Water Well Drilling Rig Machine
Rotary 260m Deep Dth Water Well Drilling Rig Machine Rotary 260m Deep Dth Water Well Drilling Rig Machine Rotary 260m Deep Dth Water Well Drilling Rig Machine Rotary 260m Deep Dth Water Well Drilling Rig Machine

Large Image :  Rotary 260m Deep Dth Water Well Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD260T water well drilling machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 20GP
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

Rotary 260m Deep Dth Water Well Drilling Rig Machine

Description
Hole Diameter: 90-350mm Hole Depth: 260m
Rotation Torque: 5000-6500Nm Rotation Speed: 45-115rpm
Drill Pipe Diameter: 76/89/102mm Drill Pipe Length: 3000mm/4500mm/6000mm
Geology Drilled: All Kinds Drilling Type: DTH & Mud Rotary
Compressor Type: Rotary Screw/Movable Engine Type: YUCHAI
Mud Pump: BW450 Name: CWD260T Water Well Drilling Rig
High Light:

260m deep water well drilling rig

,

dth water well drilling rig

,

260m deep water drilling machine

260m Deep Rotary DTH Water Well Drilling Machine



>> Introduction

CWD260T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD260T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Specification

Specification Unit CWD260T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 260
Rotation Torque Nm 5000-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 14
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 73
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate or on board)
Model   BW450
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2
Dimension
Net Weight Kgs 5400
Transportation dimension mm 4100*1650*2220
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300

>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250/BW450 mud pump which adoptsthe slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a Yuchai engine,73kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

Rotary 260m Deep Dth Water Well Drilling Rig Machine 0

>> Package & Delivery

Rotary 260m Deep Dth Water Well Drilling Rig Machine 1

>> Overseas Service&Project

Rotary 260m Deep Dth Water Well Drilling Rig Machine 2

>>About JCDRILL

JCDRILL Crawler Water Well Drilling Wells Machine for Sale CWD400T





JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
