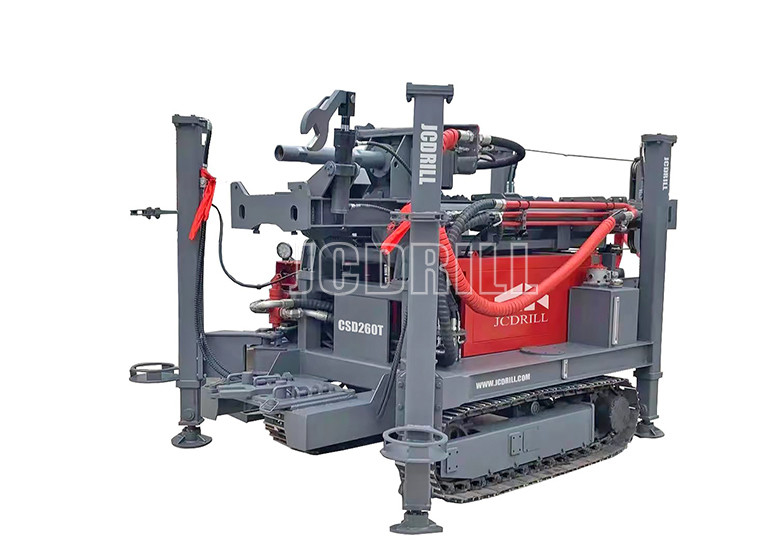

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t
Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t
Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t

Large Image :  Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD260T water well drilling rig
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 20GP
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t

Description
Hole Diameter: 90-350mm Hole Depth: 260m
Rotation Torque: 5000-6500Nm Rotation Speed: 45-115rpm
Drill Pipe Diameter: 76/89/102mm Drill Pipe Length: 3000mm/4500mm/6000mm
Geology Drilled: All Kinds Drilling Type: DTH & Mud Rotary
Compressor Type: Rotary Screw/Movable Engine Type: YUCHAI
Mud Pump: BW450 Name: CWD260T Water Well Drilling Rig
High Light:

yuchai engine crawler mounted drill rig

,

260m deep crawler mounted drill rig

,

yuchai engine crawler drill rig

Steel Crawler Mounted Borehole Water Well Drilling Rig CWD260T



>> Introduction

CWD260T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> Characteristic

>> The rotary head,have two gear,rotation speed is 45-115rpm stepless adjustment and the rotary torque is 5000-6500Nm.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch                  system are also hydraulic operated.
>> The tools winch winch is used for auxiliary lifting and casin.
>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
>> Competitive in price, low cost of maintain.

>> Specification

Specification Unit CWD260T
Geology drilled   All Kind
Drilling Type   DTH & MUD
Drill system and operation   Hydraulic
Hole Diameter mm Φ90—Φ350
Hole Depth m 260
Rotation Torque Nm 5000-6500
Rotation Speed rpm 45-115
Drill pipe diameter mm 76/89/102
Drill pipe length mm 3000
Max. Feed Speed M/min 80
Max. Lifting Speed M/min 40
Feed Stroke mm 3600
Max. Pull back Capacity T 14
Lifting force of Winch T 1.2
Engine
Diesel Engine type   4Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 73
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Separate or on board)
Model   BW450
Displacement L/Min 450
Discharge pressure (Mpa) Mpa 2
Dimension
Net Weight Kgs 5400
Transportation dimension mm 4100*1650*2220
Work Dimension mm 3260*2380*6190
Ground Clearance mm 300



Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t 0

>> Package & Delivery

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t 1

>> Our Service

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.



>> Overseas Service&Project

Steel Yuchai Engine Crawler Mounted Drill Rig Borehole Cwd260t 3

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need. A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days. A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
