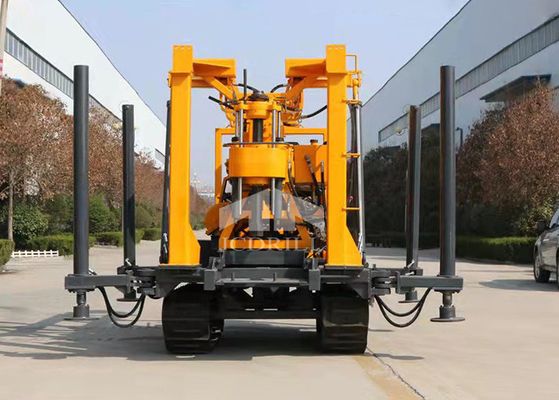

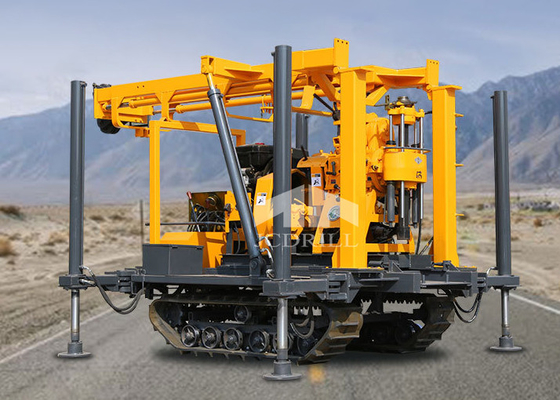

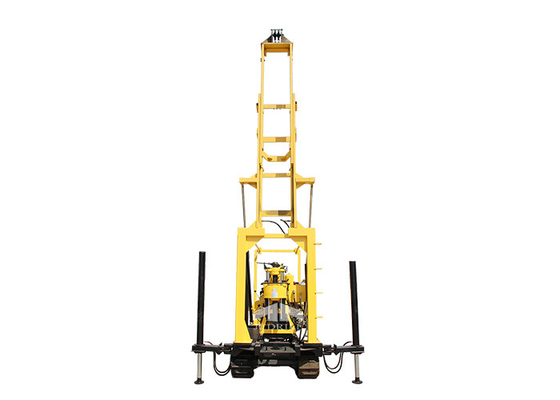

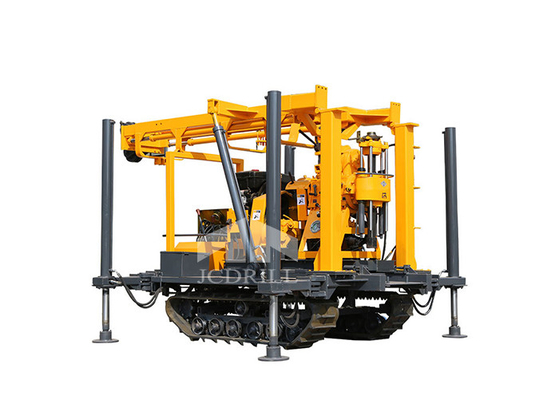

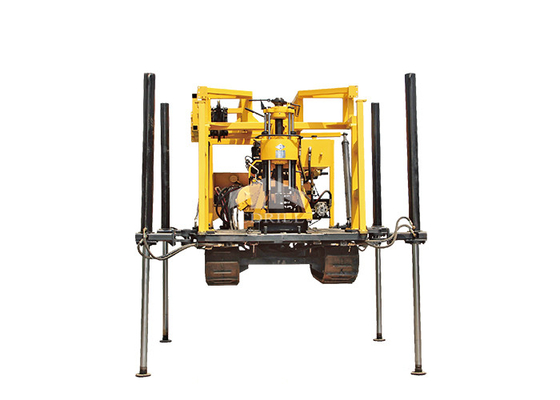

Hydraulic Crawler Borehole 130m Well Drilling Equipment

Hydraulic Crawler Borehole 130m Well Drilling Equipment
Hydraulic Crawler Borehole 130m Well Drilling Equipment Hydraulic Crawler Borehole 130m Well Drilling Equipment Hydraulic Crawler Borehole 130m Well Drilling Equipment Hydraulic Crawler Borehole 130m Well Drilling Equipment Hydraulic Crawler Borehole 130m Well Drilling Equipment

Large Image :  Hydraulic Crawler Borehole 130m Well Drilling Equipment

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: JXY130L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year

Hydraulic Crawler Borehole 130m Well Drilling Equipment

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 2885kg
Warranty: 1year Hole Depth: 130m
Usage: Water Well Dimension(L*W*H): 4200*1980*2150mm
Hole Diameter: 75-220mm
High Light:

130m deep well drilling equipment

,

borehole crawler well drilling equipment

,

130m well digging rig

Cheap price crawler hydraulic water well drilling machine borehole water well drilling machine



>> Introduction

XYY-L Series crawler mounted diamond core drilling rig is a kind of core drill rig driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

Hydraulic Crawler Borehole 130m Well Drilling Equipment 0

>> Characteristic
Hydraulic Crawler Borehole 130m Well Drilling Equipment 1
Hydraulic Crawler Borehole 130m Well Drilling Equipment 2
>> Specification

Main machine technical parameter JXY130L JXY180L JXY200L
Drilling depth(m) 130m 180m 200m
Drilling hole diameter 220 220 325
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90 90 90
Weight engine(kg) 2885 3900 3990
Machine Dimension(mm) 4200*1980*2150 4200*1980*2150 4200*1980*2150
Power
Matching engine power(KW) 13.2 13.2 15
Spindle
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Hoist
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Ton) 18 18 18
Effective height(m) 6.5 6.5 6.5
Mud Pump
Flow(L/MIN) 160 160 160
Max. pressure(Mpa) 1.3 1.3 1.3
Back and forth times/min 165 165 165
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32
Crawler Chassis 20° 20° 20°
Crawler Size 10Km/h 10Km/h 10Km/h
Climbing angle 1300 1300 1300
Moving Speed(Km/h) 18 18 18
Hydraulic Landing leg valid height 6.5 6.5 6.5

>> Package & Shipment

Hydraulic Crawler Borehole 130m Well Drilling Equipment 3

>> Overseas Service&Project
Hydraulic Crawler Borehole 130m Well Drilling Equipment 4


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
