Hard Rock 400m Water Well Drilling Machine With Air Compressor

Hard Rock 400m Water Well Drilling Machine With Air Compressor
Hard Rock 400m Water Well Drilling Machine With Air Compressor
Hard Rock 400m Water Well Drilling Machine With Air Compressor Hard Rock 400m Water Well Drilling Machine With Air Compressor Hard Rock 400m Water Well Drilling Machine With Air Compressor Hard Rock 400m Water Well Drilling Machine With Air Compressor Hard Rock 400m Water Well Drilling Machine With Air Compressor

Large Image :  Hard Rock 400m Water Well Drilling Machine With Air Compressor

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD400
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Hard Rock 400m Water Well Drilling Machine With Air Compressor

Description
Model Number: CWD400 Dimension: 5760*1850*2440m
Driling Diameter: 90-150mm Drilling Depth: MAX.400
Weight: 8500KG Name: 400m Depth Crawler Water Well Drilling Rig CWD400
High Light:

400m water well drilling machine

,

air compressor water well drilling machine

,

400m water well drilling equipment

Portable Hard Rock Borehole Well (DTH) Crawler Underground Hydraulic Crawler Drill Rig with Air Compressor



>> Introduction

CWD400T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD400T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD400T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

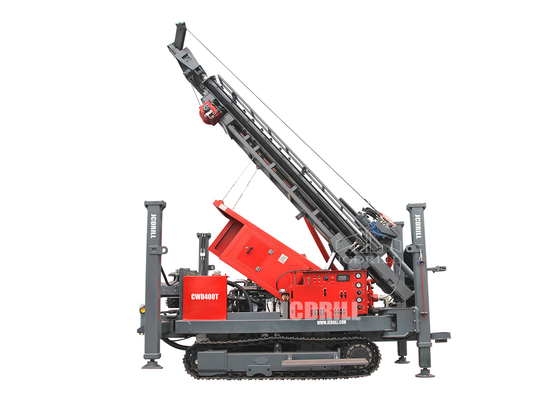

Hard Rock 400m Water Well Drilling Machine With Air Compressor 0

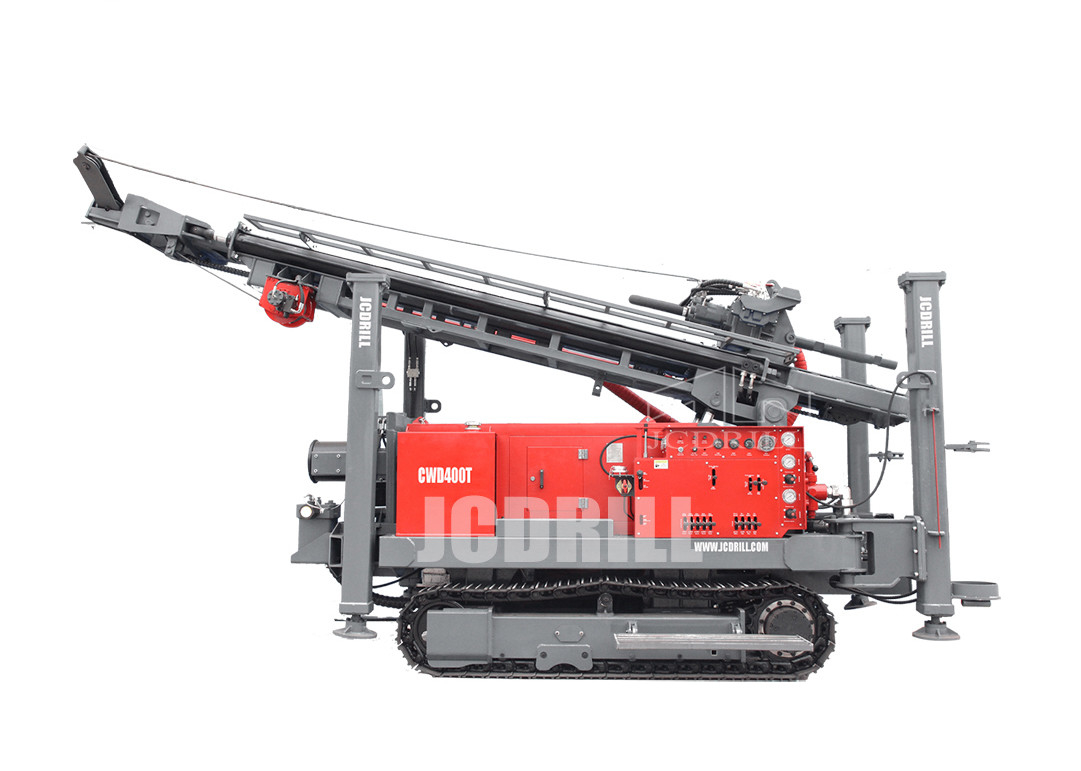

Hard Rock 400m Water Well Drilling Machine With Air Compressor 1

>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 70-140 stepless adjustment and the rotary torque is 4000-8000Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> Competitive in price, low cost of maintain.

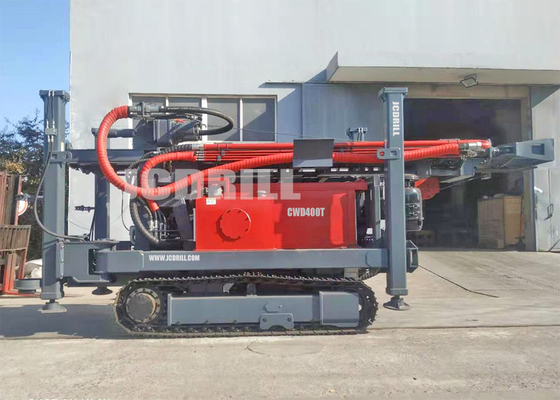

Hard Rock 400m Water Well Drilling Machine With Air Compressor 2
Hard Rock 400m Water Well Drilling Machine With Air Compressor 3

>> Specification

Specification Unit CWD400T
Geology drilled   All kind
Drilling Type   DTH&MUD
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ450
Hole Depth m 400
Rotation Torque Nm 4000-8000
Rotation Speed rpm 70-140
Drill pipe diameter mm 89/102/114
Drill pipe length mm 3000/4500/6000
Max. Feed Speed M/min 60
Max. Lifting Speed M/min 30
Feed Stroke mm 6600
Max.Pull back Capacity T 24
Lifting force of Winch T 1.5
Engine
Diesel Engine type   6Cylinder,water cooling
Diesel Engine Brand   YUCHAI
Rated Horse power Kw 92
Compressor required(Optional)
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional/Seperate)
Model   BW450
Displacement L/min 450
Discharge pressure(Mpa) Mpa 2
Dimension
Net Weight T 8.5
Transportation dimension mm 5760*1850*2440
Work Dimension mm 3940*2890*9430
Ground Clearance mm 305

>> Package & Delivery

Hard Rock 400m Water Well Drilling Machine With Air Compressor 4

>> Our Service

Hard Rock 400m Water Well Drilling Machine With Air Compressor 5

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> Overseas Service&Project

Hard Rock 400m Water Well Drilling Machine With Air Compressor 6

Hard Rock 400m Water Well Drilling Machine With Air Compressor 7


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.









>> Certification


>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
