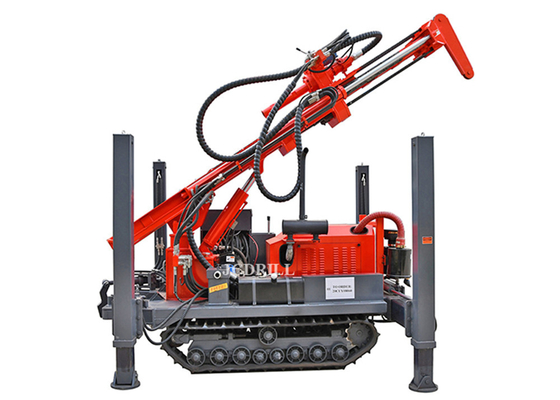

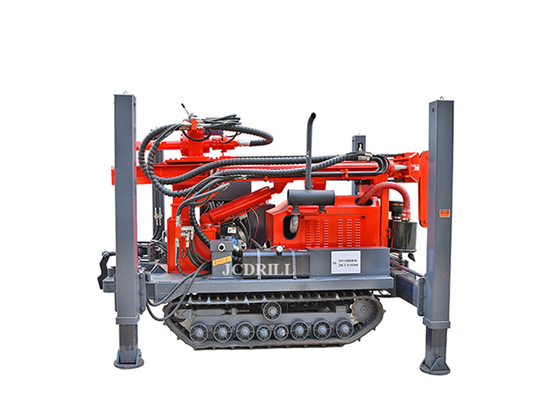

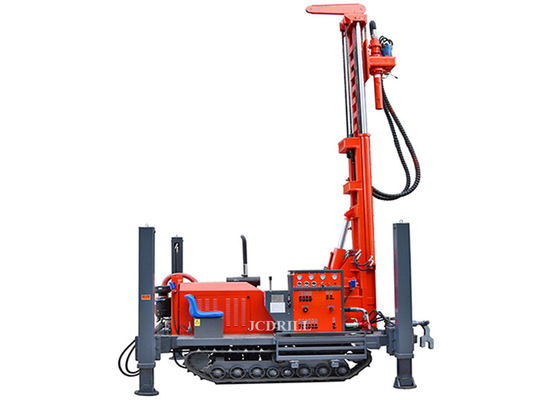

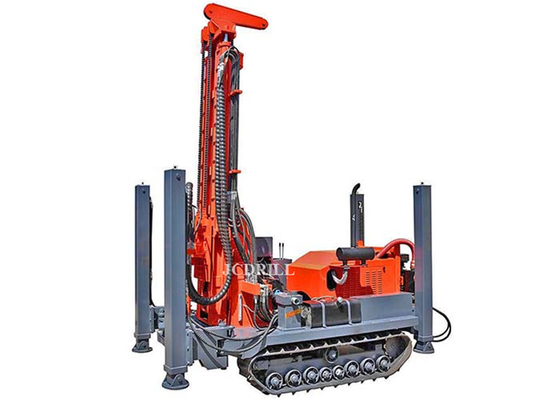

Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling

Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling
Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling
Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling

Large Image :  Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling

Description
Model Number: CWD200 Dimension: 6000*2200*2200m
Driling Diameter: 90-450mm Mud Pump: BW250
Drilling Depth: MAX.200 Weight: 7100KG
High Light:

200 meters crawler drilling rig

,

water well pneumatic crawler drilling rig

,

200 meters crawler drilling machine

200 Meters Pneumatic Crawler Drilling Rig Water Well for Drilling




CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.


CWD200 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
crawler drilling rig.jpg
drilling rigs.jpg
borehole drilling rig.png water well drilling rig.png JCDRILL drill rig.png
Right elevation Left elevation Front elevation

PRODUCTS SPECIFICATION

Specification Unit CWD200
Geology drilled   All kind
Drilling Type   DTH&Mud Rotary
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ450
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 0-90
Drill pipe diameter mm 76/89/102/114
Drill pipe length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-12
Feed Stroke mm 3400
Max.Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 4
Lifting force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Engine
Diesel Engine type YUCHAI
Electrical System Volt 24
Rated Horse power Kw 77
Compressor required
Compressor type Rotary Screw/Movable
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional)
Type Hydraulic
Model BW450
Stroke mm 100
Displacement L/min 450
Discharge pressure(Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump Optional
Dimension
Net Weight Kgs 5400
Transportation dimension mm 3950*1700*2150
Ground Clearance mm 300

PRODUCT CONFIGURATION

Hydraulic valve.jpg drilling rig engine.jpg       hydraulic pump.jpg
Famous Hydraulic Control Valve YUCHAI 70KW Engine High power hydraulic pump
stronge structure.jpg RUBBER CRAWLER.jpg     hydraulic winch.jpg
High Hydraulic Support Leg Heavy Duty Rubber Crawler 1.5Ton Hydraulic Tool Winch

PRODUCTS LOADING

drilling rig.jpg

borehole drilling rig.jpg drilling rig loading.jpg water drilling rig.jpg

SUCCESSFUL PROJECT

Pneumatic 200 Meters Crawler Drilling Rig For Water Well Drilling 15



CERTIFACATION



 FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
