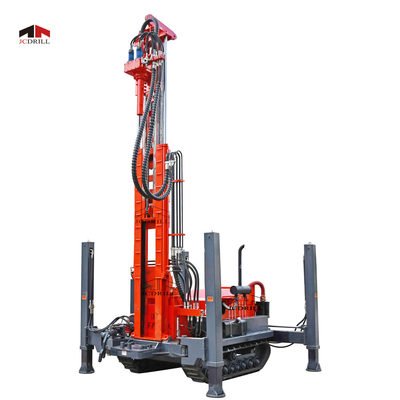

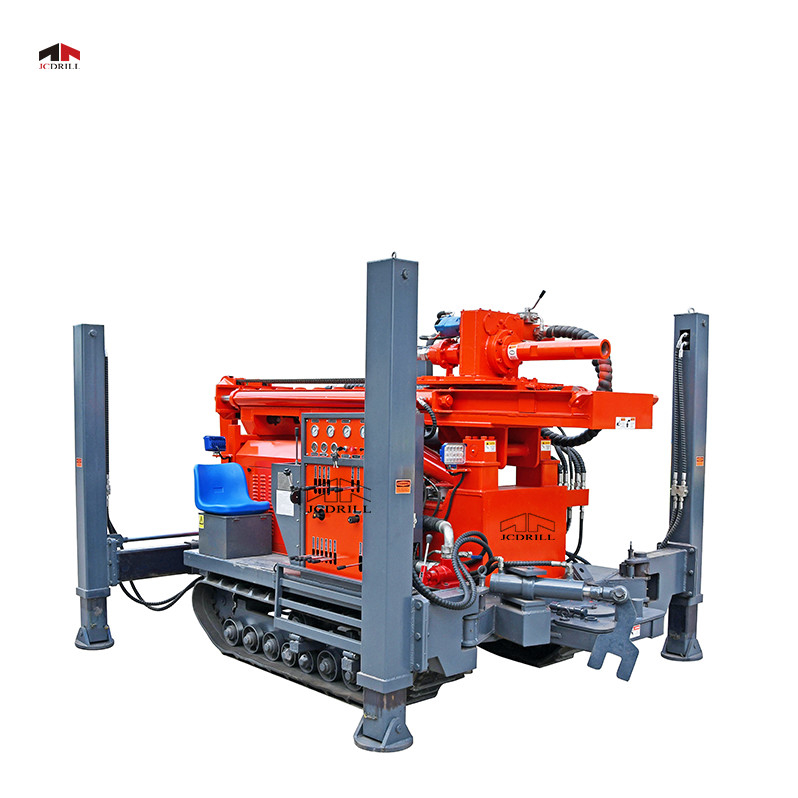

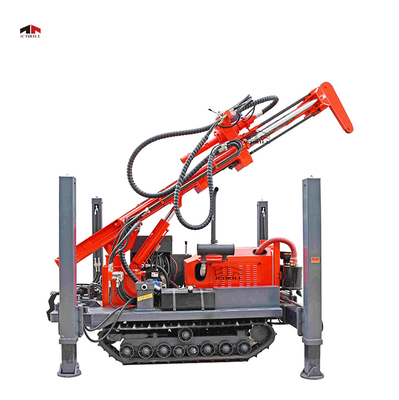

200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock

200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock
200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock 200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock 200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock

Large Image :  200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: CWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock

Model Number: CWD200 Dimension: 6000*2200*2200m
Driling Diameter: 90-450mm Mud Pump: BW250
Drilling Depth: MAX.200 Weight: 7100KG
High Light:

crawler rotary water well drilling rig


200m depth water well drilling rig


200m depth water rig drilling machine

200m Depth High Quality Crawler Rotary Portable Water Well Drilling Rigs/Crawler Diesel Rock Drilling Rig



CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

CWD200 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
crawler drilling rig.jpg
drilling rigs.jpg
borehole drilling rig.png water well drilling rig.png JCDRILL drill rig.png
Right elevation Left elevation Front elevation



Specification Unit CWD200
Geology drilled   All kind
Drilling Type   DTH&Mud Rotary
Drill system and operation   Hydraulic
Hole Diameter mm φ90-φ450
Hole Depth m 200
Rotation Torque Nm 4500-6500
Rotation Speed rpm 0-90
Drill pipe diameter mm 76/89/102/114
Drill pipe length mm 3000
Max. Feed Speed M/min 18
Max. Lifting Speed M/min 5-12
Feed Stroke mm 3400
Max.Lifting Force Ton 14
Lifting force of Main Winch(Optional) T 4
Lifting force of Hoist Kgs 1500
Lifting Height of Tool Winch m 6
Diesel Engine type YUCHAI
Electrical System Volt 24
Rated Horse power Kw 77
Compressor required
Compressor type Rotary Screw/Movable
Pressure Required Mpa 1.5-2.5
Air consumption m³/min 15-30
Mud Pump(Optional)
Type Hydraulic
Model BW450
Stroke mm 100
Displacement L/min 450
Discharge pressure(Mpa) Mpa 5
Suction Tube Diameter mm 85
Discharge Pipe Diameter mm 51
Foam Pump Optional
Net Weight Kgs 5400
Transportation dimension mm 3950*1700*2150
Ground Clearance mm 300


Hydraulic valve.jpg drilling rig engine.jpg       hydraulic pump.jpg
Famous Hydraulic Control Valve YUCHAI 70KW Engine High power hydraulic pump
stronge structure.jpg RUBBER CRAWLER.jpg     hydraulic winch.jpg
High Hydraulic Support Leg Heavy Duty Rubber Crawler 1.5Ton Hydraulic Tool Winch


drilling rig.jpg

borehole drilling rig.jpg drilling rig loading.jpg water drilling rig.jpg


200m Depth Water Well Drilling Rig Crawler Rotary Portable Diesel Rock 15
