Multifunction mud drilling Top Drive Water Well Drilling Rig

Multifunction mud drilling Top Drive Water Well Drilling Rig
Multifunction mud drilling Top Drive Water Well Drilling Rig
Multifunction mud drilling Top Drive Water Well Drilling Rig Multifunction mud drilling Top Drive Water Well Drilling Rig Multifunction mud drilling Top Drive Water Well Drilling Rig Multifunction mud drilling Top Drive Water Well Drilling Rig

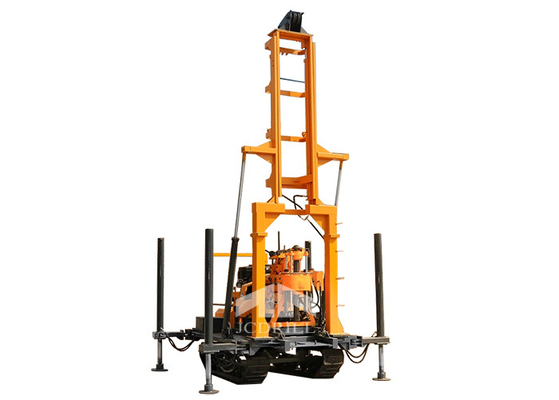

Large Image :  Multifunction mud drilling Top Drive Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO 9001:2008
Model Number: JXY180L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD9990
Packaging Details: drilling rig in nude package,spare parts in standard export wooden box
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 2000 sets per year

Multifunction mud drilling Top Drive Water Well Drilling Rig

Description
Type: Rotary Drilling Rig Power: 13.2Kw
Warranty: 1 Year Drilling Depth: 180m
Drilling Diameter: 75-220mm Dimension(l*w*h): 4200*1980*2150MM
Weight: 3900KG Color: Yellow
Application: Drilling Well Name: Skid Mounted Water Well Drilling Rig

Multifunction mud drilling Top Drive Water Well Drilling Rig

>> Introduction

XYY-L Series crawler mounted diamond core drilling rig is a kind of core drill rig driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

>> Characteristic

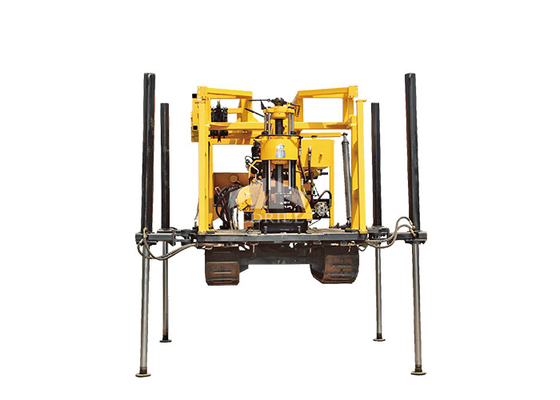

Multifunction mud drilling Top Drive Water Well Drilling Rig 0

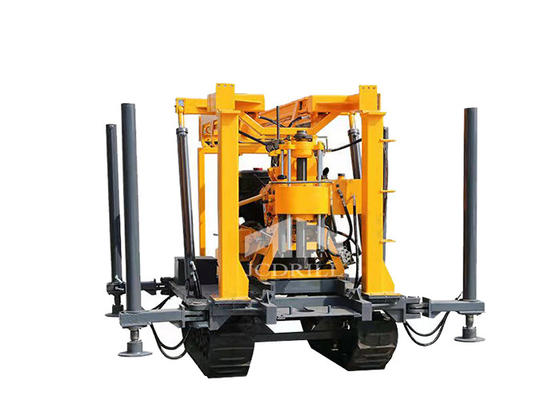

Multifunction mud drilling Top Drive Water Well Drilling Rig 1

>> Specification

Main machine technical parameter JXY130L JXY180L JXY200L
Drilling depth(m) 130m 180m 200m
Drilling hole diameter 220 220 325
End Hole Diameter(mm) 75 75 75
Drill Rod diameter(mm) 42, 60 42, 60 42, 50, 60
Drill Angle 90 90 90
Weight engine(kg) 2885 3900 3990
Machine Dimension(mm) 4200*1980*2150 4200*1980*2150 4200*1980*2150
Power
Matching engine power(KW) 13.2 13.2 15
Spindle
Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557
Stroke(mm) 450 450 450
Hoist
Single rope lift force(kg) 1800 2100 2500
Single rope lift speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope diameter(mm) 9.3 9.3 12.5
Rope capacity(m) 27 27 35
Drill Mast
Rated load (Ton) 18 18 18
Effective height(m) 6.5 6.5 6.5
Mud Pump
Flow(L/MIN) 160 160 160
Max. pressure(Mpa) 1.3 1.3 1.3
Back and forth times/min 165 165 165
Inlet hose dia.(mm) 51 51 51
Outlet hose dia.(mm) 32 32 32
Crawler Chassis 20° 20° 20°
Crawler Size 10Km/h 10Km/h 10Km/h
Climbing angle 1300 1300 1300
Moving Speed(Km/h) 18 18 18
Hydraulic Landing leg valid height 6.5 6.5 6.5

>>Our Service

Multifunction mud drilling Top Drive Water Well Drilling Rig 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.







Multifunction mud drilling Top Drive Water Well Drilling Rig 3

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
