Product Details:
|
| After-sale Service: | Provided | Warranty: | One Year |
|---|---|---|---|
| Drilling Depth: | 400m | Drilling Diameter: | 90-450mm |
| Drill Bit Type: | DTH&Drag Bit | Drilling Method: | Rotary&Impactor |
| Type: | Crawler Mounted | Transport Package: | Nude Packing |
| Dimension: | 5760*1850*2440mm | Condition: | New |
| Weight: | 8500kg | Usage: | Water Well Drilling |
| Engine Brand: | Yuchai | Engine: | Diesel Engine |
| Power(Kw): | 92Kw | Drilling Rod: | 89, 102, 114mm |
| Rotation Torque: | 4000-8000 | Feed Stroke: | 6600mm |

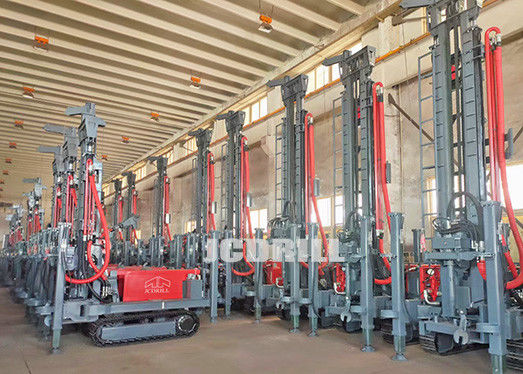

400m High quality hydraulic rotation water well drilling rig machine for sale
>> Introduction
CWD400T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CWD400T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CWD400T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
>> Characteristic
>> The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 70-140 stepless adjustment and the rotary torque is 4000-8000Nm.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> Competitive in price, low cost of maintain.
>> Specification
| Specification | Unit | CWD400T |
| Geology drilled | All kind | |
| Drilling Type | DTH&MUD | |
| Drill system and operation | Hydraulic | |
| Hole Diameter | mm | Φ90—Φ450 |
| Hole Depth | m | 400 |
| Rotation Torque | Nm | 4000-8000 |
| Rotatin Speed | rpm | 70-140 |
| Drill pipe diameter | mm | 89/102/114 |
| Drill pipe length | mm | 3000/4500/6000 |
| Max.Feed Speed | M/min | 60 |
| Max.lifting Speed | M/min | 30 |
| Feed Stroke | mm | 6600 |
| Max.Pull back Capacity | T | 24 |
| lifting force of Winch | T | 1.5 |
| Engine | ||
| Diesel Engine type | 6 Cylinder,water cooling | |
| Diesel Engine Brand | YUCHAI | |
| Rated Horse power | Kw | 92 |
| Compressor required (Optional) | ||
| Pressure Required | Mpa | 15-30 |
| Air consumption | m³/min | 1.5-2.5 |
| Mud Pump(Optional/Separate) | ||
| Model | BW450 | |
| Displacement | L/Min | 450 |
| Discharge pressure(Mpa) | Mpa | 2 |
| Dimension | ||
| Net Weight | T | 8.5 |
| Transportation dimension | mm | 5760*1850*2440 |
| Work Dimension | mm | 3940*2890*9430 |
| Ground Clearance | mm | 305 |
>> Package & Delivery
|
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours. |
>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress. |
>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
|
