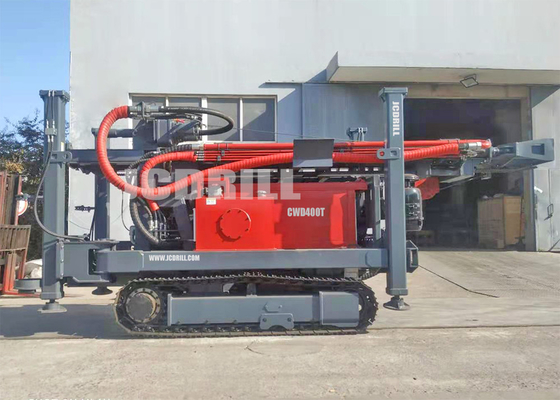

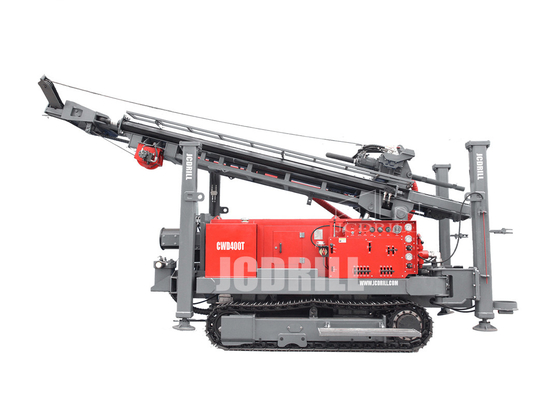

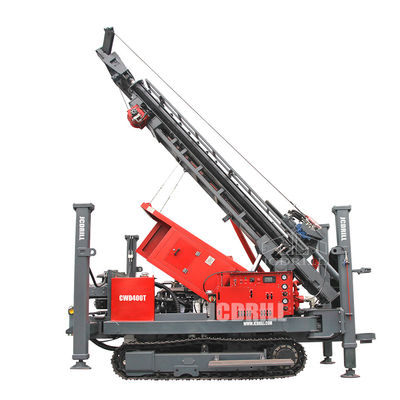

400m Crawler Mounted Deep Water Well Drilling Rig Machine

400m Crawler Mounted Deep Water Well Drilling Rig Machine
400m Crawler Mounted Deep Water Well Drilling Rig Machine
400m Crawler Mounted Deep Water Well Drilling Rig Machine 400m Crawler Mounted Deep Water Well Drilling Rig Machine 400m Crawler Mounted Deep Water Well Drilling Rig Machine 400m Crawler Mounted Deep Water Well Drilling Rig Machine 400m Crawler Mounted Deep Water Well Drilling Rig Machine

Large Image :  400m Crawler Mounted Deep Water Well Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: CWD400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 40HQ
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets/year

400m Crawler Mounted Deep Water Well Drilling Rig Machine

Description
Hole Diameter: 90-450mm Hole Depth: 400m
Rotation Torque: 4000-8000Nm Rotation Speed: 70-140rpm
Drill Pipe Diameter: 76/89/102/114mm Drill Pipe Length: 3000/4500/6000mm

400m Crawler Mounted Deep Water Well Drilling Rig Machine



>> Introduction

CWD400T Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

400m Crawler Mounted Deep Water Well Drilling Rig Machine 0

CWD400T Crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

CWD400T deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

2 water well drilling rigs.jpg

>> Characteristic

>> The drilling rig can use air DTH Hammer drilling and mud drilling. >> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

>> The power of drilling rig comes from a Yuchai engine,92kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head,have two gear,rotation speed is 70-140 stepless adjustment and the rotary torque is 4000-8000Nm.

>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.

>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> Competitive in price, low cost of maintain.

3 drilling rig.jpg4 borewell drilling rig.jpg

>> Specification

Specification Unit CWD400T
Geology drilled All kind
Drilling Type DTH & MUD
Drill system and operation Hydraulic
Hole Diameter mm φ90-φ450
Hole Depth m 400
Rotation Torque Nm 4000-8000
Rotation Speed rpm 70-140
Drill pipe diameter mm 89/102/114
Drill pipe length mm 3000/4500/6000
Max. Feed Speed M/min 60
Max. Lifting Speed M/min 30
Feed Stroke mm 6600
Max.Pull back Capacity T 24
Lifting force of Winch T 1.5
Engine
Diesel Engine type 6 Cylinder,water cooling
Diesel Engine Brand YUCHAI
Rated Horse power Kw 92
Compressor required(Optional)
Pressure Required Mpa 15-30
Air consumption m³/min 1.5-2.5
Mud Pump(Optional/Seperate)
Model BW450
Displacement L/min 450
Discharge pressure(Mpa) Mpa 2

Dimension

Net Weight T 8.5
Transportation dimension mm 5760*1850*2440
Work Dimension mm 3940*2890*9430
Ground Clearance mm 305

>> Package & Delivery

5 drilling rig shipment.jpg

>> Our Service

6 crawler drilling rig.jpg

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> Overseas Service&Project

7 hydraulic drilling rig.jpg

8 drilling rigs.jpg


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.









>> Certification


>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
